Description
About this Product

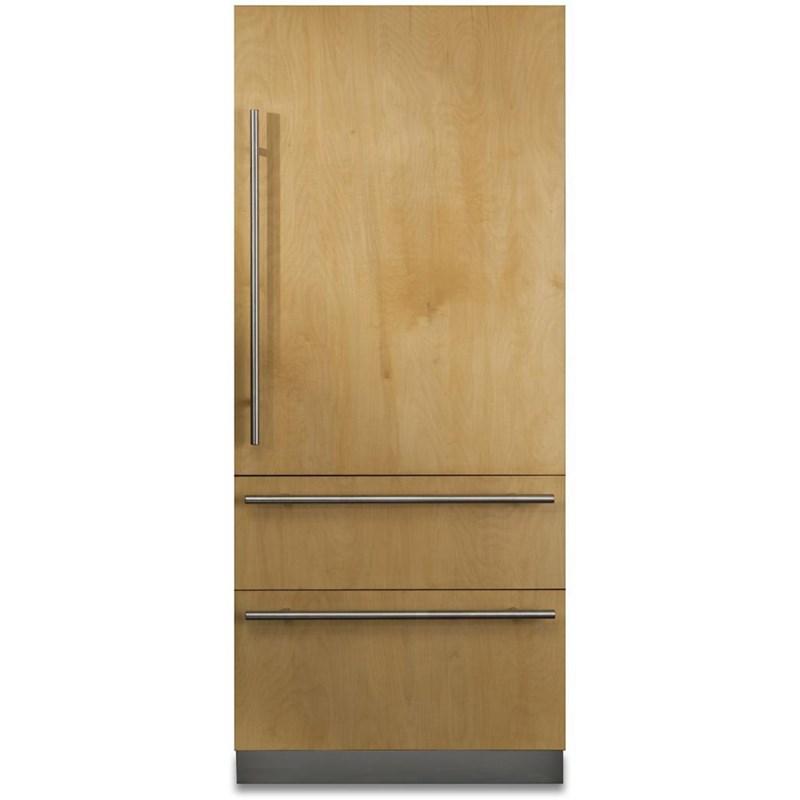

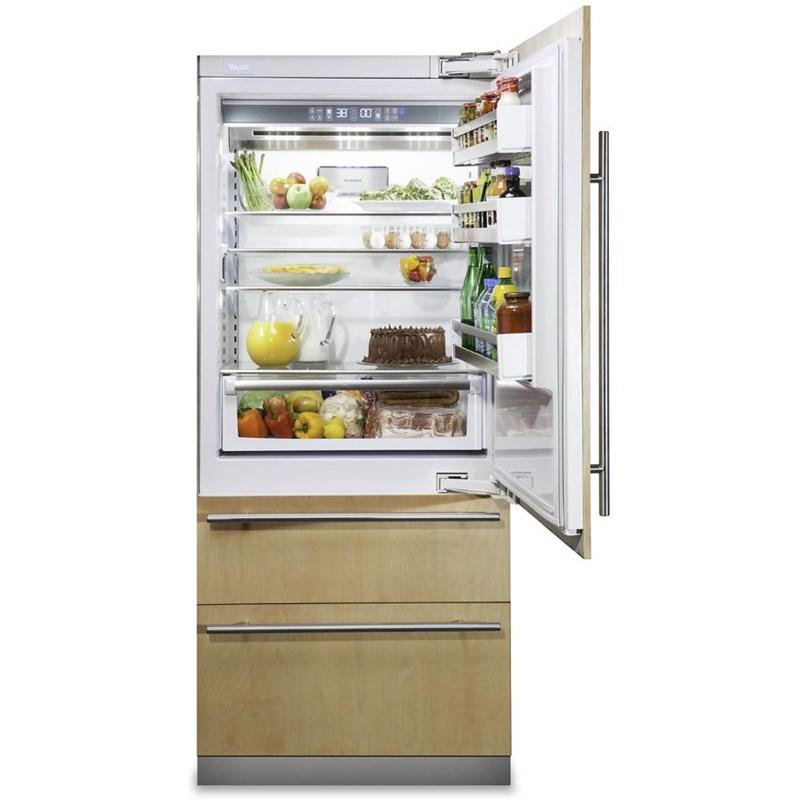

This 36-inch wide Viking fully integrated, panel ready bottom-freezer refrigerator features digital controls, BlueZone® Fresh Preservation, Spillproof™ shelves and a total capacity of 19.95 cu.ft. (Panel kit sold separately).
Features

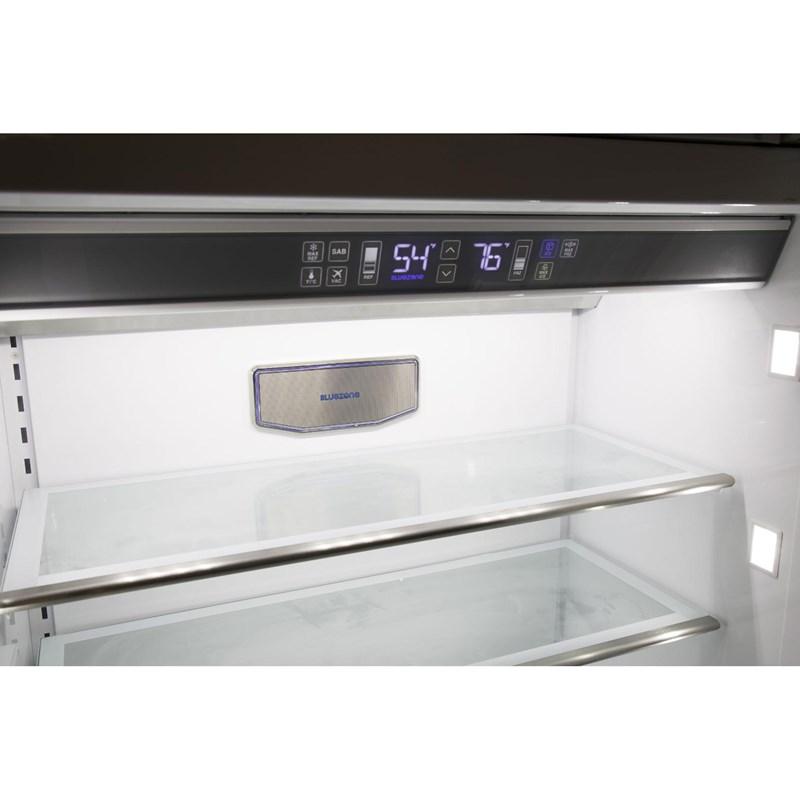

- DIGITAL CONTROLS — Numerous settings provide ultimate performance: max refrigerator, max freezer, max ice, sabbath mode, vacation mode.

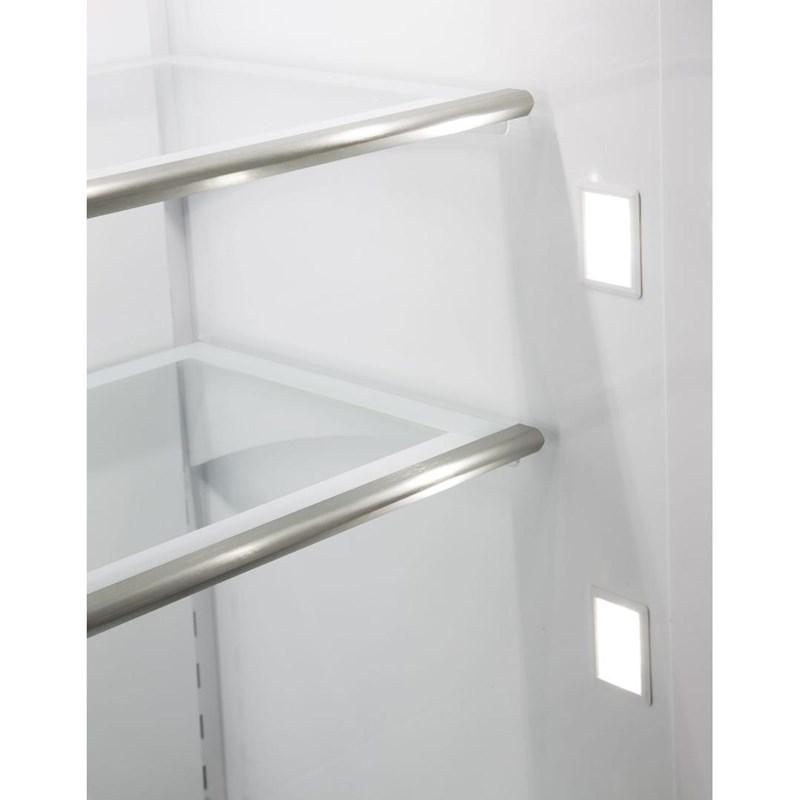

- SPILLPROOF PLUS™ SHELVES — Spillproof Plus™ Shelves with Nano technology create an invisible barrier to contain spills.
- BLUEZONE® FRESH PRESERVATION — Best available technology for food preservation and odor control. Removes harmful ethylene gas.
- FREEZER DRAWERS — Two separate freezer drawers with large capacity ice production.
- PROCHILL™ TEMPERATURE MANAGEMENT — ProChill™ Temperature Management System with variable speed DC Overdrive™ compressor. Single compressor system includes the quietest compressor available. Electronic controls provide precise temperature management with digital readout.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Energy Guide (en)
Videos
VIKING 7 SERIES REFRIGERATION INSTALLATION
Specifications
| Manufacturer Color | Panel Ready | Door Hinge | Right | Color | Panel Ready |
| Series Name | 7 Series | Installation Type | Built-In | Refrigerator Type | Bottom Freezer |
| Counter-Depth | N | Interior Light | Y | Frost Free | Y |
| Digital Display | Y | Gallon Door | Y | Crisper Drawers | Y |
| Weight | 256.28 kg | Additional Freezer Information | Two Separate Freezer Drawers | Sabbath Mode | Y |
| Energy Star Certified | Y | Water System | Interior | Ice System | Interior |
| Filtration | Y | Freezer | 6.35 cu. ft. | Refrigerator | 13.6 cu. ft. |
| Total | 19.95 cu. ft. | Depth (Without Handles) | 62.9 cm | Class Width | 35" to 37.9" |
| Width | 91.5 cm | Height (With Hinge) | 215.7 cm | Class Height | 70" and More |

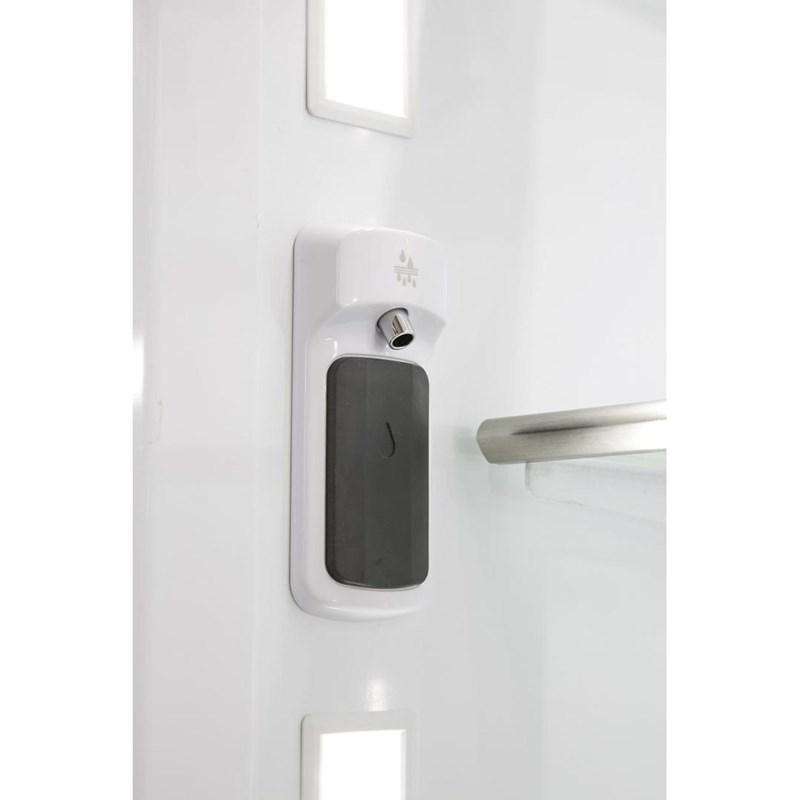

| Technologies Spillproof Plus™ Shelves | Feather Touch™ Internal Water Dispenser | Bluezone® Fresh Preservation Technology | Pro Chill™ Temperature Management System | Overdrive™ Compressors | |||||
| Dispenser Features Fully Sealed Internal Water Dispensing with Filtered Water | Ice Maker in Freezer | |||||
| Additional Dimensions Overall Height (from Bottom): 83-15/16" (213.2 cm) Min. to 84-3/4" (215.7 cm) Max | Overall Depth from Rear: | To Front Edge Kickplate: 22-1/2" (57.2 cm) | To Front of Door Panel: 24" (61.0 cm) | Cutout Width: 36" (91.4 cm) | Cutout Height: 84" (213.4 cm) Min to 85-3/16" (216.3 cm) Max | Cutout Depth: 25" (63.5 cm) Min. | |||||
| Warranty Two-Year Full – Complete Product | Six-Year Full – Sealed Refrigeration System | Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items | Twelve-Year Limited – Sealed Refrigeration System (Includes Compressor, Condenser, Dryer/Strainer, Evaporator, and Connecting Tubing) | |||||
| Optional RWFDISP: Replacement Water Filter | RBZB7: BlueZone Replacement Bulb | |||||
| Information 115 V | 60 Hz | 15 A | |||||
Accessories
• RWFDISP: Replacement Water Filter
• RBZB7: BlueZone Replacement Bulb
• RBZB7: BlueZone Replacement Bulb
Door Hinge: Right
