Description
About this Product

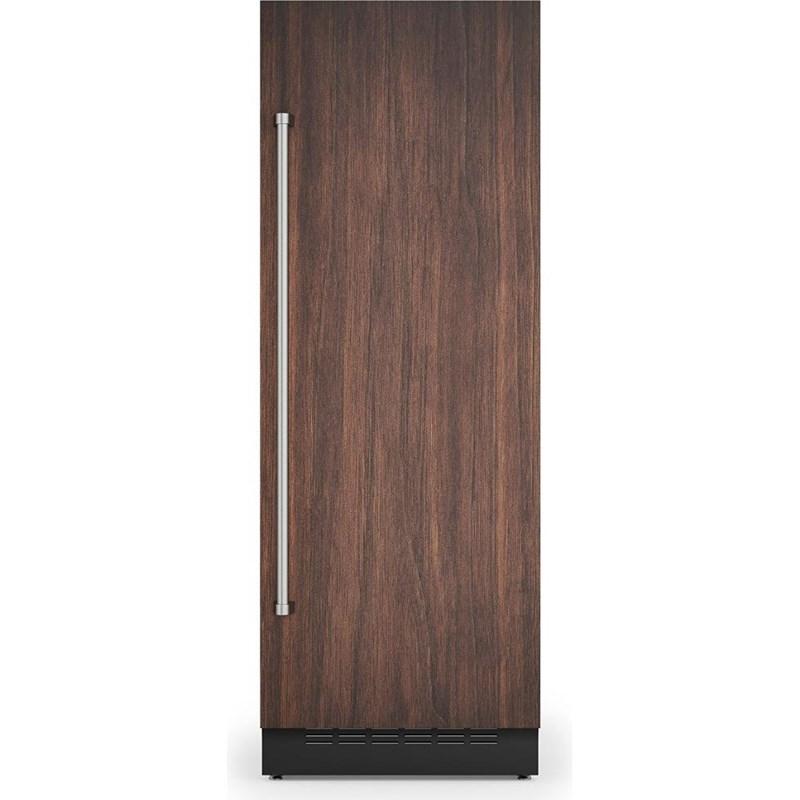

Viking 30-inch Fully Integrated All Freezer with right hinge. It features Extremely quiet compressor system with electronic controls, a Dual size ice maker and Special Modes including Max Freezer, Max Ice, Bottle Chiller, Sabbath, Vacation.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
Uniform air circulation maintains consistent temperatures | Ensures food stored in different compartments gets equal treatment | Maintains temperature to within 1ºF to keep food fresher longer | Extremely quiet compressor system with electronic controls | Compressor located on the bottom allows for full integration of the product | Temperature Range: 9°F (-13°C) to -9°F (-23°C) | Innovative touch control maintains consistent temperature in the compartments | Easy user interface allows for personalization of settings | Special Modes include Max Freezer, Max Ice, Bottle Chiller, Sabbath, Vacation | Side and top mounted energy-efficient LED lighting enhances visibility | Patented Easy Lift Shelf Position System adds storage flexibility | Two adjustable glass shelves, four storage drawers, two adjustable door bins | Proprietary Fully Articulating Hinge has three-dimensional adjustability for a perfect fit in integrated installations | Hinge damper allows for smoothness when opening and closing door | Unit is custom panel ready to accept matching cabinetry panels or the Viking Professional and RVL Door Panel Kits
Specifications
| Depth (With Handles) | 60.96 cm | Width | 75.88 cm | Height (With Hinge) | 212.09 cm |
| Lighting | Y | Series Name | RVL Series | Color | Panel Ready |
| Door Hinge | Right | Style | Built-In | Total Capacity | 16.0 cu. ft. |
| Size Range | 16 Cu.Ft. and Below | Type | Upright | Manufacturer Color | Panel Ready |
| Ice Machine | Y | Ice and Water Dispenser | Interior Ice Maker | Sabbath Mode | Y |
| Weight | 175.09 kg | ||||
| Additional Dimensions Cutout Width: 30" (76.2 cm) | Cutout Height: 84" (91.5 cm) min. to 84-1/16" (213.5 cm) max. | Cutout Depth: 24" (61.0 cm) plus panel thickness | |||||
| Additional Ice and Water Information Dual size ice maker | Easily switch between medium and large ice cubes | Max Ice Mode temporarily increase ice cube production for 24 hours | Water filter provides pure water for ice production | |||||
| Warranty 2-year full covers complete unit | 6-year full – sealed refrigeration system | 90-day full – cosmetic parts such as glass, painted items, and decorative items | 12-year limited – sealed refrigeration system | |||||
| Information 115 volt, 60 Hz, 15 amp dedicated circuit | Maximum Amp Usage 9.9 amps | 3-wire cord with grounded | 9 ft. 3-prong plug attached to product V | |||||
Door Hinge: Right
