Description
About this Product

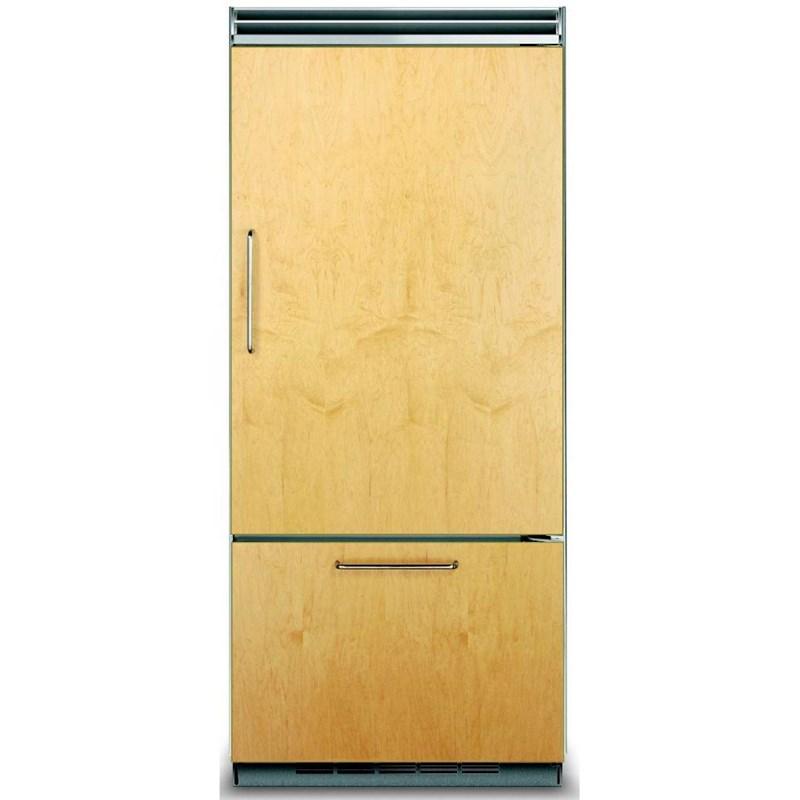

This 36-inch wide panel ready Viking Professional bottom freezer refrigerator features ProChill™ temperature management, filter-free freshness, Adjustable Humidity Zone™ drawers and a 20.4 cu.ft. capacity. Image is shown with panel kit (Sold separately).
Features

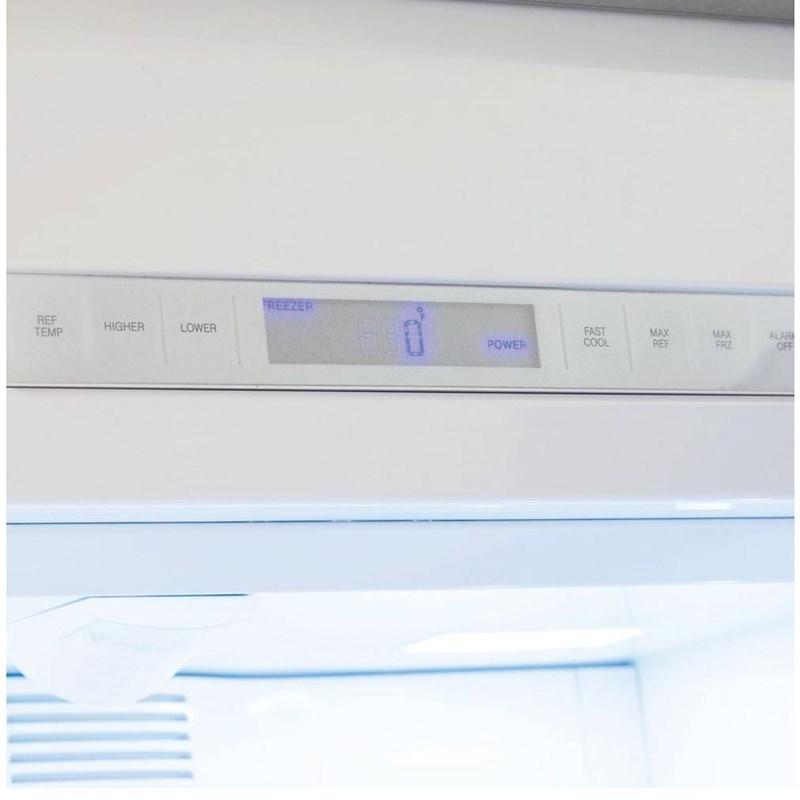

- PROCHILL™ TEMPERATURE MANAGEMENT — ProChill™ Temperature Management System with variable speed DC Overdrive™ compressor. Single compressor system includes the quietest compressor available. Electronic controls provide precise temperature management with digital readout.

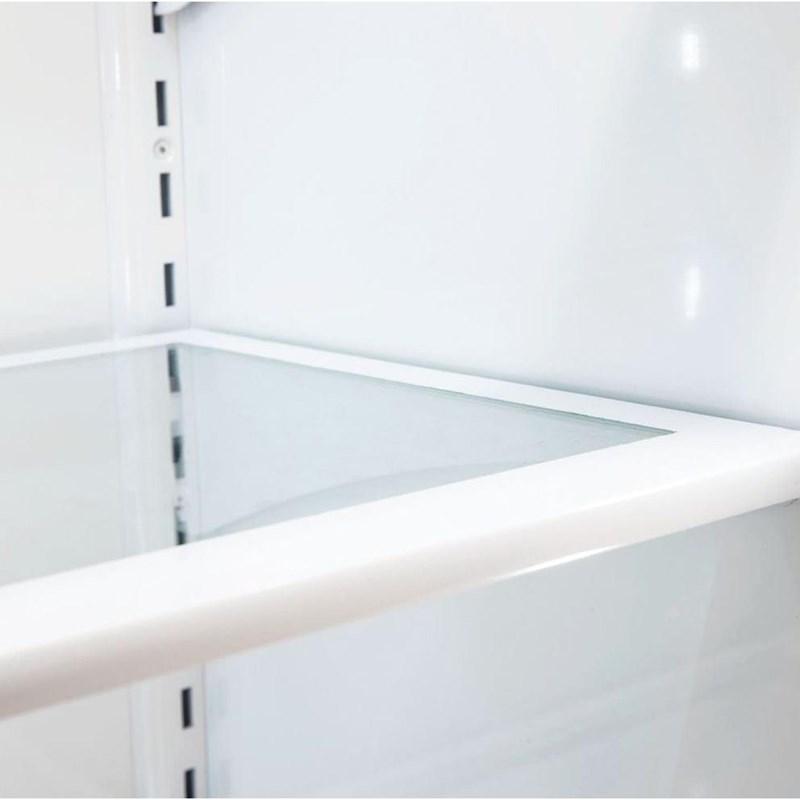

- SPILL CONTROL TECHNOLOGY — Spillproof Plus™ Shelves with Nano technology create an invisible barrier to contain spills and maximize usable space. 3/8" thick tempered glass shelves provide industry leading durability.

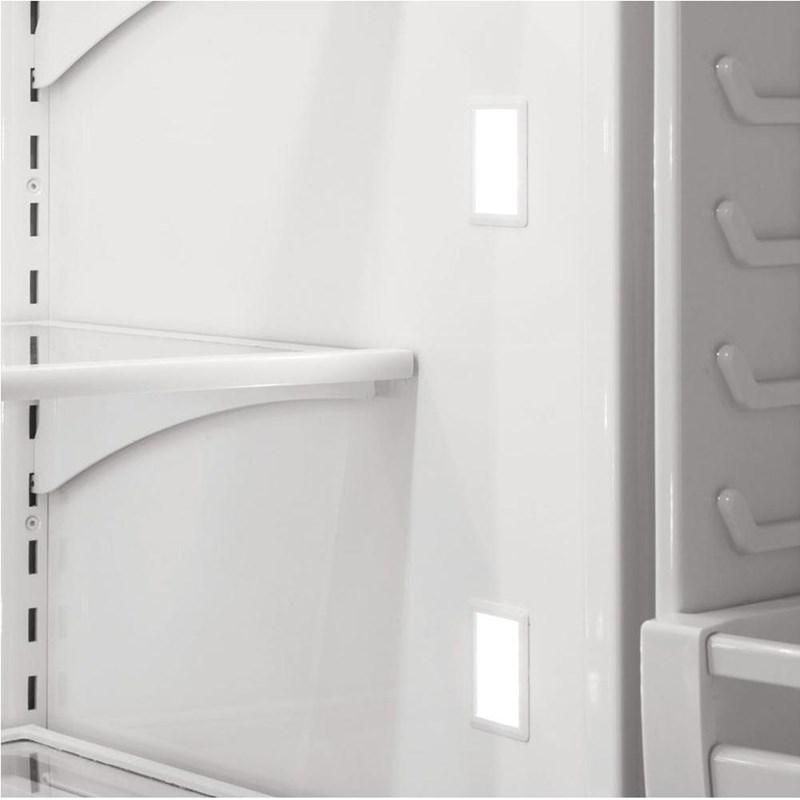

- LED LIGHTING — Bright, energy efficient LED lighting from top and sidewalls.

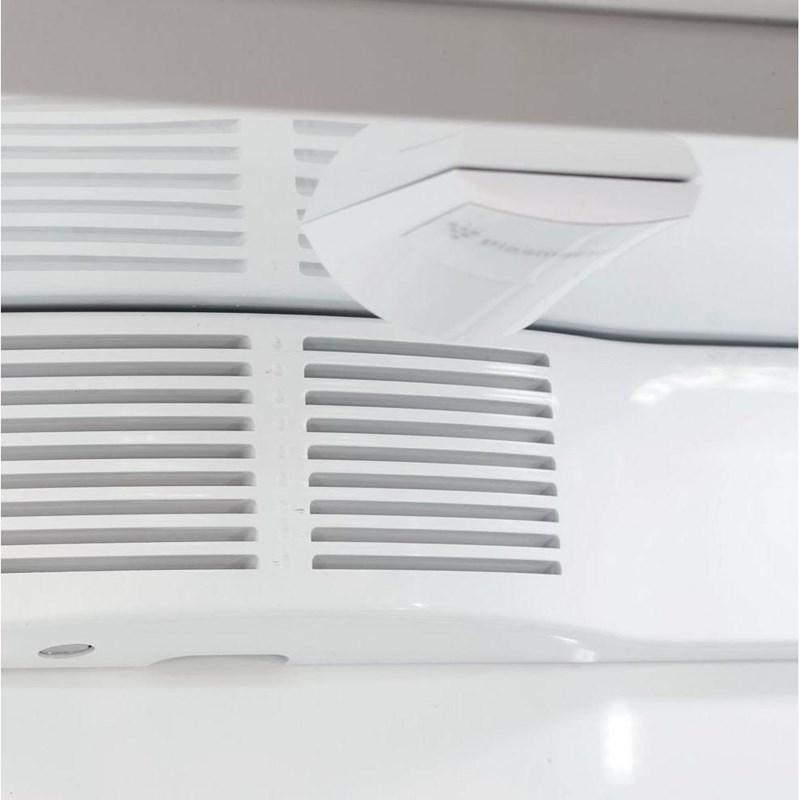

- FILTER-FREE FRESHNESS — The Plasmacluster™ Ion Air Purifier uses ions to eliminate airbourne bacteria and mold spores, remove odors and enhance food preservation. Plasmacluster™ is a trademark of Sharp Corporation.
- METAL DOOR BINS — Metal door bins provide enduring performance to securely store heavy items.
- ROBUST HINGES — Robust DuraHinge™ allows optimal door rotation and maximum durability.
- ADJUSTABLE HUMIDITY ZONE™ DRAWERS — Produce the freshest leafy vegetables and fruits in moisture-adjustable drawer(s) with soft-close feature.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Energy Guide (en)
Specifications
| Installation Type | Built-In | Door Hinge | Right | Series Name | 5 Series |
| Manufacturer Color | Panel Ready | Color | Panel Ready | Refrigerator Type | Bottom Freezer |
| Counter-Depth | N | Total | 20.4 cu. ft. | Refrigerator | 15.3 cu. ft. |
| Freezer | 5.1 cu. ft. | Door Alarm | Y | Digital Display | Y |
| Frost Free | Y | Interior Light | Y | Crisper Drawers | Y |
| Deli Drawer/Meat | Y | Gallon Door | Y | Ice System | Interior |
| Dispenser Features | Factory-Installed Automatic Ice Maker | Water System | None | Width | 91.5 cm |
| Height (With Hinge) | 210.2 cm | Class Width | 35" to 37.9" | Depth (Without Handles) | 58.9 cm |
| Class Height | 70" and More | Weight | 226.8 kg | ||
| Technologies Variable Speed DC Overdrive™ Compressor | Odor Eliminator™ Evaporator | Super Clog Resistant™ Condenser | Plasmacluster™ Ion Air Purifier | Spillproof Plus™ Shelves With Nano Technology | Humidity Zone™ Drawers with Soft-Close Slides | |||||
| Additional Freezer Information Full-Extension Main Freezer Compartment Pulls Out Like a Drawer for Easy Access to Bulky Frozen Foods | Opens Quietly and Easily, With Ball-bearing Rollers which Glide on A Steel Track | Positive Self-closing Feature Ensures A Good Seal | Upper Freezer Basket Slides Independently of Main Freezer Compartment; Ideal for Fragile or Frequently Used Items | Adaptive Defrost Controls the Timing of the Defrost Periods, Instead of an Electromechanical Defrost Timer | Extends to 96 Hours – Improves Food Storage Because the Unit Defrosts Less Often | |||||
| Information 115 V | 60 Hz | 15 A | |||||
| Additional Dimensions Overall Height (From Bottom): 82-3/4" (210.2 cm) Min. to 84-1/16" (213.5 cm) Max. | Overall Depth (From Rear): To Front Edge Of Side Trim: 23-3/16" (58.9 cm), to Front of Top Grille: 24" (61.0 Cm) | Cutout Width: 36" (91.5 cm) | Cutout Height: 82-7/8" (210.5 cm) Min. To 84-1/16" (213.5 cm) Max. | Cutout Depth: 24" (61.0 cm) Min.* (*note: Custom Panel Models Fit Flush In 25" (63.5 cm) Deep Cabinet Openings. They Can Be Installed in Standard 24" (61.0 cm) Deep Openings. The Door Faces and Top Grille Will Protrude 3/4" (1.9 cm) Into The Room.) | |||||
| Warranty Two-Year Full – Complete Product | Six-Year Full – Sealed Refrigeration System | Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items | Twelve-Year Limited – Sealed Refrigeration System (Includes Compressor, Condenser, Dryer/Strainer, Evaporator, and Connecting Tubing) | |||||
| Optional PHK28 – Professional SS handle kit (1 piece) | |||||
Accessories
PHK28 – Professional SS handle kit (1 piece)
Door Hinge: Right
