Description
About this Product

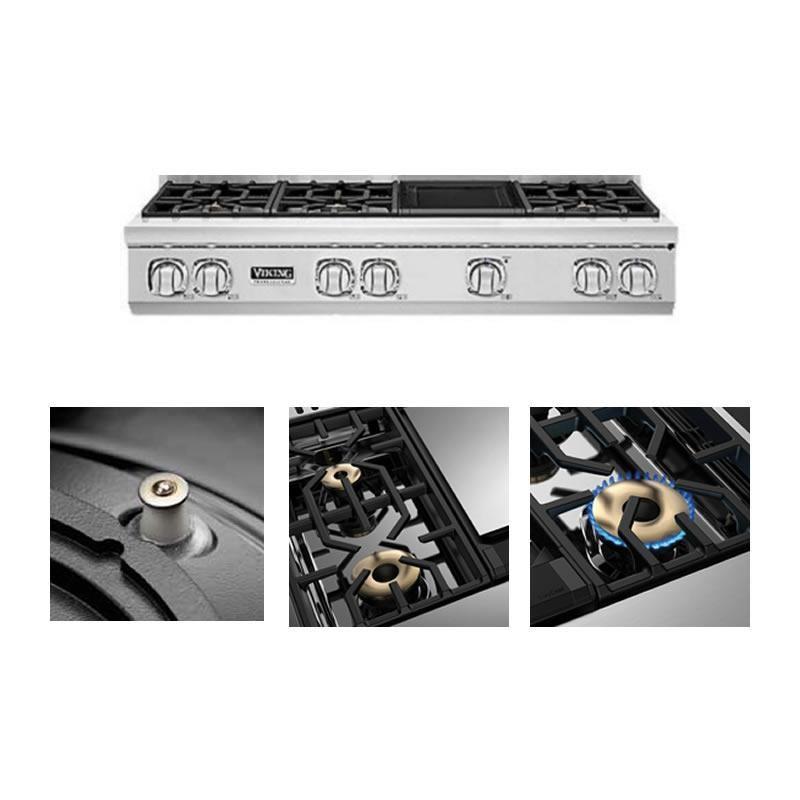

Viking Professional 48" 7 Series gas rangetop. The rangetops boast unrivaled heat distribution with Elevation Burners™ that reach up to 23,000 BTUs while still achieving a low, even simmer thanks to the VariSimmer™ setting. Adapted from the Viking Commercial product line, these rangetops allow for kitchen design flexibility without sacrificing power and performance.
Features

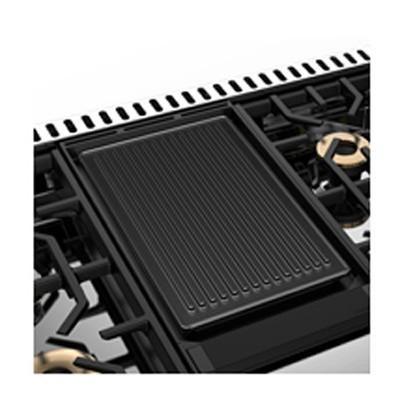

- VICHROME™ GRIDDLE —
Inspired by the Commercial plancha, the ViChrome™ Griddle interchanges with reversible grill/griddle accessory providing versatility for griddling and defrosting.

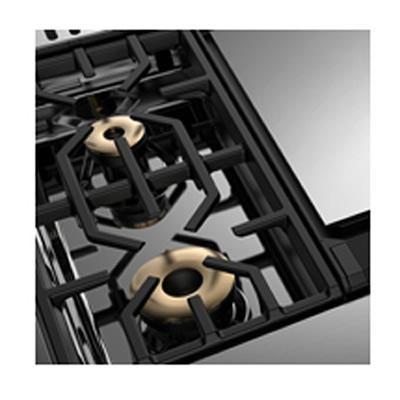

- ELEVATION™ BURNERS — Elevation™ Burners with brass flame ports boast 23,000 BTUs across the front of all width configurations, with multiple 15,000 BTUs and one 8,000 BTU burner across the rear.
- EASY-TO-CLEAN SURFACE — Exclusive seamless, heavy gauge porcelain burner pan with elevated flame ports prevent spillovers from baking on, making cleanup easy.
- SOFTLIT™ LED LIGHTS — SoftLit™ LED Lights accent the control panel and illuminate knobs.
- SURESPARK™ IGNITION SYSTEM — The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
- VARISIMMER™ SETTING — he VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Elevation™ Burners with brass flame ports | SureSpark™ Ignition System | SoftLit™ LED Lights | VariSimmer™ Setting on ALL burners | ViChrome™ Griddle
Specifications
| Burners/Elements | 7 | Burner/Element Size | 12" Griddle | Surface Features | Seamless, Heavy Gauge Porcelain Burner Pan |
| Burners | Sealed | Other | Griddle | Sabbath Mode | N |
| Height | 22.9 cm | Width | 121.6 cm | Depth | 76.2 cm |
| Class Width | 48" or More | Fuel Type | Natural Gas | Type | Rangetop |
| Series Name | Series 7 | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Weight | 109.77 kg | ||||
| Power Output (3x) Front 23,000 BTU (5.9 kW) | (2x) Rear 15,000 BTU (4.0 kW) | (1x) Rear 8,000 BTU (2.3 kW) | (1) Griddle 13,500 BTU (4.0 kW) | |||||
| Information 120 V | |||||
| Additional Dimensions Cutout Width: 48" (121.9 cm) | Cutout Height: 7-5/8" (19.4 cm) | Cutout Depth min.: 24" (61.0 cm), max. 25-1/4" (64.1 cm) | |||||
| Warranty Two-year full – complete product | Ninety-day full – cosmetic parts such as glass, painted items, and decorative items | Five-year limited - gas surface burners | |||||
