Description
About this Product

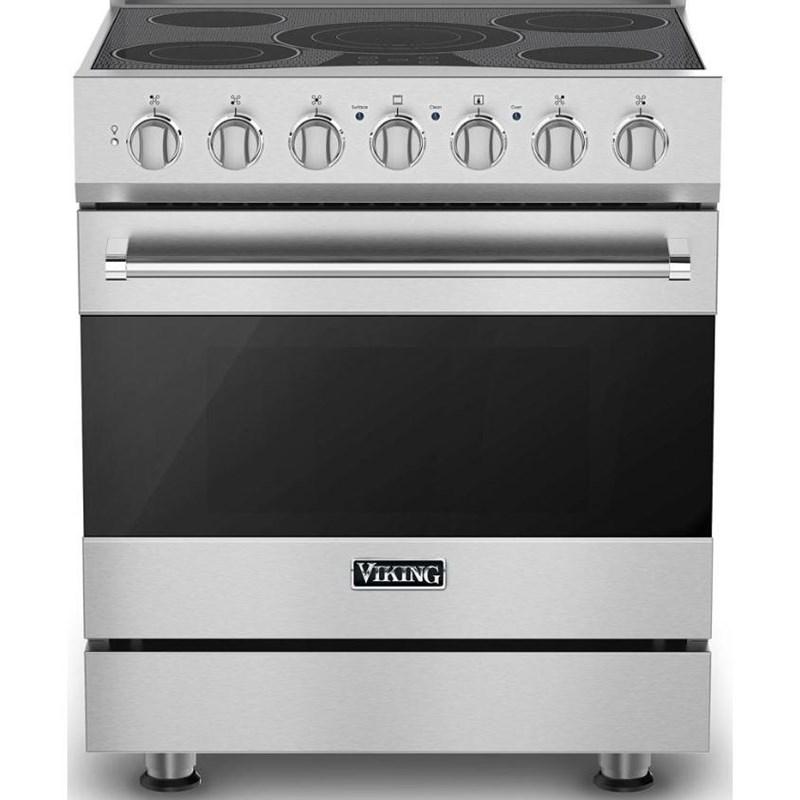

This 30-inch wide Viking electric range features Vari-Speed Dual Flow™ convection, glass ceramic surface, self-cleaning oven and a 4.7 cu.ft. oven capacity.
Features
- GLASS CERAMIC SURFACE — Strong, wear resistant glass ceramic surface provides an easy-to-clean, continuous work surface and stainless steel frame.
- TRUGLIDE™ OVEN RACKS — This large capacity oven has six rack positions and ships standard with TruGlide oven racks.
- VARI-SPEED DUAL FLOW™ CONVECTION — Maximize air flow and fluffiness with Vari-Speed Dual Flow™ Convection system. Two-speed convection system capable of turning the fan in both directions. This combined with the largest convection fan blades in the industry provides maximum airflow.
- LARGE CAPACITY OVEN — Cook for everyone you know and still have leftovers with the largest capacity oven in the industry.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
One Heavy-duty Truglide Full Extension Oven Rack and Two Standard Racks | Concealed 10-pass Dual-bake Element | 10-pass Broiler With Heat Reflector | Strong, Wear-resistant Glass Ceramic Surface with Stainless Steel Frame | Durable Metal Die-cast Control Knobs with Childproof, Push-to-Turn Safety Feature
Specifications
| Capacity (cu. ft.) | 4.7 cu.ft | Number of Ovens | Single | Burners/Elements | 5 |
| Elements | Smoothtop | Self-Cleaning | Y | Oven Light | Y |
| Convection | Y | Height | 91.1 cm | Width | 75.9 cm |
| Depth (Without Handles) | 65.4 cm | Class Width | 30" | Depth (Including Handles) | 73.7 cm |
| Fuel Type | Electric | Installation Type | Freestanding | Manufacturer Color | Stainless Steel |
| Series Name | Series 3 | Color | Stainless Steel | Weight | 192.32 kg |
| Programs Bake | Convection Bake | Truconvec™ Convection Cook | Convection Roast | Hi Broil | Medium Broil | Low Broil | Convection Broil | Convection Dehydrate | Convection Defrost | |||||
| Burners/Elements Output Left Front Dual Element: 2,000 W | Left Rear Single Element: 1,200 W | Center Triple Element: 3,200 W | Right Front Single Element: 1,200 W | Right Rear Dual Element: 2,000 W | |||||
| Burner/Element Size Left Front Dual Element: 8 1/2" | Left Rear Single Element: 6 1/2" | Center Triple Element: 12" | Right Front Single Element: 6 1/2" | Right Rear Dual Element: 8 1/2" | |||||
| Information 240 V / 208 V | |||||
| Technologies Quickcook™ Surface Elements | Rapid Ready™ Preheat | Vari-speed Dual Flow™ Convection System | |||||
| Appliance Care Strong, Wear-Resistant Glass Ceramic Surface with Stainless Steel Frame Offers Excellent Cleanability | Durable Metal Die-Cast Control Knobs with Childproof, Push-to-Turn Safety Feature | Customer-Removable Knobs for Easy Cleaning | |||||
| Warranty One-Year Full – Complete Unit | Five-Year Limited – All Gas Burners, Electric Elements (Dual Fuel) | Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items | |||||
| Optional 6" High Backguard (RD301BG6SS) | High Shelf (RD301HS24SS) | Countertop Side Trim (RD24CSTSS) | Countertop Rear Trim (P30CRTSS) | Curb Base and Custom Curb Base Front (P30CBF4SS) | |||||
Accessories
• 6" High Backguard (RD301BG6SS)
• High Shelf (RD301HS24SS)
• Countertop Side Trim (RD24CSTSS)
• Countertop Rear Trim (P30CRTSS)
• Curb Base and Custom Curb Base Front (P30CBF4SS)
• High Shelf (RD301HS24SS)
• Countertop Side Trim (RD24CSTSS)
• Countertop Rear Trim (P30CRTSS)
• Curb Base and Custom Curb Base Front (P30CBF4SS)
