Description
About this Product

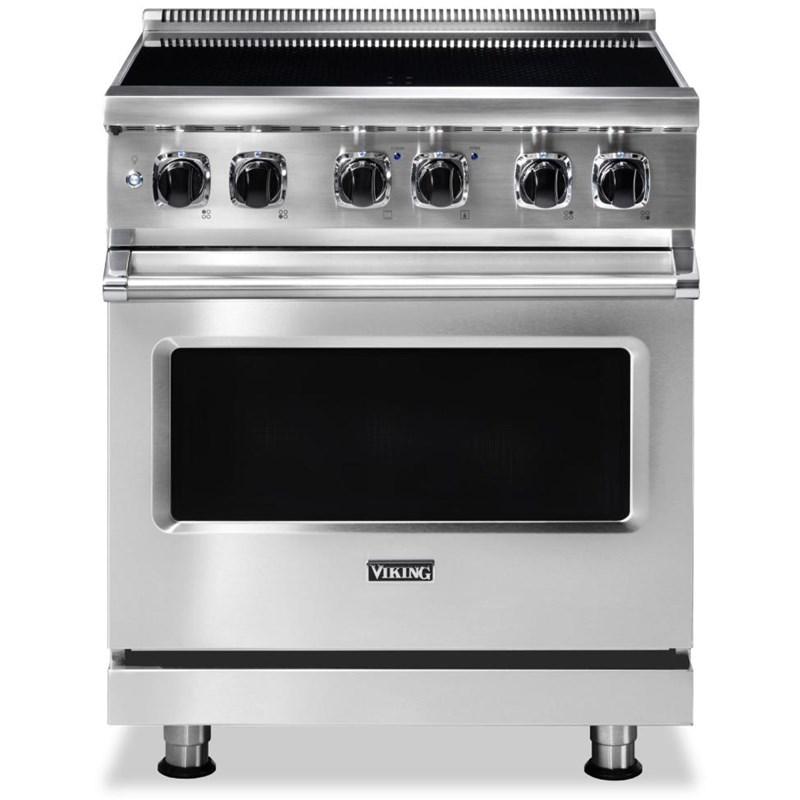

Viking 5 Series 30" Induction Range with MagneQuick™ Induction Elements that convert electricity into a magnetic field, which reacts with iron in your cookware and instantly transforms the pan into the heat source. Maximize airflow and fluffiness with Vari-Speed Dual Flow™ Convection System. Two-speed convection system capable of turning the fan in both directions. This combined with the largest convection fan blade in the industry provides maximum airflow.
Features
- MAGNEQUICK™ INDUCTION ELEMENTS — MagneQuick™ Induction Elements convert electricity into a magnetic field, which reacts with iron in your cookware and instantly transforms the pan into the heat source.
- VARI-SPEED DUAL FLOW™ — Maximize air flow and fluffiness with Vari-Speed Dual Flow™ Convection system. Two-speed convection system capable of turning the fan in both directions. This combined with the largest convection fan blades in the industry provides maximum airflow.

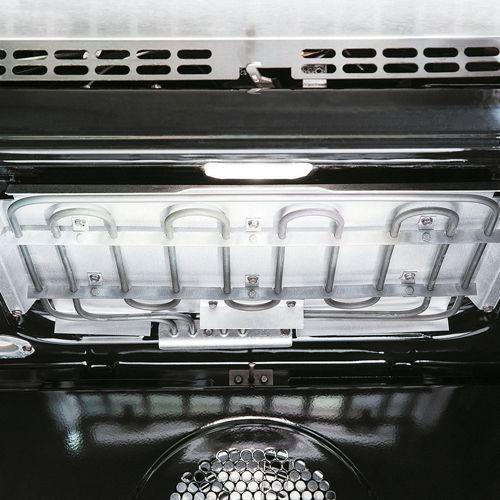

- CONCEALED BAKE ELEMENT — Get more control and less mess with the 10-pass concealed bake element. This dual concealed bake element provides finer temperature control and makes oven clean up easy.
- RAPID READY™ PREHEAT SYSTEM — Wait less and cook more with the Rapid Ready™ Preheat System. Quick preheat means less time for the user to wait for the oven to be ready to cook in.
- EXTRA LARGE CAPACITY OVEN — Cook for everyone you know and still have leftovers with the largest capacity oven in the industry.
- 10-PASS BROILER WITH HEAT REFLECTOR — Go from toasting to searing with the variety of settings available on the electric broiler with heat reflector. 10-Pass Broiler with Heat Reflector with HI, MED, and LOW settings provides intense searing heat for a variety of broiling applications.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights

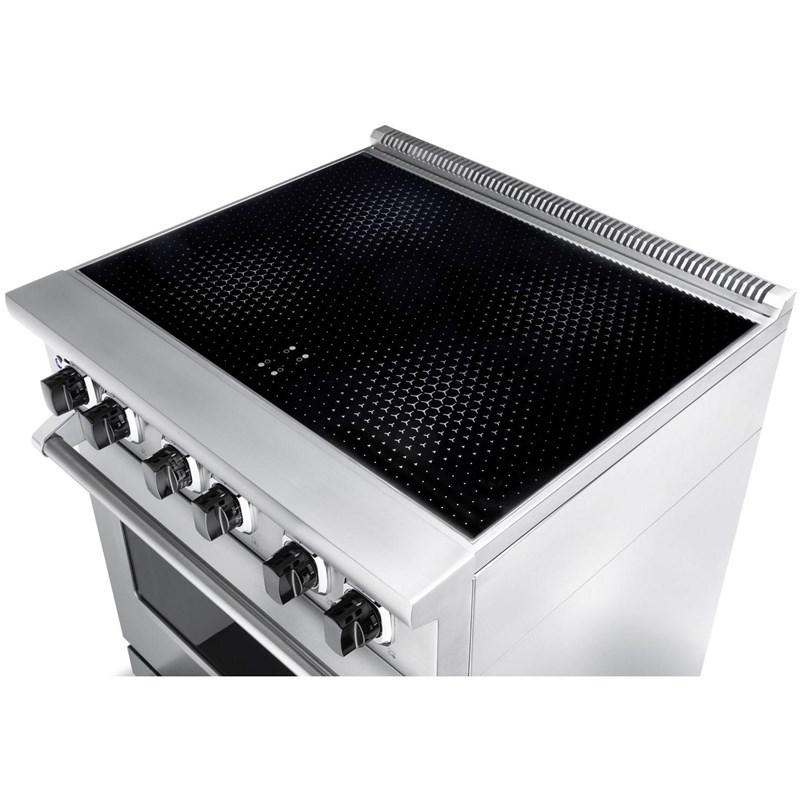

Power management induction system provides a boost of superior power on all elements for faster boil times | Simmer setting is perfect for gentle melting or keeping cooked food warm | Concealed 10-pass dual bake element provides precise temperature control | Large 10-pass broiler with heat reflector | Oven has six porcelain-coated rack positions and comes standard with three oven racks | Three strategically located oven lights provide maximum visibility | Surface graphics on strong, wear-resistant glass ceramic surface for excellent cleanability | Self-cleaning porcelain oven | Concealed 10-pass dual bake element makes for easy cleanup of the oven cavity
Specifications
| Class Width | 30" | Width | 75.88 cm | Depth (Without Handles) | 71.28 cm |
| Height | 91.12 cm | Oven Light | Y | Self-Cleaning | Y |
| Convection | Y | Elements | Induction | Burners/Elements | 4 |
| Burner/Element Size | 4 x large 9" induction elements | Burners/Elements Output | 4 x 3,700–2,300-watt induction elements | Included | Island Trim (shipped standard with 30' ranges) |
| Weight | 193.23 kg | Programs | High-performance cooking modes include bake, convection bake, TruConvec convection cooking, convection roast, broil, convection broil, convection dehydrate, and convection defrost | Number of Ovens | Single |
| Fuel Type | Electric - Induction | Series Name | 5 Series | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation Type | Freestanding | ||
| Additional Dimensions Oven Interior: Overall Width – 25-5/16" (64.6 cm), Height – 16-1/2" (41.9 cm), Depth – 19-1/2" (49.5 cm) | Overall Depth from Rear To end of side panel: 24 5/16" (61.8 cm) | Overall Depth from Rear To front of door: 25 3/4" (65.4 cm) | Overall Depth from Rear To end of door handle: 28 11/16" (72.9 cm) | |||||
| Technologies MagneQuick™ Induction Power Generators utilize magnetic energy for superior power, responsiveness, and efficiency | Heavy-duty BlackChrome™ knobs and square bezels shipped standard | Vari-Speed Dual Flow™ Convection System has the largest convection fan in the industry; the 8-1/2" fan works bi-directionally for maximum airflow and excellent cooking results | Rapid Ready™ Preheat provides one of the fastest preheat times, meaning less wait time for the oven to preheat | Gentle Close™ Door allows door to close slowly | SoftLit LED lights accent the control panel and illuminate knobs | |||||
| Optional | |||||
| Information 240-208VAC, 60 Hz electrical connection box on product, connect with locally supplied 3-wire, flexible cord or "pigtail" rated 40 amp 125-250VAC minimum. Cord must be agency approved for use with household electric ranges. | Maximum Amp Usage: 240V – 60 amps, 208V – 52 amps | |||||
| Warranty 2-year full – complete product | 90-day full – cosmetic parts such as glass, painted items and decorative items | 5-year limited – induction element components | |||||
| Capacity (cu. ft.) Overall Size: 4.7 cu. ft. | AHAM Standard*: 4.1 cu. ft. | |||||
