Description
About this Product

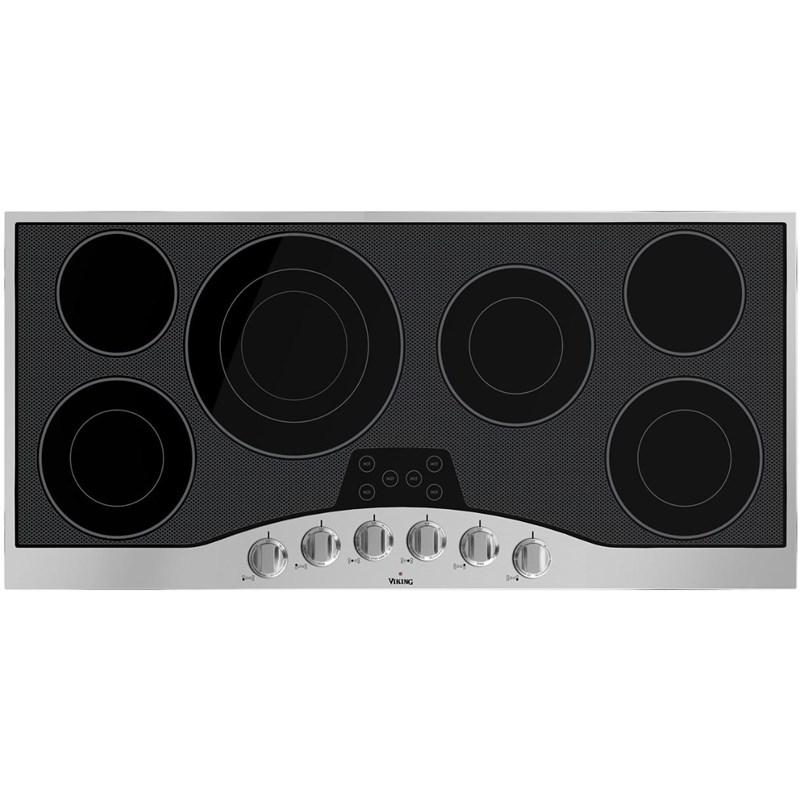

This 45-inch wide Viking electric cooktop features QuickCook™ surface elements, metal die-cast knobs and a glass-ceramic surface.
Features
- GLASS CERAMIC SURFACE — Durable, wear resistant glass ceramic surface and laser-etched graphics withstand the rigors of regular cleaning.
- QUICKCOOK™ SURFACE ELEMENTS — QuickCook™ Surface Infared Elements with ribbon technology reach full power in three seconds and provide fast technology with nearly all cookware.
- METAL DIE-CAST KNOBS — Keep everything under control with our childproof metal die-cast knobs. These removable, push-to-turn knobs provide safe, easy operation as well as cleanup.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
Durable Metal Die-Cast Knobs with Child-Proof, Push-to-Turn Safety Feature | Customer-Removable Knobs for Easy Cleaning | Overall/Burner Box Dimensions Designed to Fit the Majority of Similarly Sized Cooktop Cutouts
Specifications
| Elements | Smoothtop | Burners/Elements | 6 | Surface Features | Strong, Wear-Resistant Glass Ceramic Surface with Stainless Steel |
| Height | 11.4 cm | Width | 114.3 cm | Depth | 53.4 cm |
| Class Width | 45" | Fuel Type | Electric | Type | Built-In |
| Series Name | RVEC | Color | Stainless Steel | Manufacturer Color | Stainless Steel |
| Weight | 32 kg | ||||
| Power Output Left Front Dual Element: 2,000 W | Left Rear Single Elemen: 1,200 W | Left Center Triple Element: 3,200 W | Right Center Dual Element: 2,000 W | Right Front Dual Element: 2,000 W | Right Rear Single Element: 1,200 W | |||||
| Burner/Element Size Left Front Dual Element: 8 1/2" | Left Rear Single Elemen: 6 1/2" | Left Center Triple Element: 12" | Right Center Dual Element: 8 1/2" | Right Front Dual Element: 8 1/2" | Right Rear Single Element: 6 1/2" | |||||
| Information 240 V / 208 V | |||||
| Additional Dimensions Cutout Width: 43 1/8" (109.5 cm) Minimum, 44 1/8" (112.1 cm) Maximum | Cutout Height: 3 1/8" (7.9 cm) | Cutout Height with Conduit: 4 1/8" (10.5 cm) | Cutout Depth: 20" (50.8 cm) Minimum; 20 1/4" (51.4 cm) Maximum | |||||
| Technologies QuickCook™ Surface Elements | |||||
| Warranty One-Year Full – Complete Product | Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items | Five-Year Limited – Surface Elements | |||||
