Description
About this Product

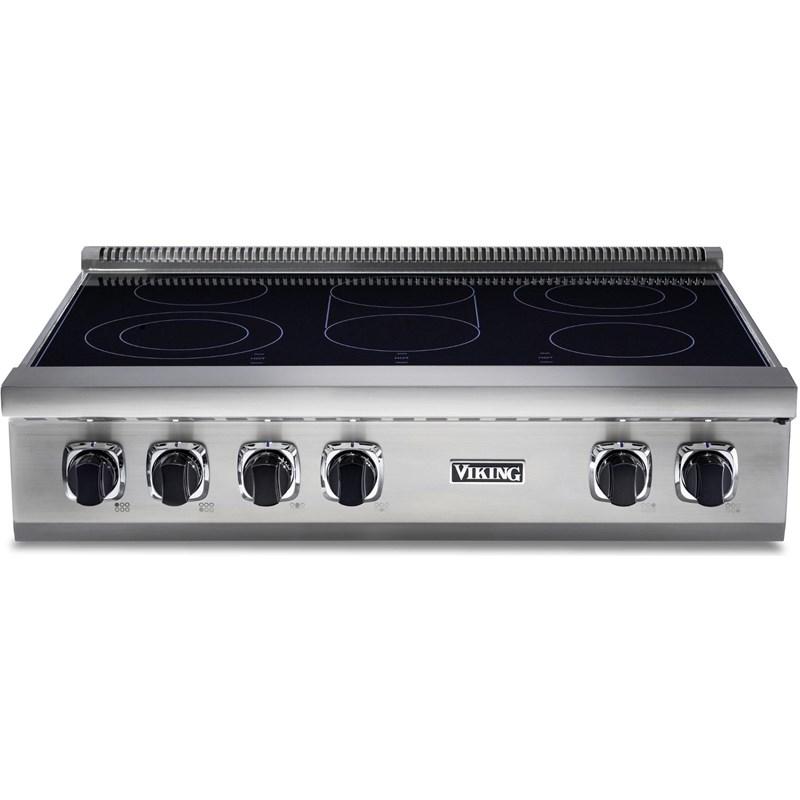

Viking 36" 5 Series Electric Rangetop with QuickCook™ Surface Elements that feature innovative ribbon technology that allows them to reach full power in just three seconds. The SoftLit™ LED lights enhance the control panel's appearance and provide illumination for the knobs, adding a stylish touch to your cooking area.
Features

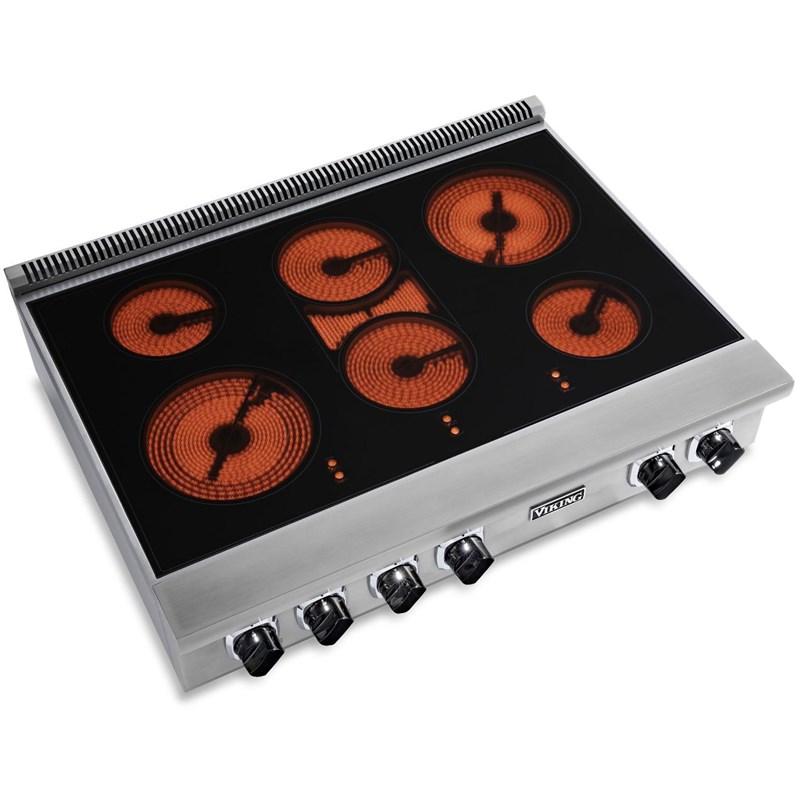

- QUICKCOOK™ SURFACE ELEMENTS — QuickCook™ Surface Infared Elements with ribbon technology reach full power in three seconds and provide fast technology with nearly all cookware.
- BRIDGE ELEMENT — Bridge element connects front and rear elements to create a continuous heated surface for oversized cookware or optional griddle accessory.
- SOFTLIT LED LIGHTS — SoftLit LED Lights accent the control panel and illuminate knobs.
- HIGH INFRARED TRANSMISSION — Ensures fast and efficient surface cooking, regardless of the type of cookware used.
- WIDE RANGE OF SURFACE ELEMENT AND WATTAGES — Offers a variety of element sizes and power levels for versatile cooking options.
Documents
Product Sheet (en)
Owner's manual (en)
Installation guide (en)
Additional documents(en)
Highlights
800-watt "bridge" element between right front and right rear elements; excellent for use in conjunction with both right elements for griddling with optional accessory | High infrared transmission for fast surface cooking, regardless of type of cookware used
Specifications
| Height | 20.6 cm | Width | 90.6 cm | Class Width | 36" |
| Weight | 74.84 kg | Type | Rangetop | Series Name | 5 Series |
| Fuel Type | Electric | Color | Stainless Steel | Manufacturer Color | Stainless Steel |
| Elements | Smoothtop | Burners/Elements | 6 | ||
| Information Electrical Requirements: 3-Wire 240-208V / 60Hz 60amp | Max. Amp Usage 240V: 49.2 A (11.8 kW) | Max. Amp Usage 208V: 42.6 A (8.9 kW) | |||||
| Additional Dimensions Overall Depth (from rear) to end of side panel: 24-5/16" (61.8 cm) | Overall Depth (from rear) to end of landing edge: 27-7/8" (70.8 cm) | Overall Depth (from rear) to end of knobs: 28-3/16" (71.6 cm) | Cutout Width: 36" (121.9 cm) | Cutout Height: 7-1/2" (19.1 cm) | Cutout Depth: 24" (61.0 cm) | |||||
| Optional | |||||
| Warranty Two-year full – complete product | Ninety-day full – cosmetic parts such as glass, painted items, and decorative items | |||||
| Technologies QuickCook™ Surface Elements utilize ribbon technology – elements reach full power in about three seconds | SoftLit™ LED lights accent the control panel and illuminate knobs | |||||
| Burner/Element Size Right front: 6 1/2" | Right rear (dual element): 9" / 6" | Left front (dual element): 9" / 6" | Left rear: 6 1/2" | Center front: 7" | Center rear: 7" | |||||
| Power Output Right front: 1,500-watt element | Right rear (dual element): 3,000/ 1,400-watt element | Left front (dual element): 3,000/ 1,400-watt element | Left rear: 1,500-watt element | Center front: 1,800-watt element | Center rear: 1,800-watt element | |||||
