Description
About this Product

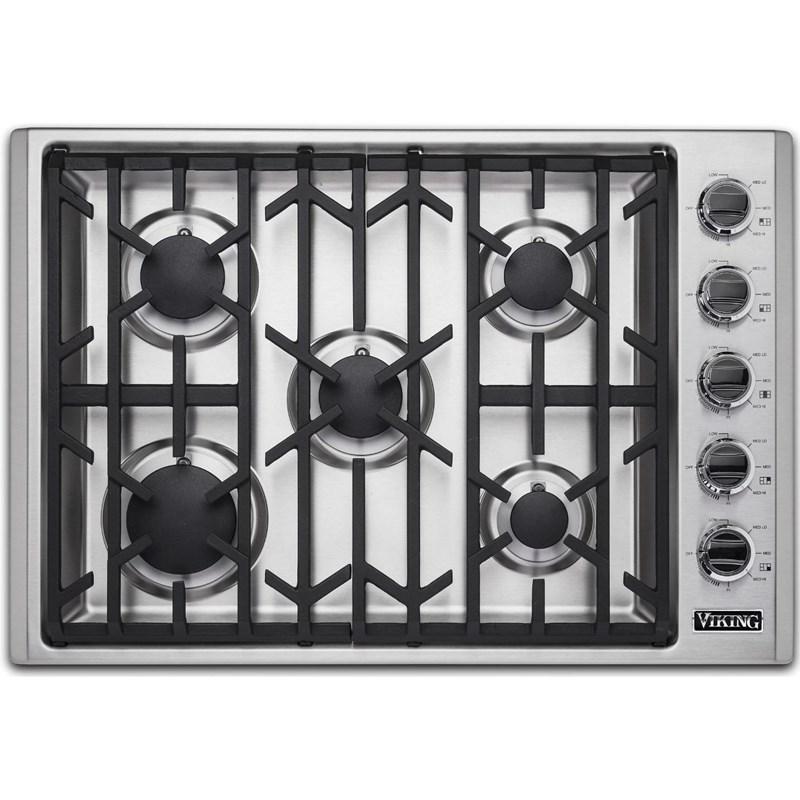

This 30-inch Viking 5 Series gas cooktop features SureSpark™ ignition system, 5 sealed burners and Black Chrome™ knobs.
Features
- PERMANENTLY SEALED BURNERS — Let your pot runneth over with our easy to clean permanently sealed burners. Spills cannot enter the burner box providing easy cleanup.
- HIGH PERFORMANCE COMMERCIAL-TYPE BURNERS — Powerful 18,000 BTU burner delivers commercial power for high heat sauteing, rapid boiling and quick recovery.
- SUPERSPARK™ IGNITION SYSTEM — The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
- SIMMER SETTINGS — Simmer settings on all burners allows low BTU output for heating delicate sauces.
- SCRATCHSAFE™ GRATE DESIGN — Exclusive ScratchSafe™ Grate Design provides ultimate protection from scratches and ensures proper placement of the heavy-duty, porcelain-coated cast-iron grates.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
SureSpark™ Ignition System for All Burners | Sealed Burners with Brass Flame Ports, Removable Porcelain/Cast Iron Caps, and Automatic Ignition/Re-Ignition | Spill Collection Area olds 8 Cups of Liquid Spills
Specifications
| Height | 11.4 cm | Width | 78.1 cm | Class Width | 30" |
| Depth | 53.3 cm | Type | Built-In | Series Name | 5 Series |
| Fuel Type | Liquid Propane | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Burners | Sealed | Burners/Elements | 5 | Weight | 30.39 kg |
| Information 120 V | |||||
| Additional Dimensions Cutout Width: 27-3/4" (70.5 cm) Minimum to 29-3/8" (74.6 cm) Maximum | Cutout Height: 2-3/4" (7.0 cm) | Cutout Depth: 19-1/8" (48.6 cm) Minimum to 20-1/8" (51.1 cm) Maximum | |||||
| Optional WRGVGC Porcelain-Coated Cast Iron Wok Ring fits Securely Over Grates to Accommodate a Traditional Wok | PGDVGC Portable Non-Stick Cast Aluminum Griddle fits Securely Onto Grates for Griddling or Defrosting Food | LPKVGC LP/Propane Conversion Kit | NKHAVGC High Altitude Natural Gas Conversion Kit | |||||
| Warranty Two-Year Full – Complete Product | Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items | Five-Year Limited - Gas Burners | |||||
| Technologies Black Chrome™ Knobs | ScratchSafe™ Grate Design | SureSpark™ Ignition System | |||||
| Power Output Left Front Burner: 16,500 BTU High | Left Rear Burner: 11,000 BTU High | Center Burner: 11,000 BTU High | Right Rear Burner: 7,000 BTU High | Right Front Burner: 6,000 BTU High | |||||
Accessories
• WRGVGC Porcelain-Coated Cast Iron Wok Ring fits Securely Over Grates to Accommodate a Traditional Wok
• PGDVGC Portable Non-Stick Cast Aluminum Griddle fits Securely Onto Grates for Griddling or Defrosting Food
• LPKVGC LP/Propane Conversion Kit
• NKHAVGC High Altitude Natural Gas Conversion Kit
• PGDVGC Portable Non-Stick Cast Aluminum Griddle fits Securely Onto Grates for Griddling or Defrosting Food
• LPKVGC LP/Propane Conversion Kit
• NKHAVGC High Altitude Natural Gas Conversion Kit
