Description
About this Product

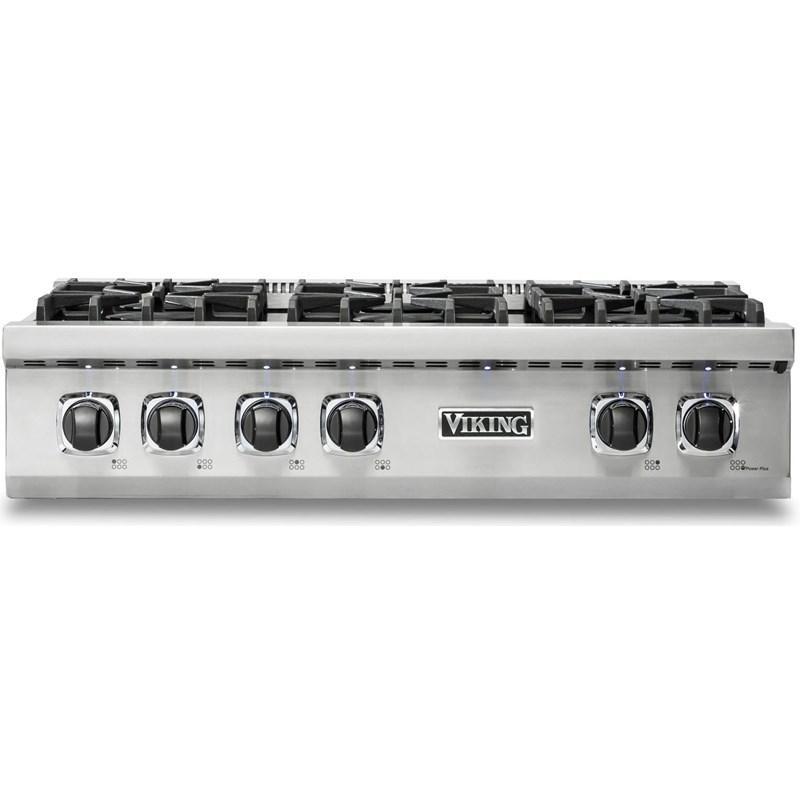

This 36-inch Viking gas rangetop features VSH™ Pro sealed burner system, VariSimmer™ setting, SureSpark™ ignition system and BlackChrome™ metal knobs.
Features
- TRUPOWER PLUS — The TruPower Plus front burner on select Custom Series rangetops lets you cook like a pro with 18,500 BTUs of professional power.
- VHS™ PRO SEALED BURNER SYSTEM — Cook like a pro with up to 18,500 BTUs and infinite settings of easy-to-clean high performance sealed burners. Combination of unique patented burner and surface design provides cleanability plus superior performance at any temperature setting.
- PORCELAINIZED COOKING SURFACE — Keep spills in one place with the raised edges of our exclusive one-piece tooled porcelainized cooking surface. Raised edges around perimeter seal top to completely contain spills. Porcelanized for easy cleaning, durability and long lasting finish.
- VARISIMMER™ — The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
- SUPERSPARK™ IGNITION SYSTEM — The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
All Burners Equipped with SureSpark™ Ignition System | Automatic Re-Ignition | One Piece Tooled and Porcelainized Cooking Surface for Easy Clean Up | Burner Caps are Easily Removable for Quick Cleaning | Heavy-Duty, Porcelainized, Cast-Iron Removable Surface Grates | Front Serviceable Oven Electronic Control Board
Specifications
| Surface Features | One Piece Tooled and Porcelainized Cooking Surface | Burners | Sealed | Burners/Elements | 5 |
| Height | 23.5 cm | Width | 91.1 cm | Class Width | 36" |
| Depth | 61.8 cm | Type | Rangetop | Series Name | 5 Series |
| Fuel Type | Natural Gas | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Weight | 72.57 kg | ||||
| Power Output (4x) Standard Burners: 15,000 BTU | (1x) Front Right TruPower Plus™ Burner: 18,500 BTU | |||||
| Information 120 V | 60 Hz | 0.5 A | |||||
| Additional Dimensions Cutout Width: 36" (91.4 cm) | Cutout Height: 7-5/8" (19.4 cm); Top of Side Trim Should be 3/8" (1.0 cm) Above Countertop | Cutout Depth: 24" (61.0 cm) Minimum; 25-3/4" (65.4 cm) Maximum | |||||
| Optional 8"H. Backguard: BG8536BSS | High Shelf: HS24536SS | Countertop Side Trim: P24CST | Countertop Rear Trim: P36CRT | |||||
| Warranty Two-Year Full – Complete Product | Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items | Five-Year Limited - Gas Burners | |||||
| Technologies TruPower Plus™ | VariSimmer™ Setting | BlackChrome™ Metal Knobs | SoftLit™ LED | SureSpark™ Ignition System | |||||
Accessories
• 8"H. Backguard: BG8536BSS
• High Shelf: HS24536SS
• Countertop Side Trim: P24CST
• Countertop Rear Trim: P36CRT
• High Shelf: HS24536SS
• Countertop Side Trim: P24CST
• Countertop Rear Trim: P36CRT
