Description
About this Product

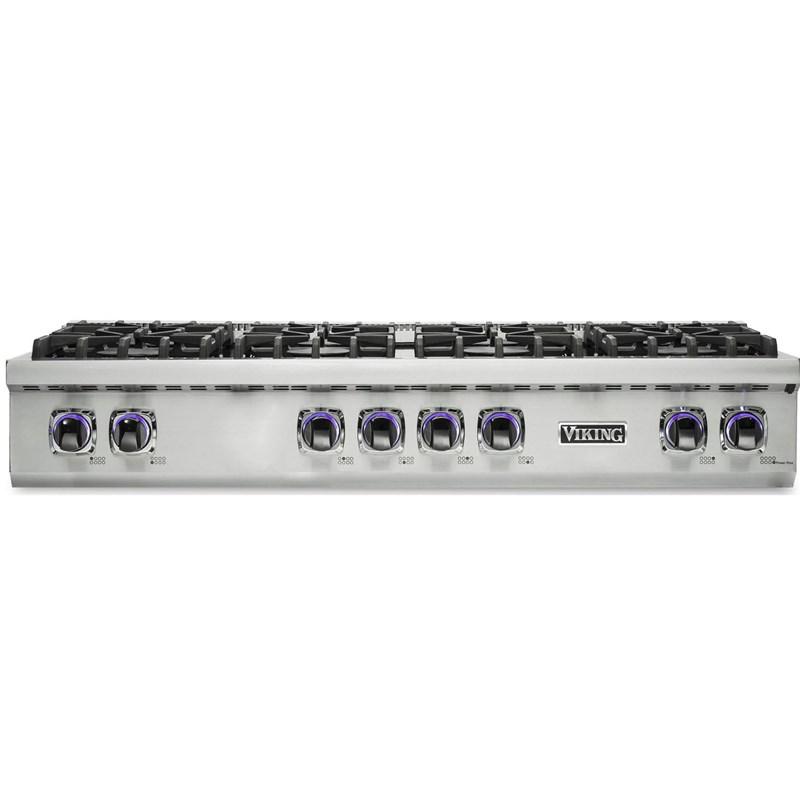

This Viking 7 Series, 48-inch gas rangetop features Elevation™ burners, VariSimmer™ setting and SureSpark™ ignition system.
Features

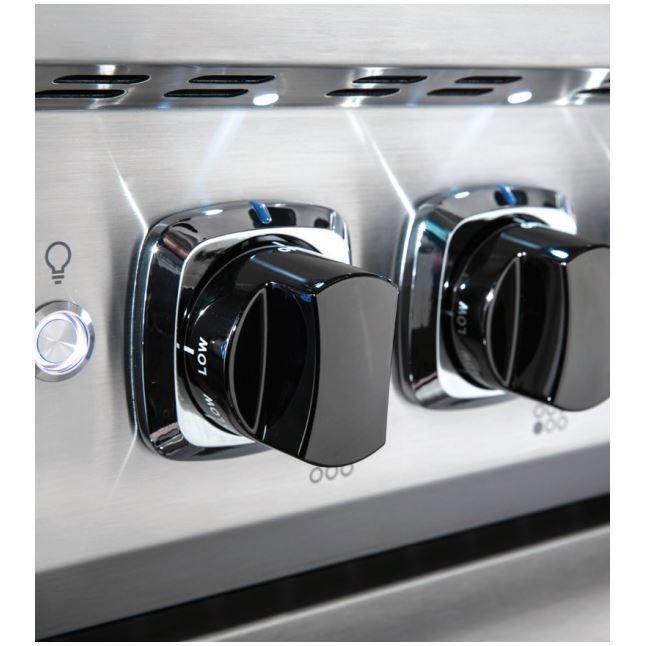

- COOLLIT™ LED LIGHTS — EXCLUSIVE CoolLit™ LED Lights in signature Viking blue illuminate cooking zones while in use.
- ELEVATION™ BURNERS — Elevation™ Burners with brass flame ports boast 23,000 (NG) BTUs across the front of all width configurations, with multiple 15,000 (NG) BTUs and one 8,000 (NG) BTU burner across the rear.
- SUPERSPARK™ IGNITION SYSTEM — The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
- VARISIMMER™ — The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
Seamless, Heavy Gauge Porcelain Burner Pan with Elevated Flame Ports Prevent Spillovers from Baking on, Making Cleanup Easy | Continuous Grate Design Allows Easy Movement of Pots and Pans From Burner to Burner
Specifications
| Height | 20.3 cm | Width | 121.6 cm | Class Width | 48" or More |
| Depth | 76.2 cm | Type | Rangetop | Series Name | 7 Series |
| Fuel Type | Natural Gas | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Burners | Sealed | Burners/Elements | 8 | Weight | 109.77 kg |
| Information 120 V | |||||
| Additional Dimensions Cutout Dimensions: | Cutout Width: 48" (121.9 cm) | Cutout Height: 7-5/8" (19.4 cm) | Cutout Depth: min. 24" (61.0 cm), max. 25-1/4" (64.1 cm) | |||||
| Optional BG107482SS – 10"H. Backguard for | HS24748SS – 24"H. High Shelf | P48CRTSS– Countertop Rear Trim | CRG7VGR – ViChrome Griddle Accessory (for use with Griddle Model) | CBGVGR – Bamboo Cover for 7 Series | LPKVGR – LP/Propane Conversion Kit for 7 Series | GCKVGR – Gas Connector Kit for 7 Series | WOKVGR7 – Wok Ring Accessory for 7 Series | |||||
| Warranty Two-Year Full – Complete Product | Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items | Five-Year Limited – Gas Burners | |||||
| Technologies Viking Elevation™ Burners | VariSimmer™ Setting | SureSpark™ Ignition System | BlackChrome™ Knobs with CoolLit™ LED Backlighting | |||||
| Power Output (4) Front Burners: 23,000 BTU | (3) Rear Burners: 15,000 BTU | (1) Rear Burner: 8,000 BTU | |||||
Accessories
• BG107482SS – 10"H. Backguard for
• HS24748SS – 24"H. High Shelf
• P48CRTSS– Countertop Rear Trim
• CRG7VGR – ViChrome Griddle Accessory (for use with Griddle Model)
• CBGVGR – Bamboo Cover for 7 Series
• LPKVGR – LP/Propane Conversion Kit for 7 Series
• GCKVGR – Gas Connector Kit for 7 Series
• WOKVGR7 – Wok Ring Accessory for 7 Series
• HS24748SS – 24"H. High Shelf
• P48CRTSS– Countertop Rear Trim
• CRG7VGR – ViChrome Griddle Accessory (for use with Griddle Model)
• CBGVGR – Bamboo Cover for 7 Series
• LPKVGR – LP/Propane Conversion Kit for 7 Series
• GCKVGR – Gas Connector Kit for 7 Series
• WOKVGR7 – Wok Ring Accessory for 7 Series
