Description
About this Product

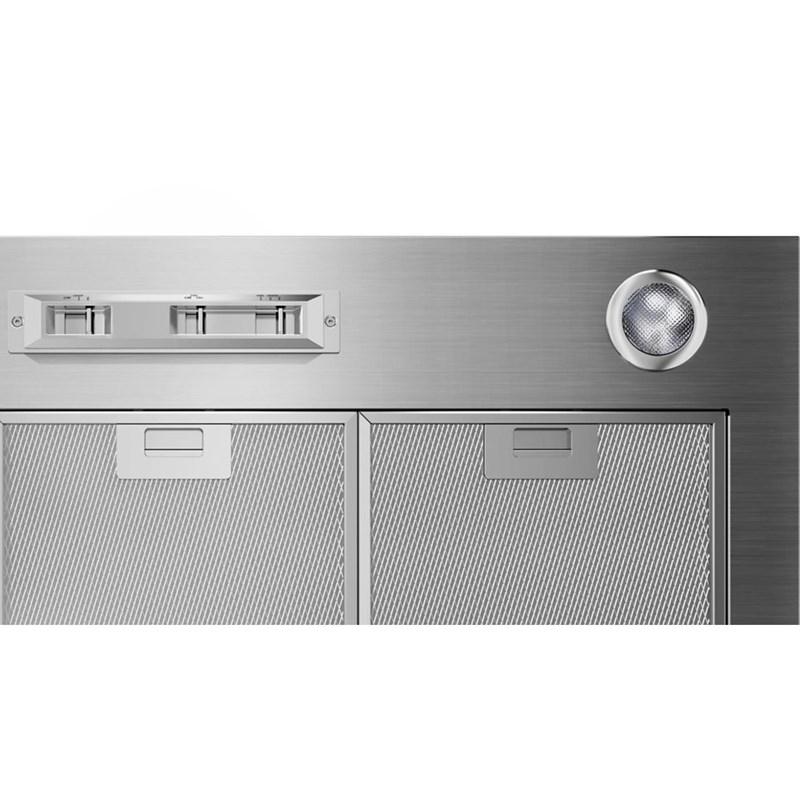

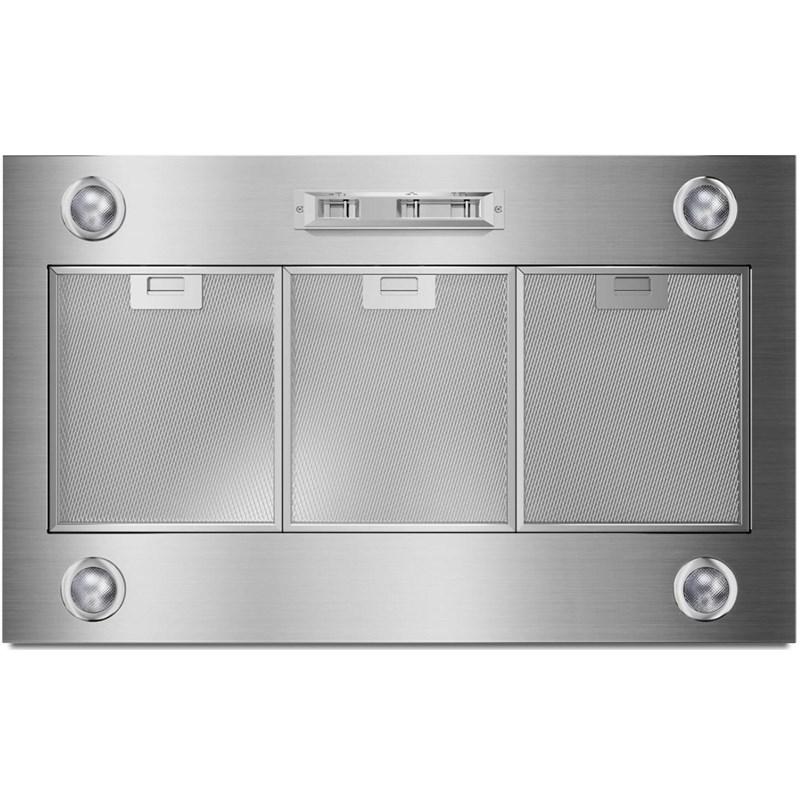

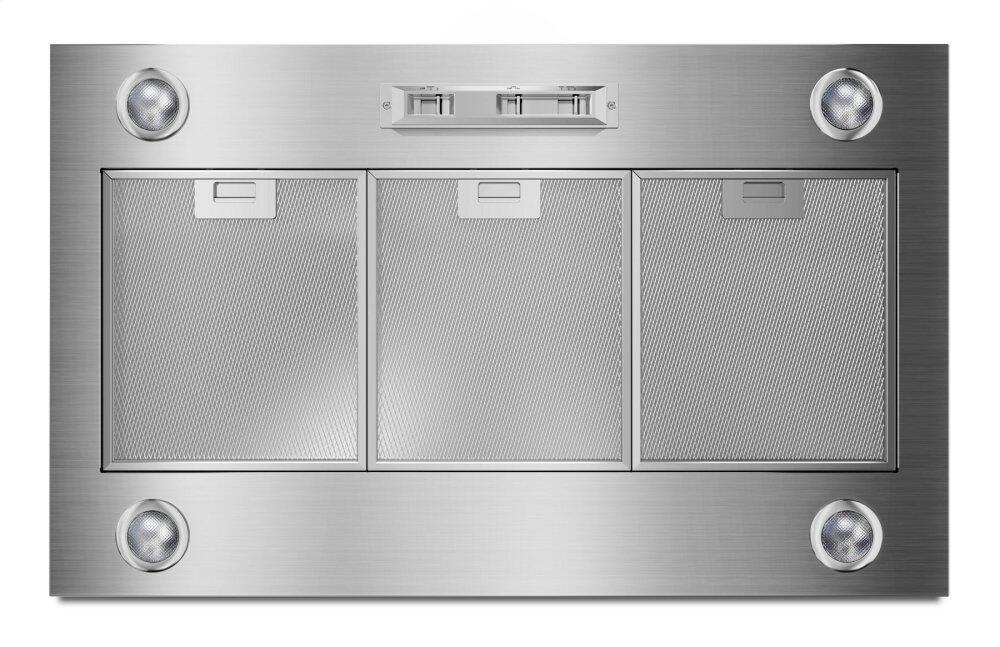

This 36-inch custom hood liner allows you to conceal ventilation within cabinetry or a decorative hood cover, creating a style all your own. Choose from two compatible blower motor options (sold separately) for complete customization of your ventilation system. A 65,000 BTU rating allows this hood liner to pair with 36-inch ranges or cooktops of comparable output.
Documents
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
Sones with High Speed: 11.5 (with 585 CFM motor) & 13 (with 1170 CFM motor) | Aluminum Mesh Grease Filter | LED Lights | Centrifugal Blower
Specifications
| Width | 70.01 cm | Height | 42.23 cm | Depth | 105.09 cm |
| Weight | 20.41 kg | UPC# | 883049569505 | Class Width | 36" |
| Warranty | 1 Year Parts and Labor | Energy Star Certified | N | Ducting Information | Vertical 10" Round |
| Wi-Fi | N | Speeds | 3-Speed Push Button Control | Style | Custom Insert |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Built-In |
| Blower Included | N | ||||
| Additional Dimensions Cutout Depth: 22" | Cutout Width: 36" | |||||
| Optional UXB0600DYS 600 CFM Internal Blower | UXB1200DYS 1200 CFM Internal Blower | UXI1200DYS 1200 CFM In-Line Blower | |||||
Accessories
• UXB0600DYS 600 CFM Internal Blower
• UXB1200DYS 1200 CFM Internal Blower
• UXI1200DYS 1200 CFM In-Line Blower
• UXB1200DYS 1200 CFM Internal Blower
• UXI1200DYS 1200 CFM In-Line Blower
