Description
About this Product

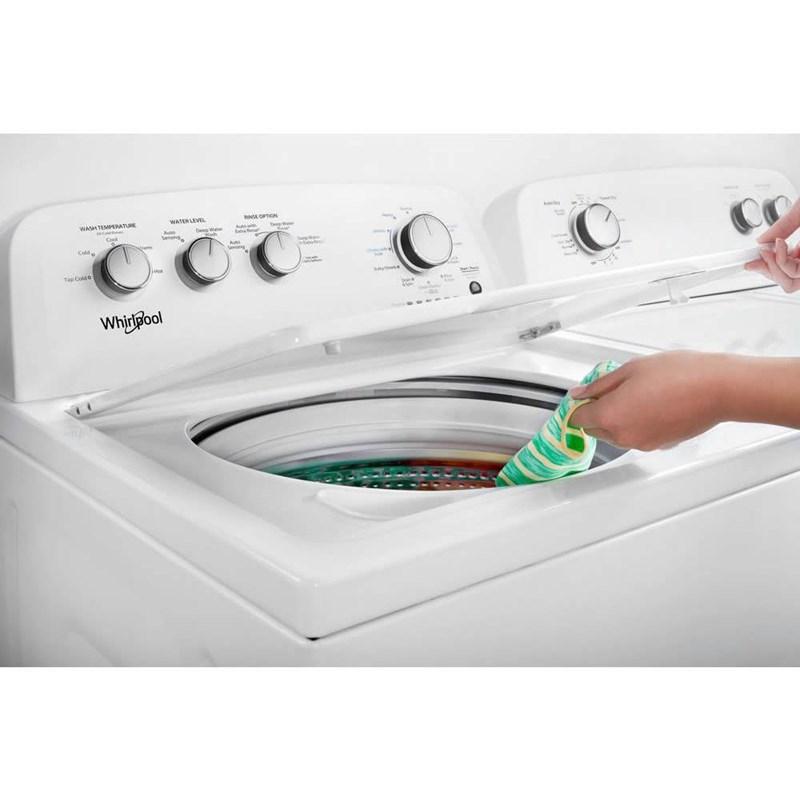

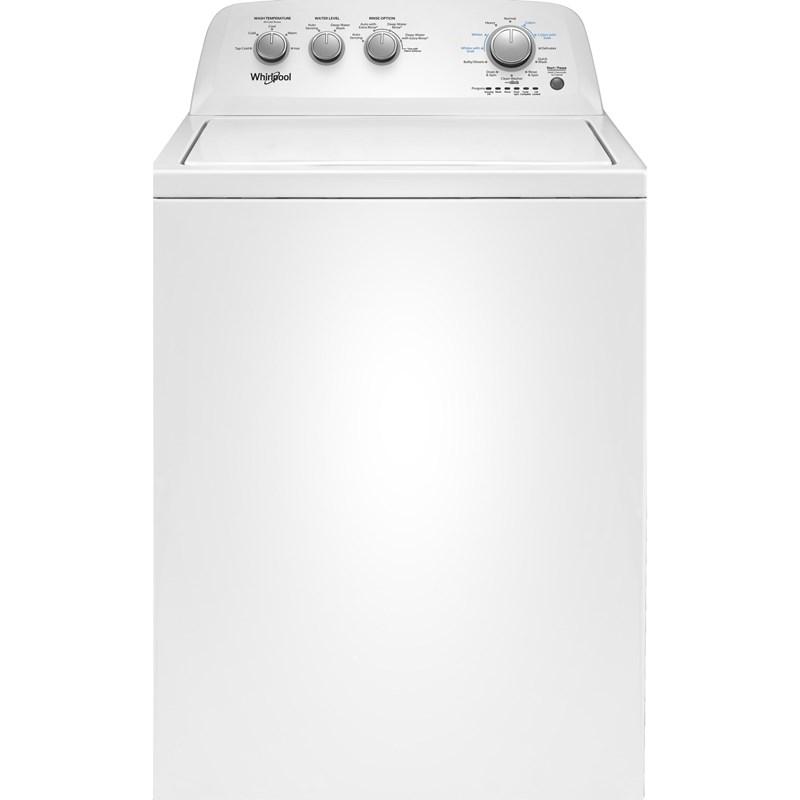

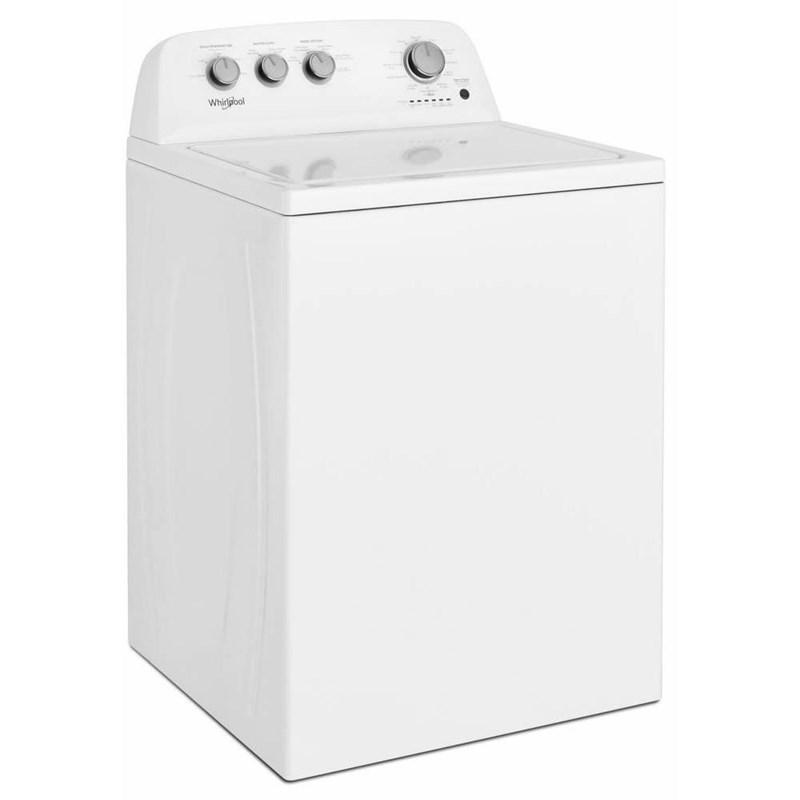

Care for the whole family's fabrics with this large capacity top load washing machine. The Smooth Spiral Stainless Steel Wash Basket helps prevent snags and the 360 Wash Agitator thoroughly cleans fabrics. Choose your water level on any cycle with Water Level Selection and wash a load in as little as thirty minutes* with the QuickWash Cycle.
Features
- BULKY ITEMS/SHEETS CYCLE — The Bulky Items/Sheets cycle takes care of bedding as well as those bulky winter jackets. The washer fills with enough water to wet down the load before the wash cycle begins, then uses a higher water level than other cycles.
- QUICK WASH CYCLE — Save time when you only have a small load to wash. This cycle is designed to clean small, lightly soiled loads in 30 minutes.
- SOAKING CYCLE — Soak and wash in one cycle. Skip a trip to the laundry room with Soaking cycles that start washing whites and colors as soon as they're done soaking.
- DELICATES CYCLE — Clean your delicate items with an intermittent wash action and slow spin speed, to provide everything you'd expect for gentle fabric care.

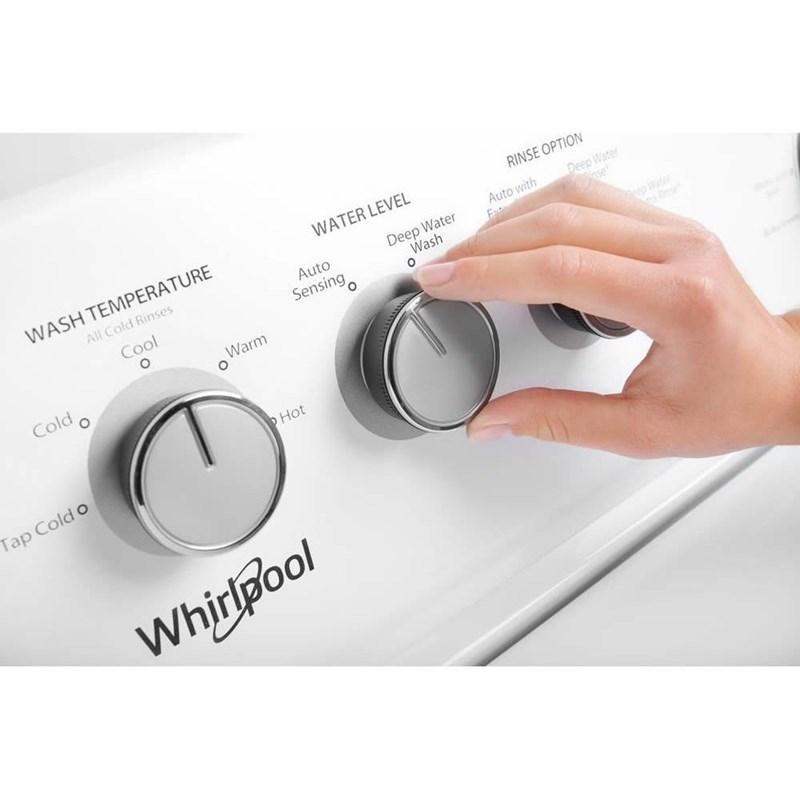

- WATER LEVEL SELECTION — Choose the water level you need for the cycle you want. No matter which cycle you choose, Water Level Selection lets you select Auto Fill to adjust water based on load size or the Deep Water Wash option to help break down loose soils with more water.
- SMOOTH SPIRAL STAINLESS STEEL WASH BASKET (AGITATOR) — The stainless steel wash basket resists odors and rust and features a spiral design for greater fabric care and gentle cleaning performance. The smooth surface helps protect delicate fabrics from snagging.
Documents
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Energy Guide (en)
Videos
Highlights
Smooth Spiral Stainless Steel Wash Basket | Late Lid Lock | Suspension System: 4 Springs 4 Dampers | 2 Spin Speeds | Temperature Combinations: Cold, Cool, Hot, Tap Cold, Warm | Feedback-Status Indicators: Cycle Complete, Fill, Final Spin, Lid Lock, Rinse, Sensing, Wash
Specifications
| DOE (By Class) | 3.6 cu.ft. - 4.2 cu. ft. | Total Capacity IEC | 4.4 cu. ft. | IEC (By Class) | 4.3 cu.ft. and above |
| Total Capacity DOE | 3.8 cu. ft. | Steam Cycle | N | Dispensers | Fabric Softener |
| Wi-Fi | N | Tub Material | Stainless Steel | Temperature Settings | 5 |
| Manufacturer Color | White | Color | White | Wash Action System | Agitator |
| Number of Cycles | 12 | Weight | 52.16 kg | Additional Dimensions | Maximum Height: 111.76 cm, 44 in |
| Class Width | 28" - 30" | Depth | 68.58 cm | Height | 109.86 cm |
| Width | 69.85 cm | Warranty | Limited 1 Year Parts and Labor | UPC# | 883049474304 |
| Energy Star Certified | N | ||||
|
Technologies Two-Way Wash Action Agitator
| |||||
|
Information 60 Hz
| |||||
|

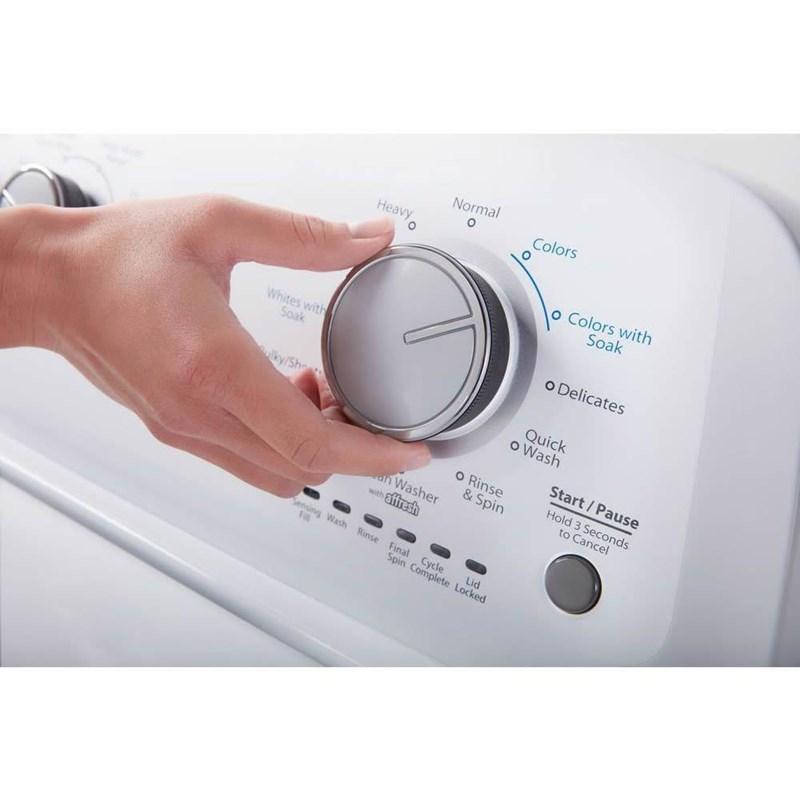

Wash Cycles Bulky/Sheets | Clean Washer with affresh | Colors | Colors with Soak | Delicates | Drain and Spin | Hand Wash | Normal | Quick Wash | Rinse and Spin | Whites | Whites with Soak
| |||||
DOE (By Class)
3.6 cu.ft. - 4.2 cu. ft.
Total Capacity IEC
4.4 cu. ft.
IEC (By Class)
4.3 cu.ft. and above
Total Capacity DOE
3.8 cu. ft.
Steam Cycle
N
Dispensers
Fabric Softener
Wi-Fi
N
Tub Material
Stainless Steel
Temperature Settings
5
Manufacturer Color
White
Color
White
Wash Action System
Agitator
Number of Cycles
12
Weight
52.16 kg
Class Width
28" - 30"
Depth
68.58 cm
Height
109.86 cm
Width
69.85 cm
Weight
57.15 kg
Width
73.66 cm
Height
116.84 cm
Depth
69.22 cm
Warranty
Limited 1 Year Parts and Labor
Energy Star Certified
N
Technologies
Two-Way Wash Action Agitator
Additional Information
Smooth Spiral Stainless Steel Wash Basket | Late Lid Lock | Suspension System: 4 Springs 4 Dampers | 2 Spin Speeds | Temperature Combinations: Cold, Cool, Hot, Tap Cold, Warm | Feedback-Status Indicators: Cycle Complete, Fill, Final Spin, Lid Lock, Rinse, Sensing, Wash
Information
60 Hz
Wash Cycles
Bulky/Sheets | Clean Washer with affresh | Colors | Colors with Soak | Delicates | Drain and Spin | Hand Wash | Normal | Quick Wash | Rinse and Spin | Whites | Whites with Soak
Additional Dimensions
Maximum Height: 111.76 cm, 44 in
Specifications
CertificationsADA Compliant No
Energy Rating 250
Energy Star® Qualified No
Prop 65 CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .
UL Yes
ULe Environmentally Preferred Certified No
Dimensions
Capacity 3-9/10, 3-9/10
Capacity IEC CAN 1245.20 l, 4.4 cu. ft.
Depth 6858.00 cm, 27.0 in
Gross Weight 57152592.00 kg, 126 lbs
Height with Lid Open 52
Net Weight 52163080.00 kg, 115 lbs
Width 6985.00 cm, 27-1/2 in
Appearance
Window No
Details
Advanced Vibration Control™ Yes
Dispense System Bleach & Fabric Softener
Drum Material Stainless Steel
Eco Monitor/Efficiency Monitor No
Fan Type No
Hoses Included No
Interior Light No
Internal Heater No
Maximum Spin Speed 680
Out of Balance Sensing Yes
Suspension System 4 Springs 4 Dampers
Wash Action Agitator
Water Factor 6-1/100

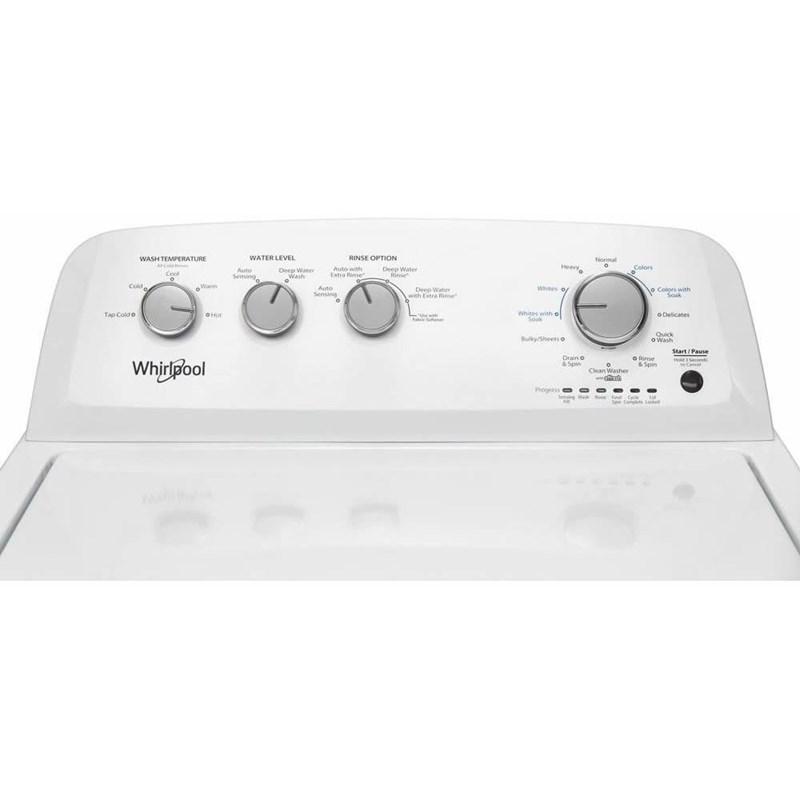

Controls
Automatic Temperature Controls Yes
Control Location Rear Panel
Electronic Display Type No
Feedback-Status Indicators Sensing, Fill, Wash, Cycle Complete, Lid Lock, Rinse, Final Spin
Cycles and Options
Number of Wash Cycles 12
Electrical
Hz 60
Power Cord Included Yes
Volts 120
Features
Sound Package No
Stackable No
Cycles
Number of Wash Cycles 12
EndecaProps
ProductOutletCategories Laundry
Exterior
Lid/Door Finish Powder Coat
Slow Close Lid No
Window No
Modifiers
Delay Start No
Number of Spin Speeds 2
Number of Wash/Rinse Temperatures 5
Pre Soak No
Rinse Temperature Cold
Temperature Selections Tap Cold, Cold, Cool, Warm, Hot
Refinements
Features Standard Washers
While we do our best to make sure our dimension data is accurate, errors sometimes do occur in all cases, dimensions should be confirmed by reviewing the manufacturer supplied dimension drawing and/or cut sheet.
