About this Product

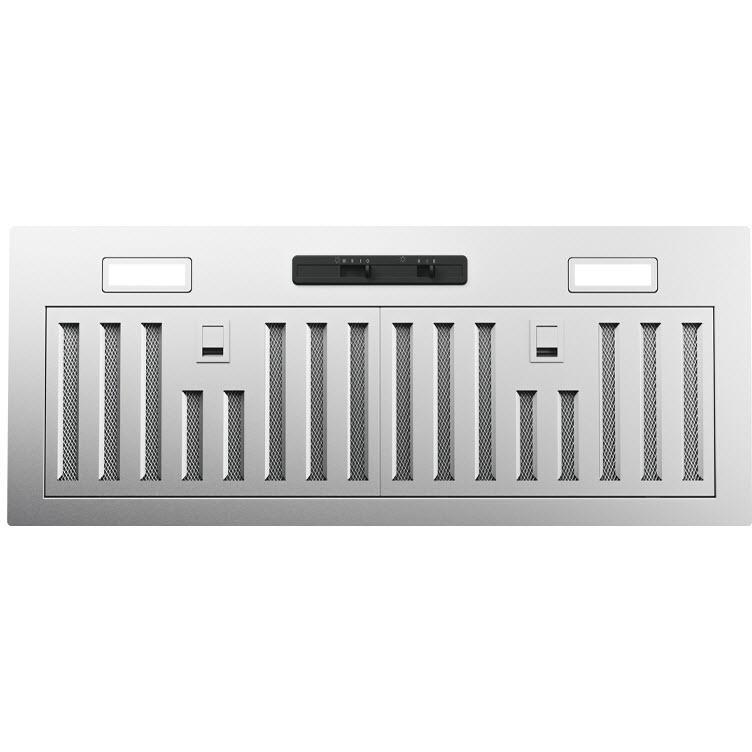

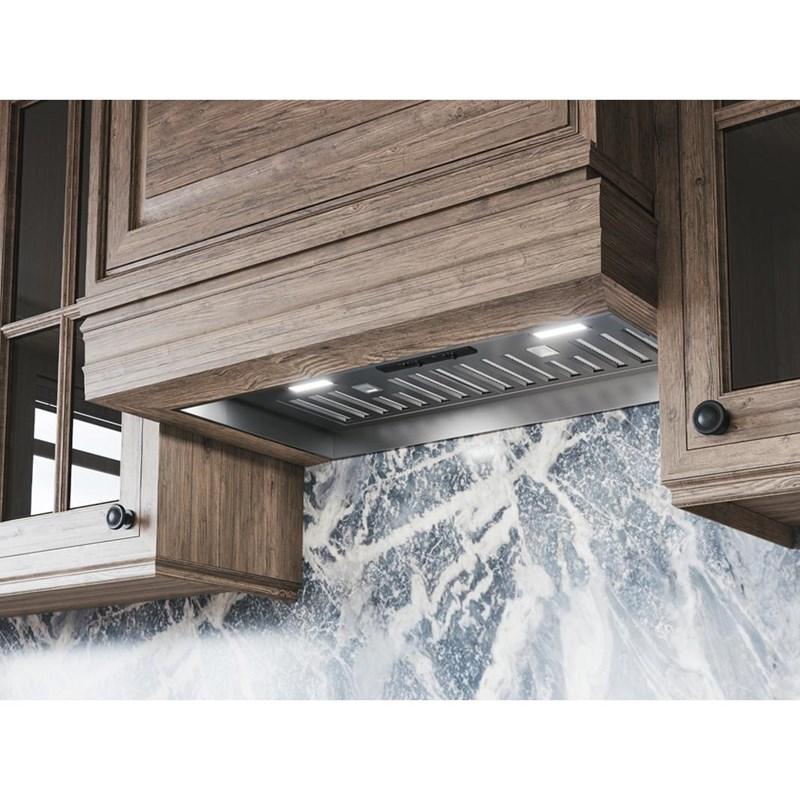

The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
Blower CFM (Min. - Max.) 200 - 600 | Sones (Min. - Max.) 1.4 - 6 | Mechanical Slide Controls | LumiLight LED, 6W x2 | Dual-Level Lighting | Hybrid Baffle x2 | Recirculating Option
Specifications
| Style | Custom Insert | Manufacturer Color | Stainless Steel | Series Name | Tornado I |
| Installation | Built-In | Blower Included | Y | Airflow | 600 CFM |
| Color | Stainless Steel | Width | 70.0 cm | Depth | 28.41 cm |
| Height | 31.43 cm | Class Width | 28" | Speeds | 3 Speeds |
| UPC# | 646328009884 | Warranty | 10 Years Parts, 1 Year Labor | ||
| Ducting Information Vertical Internal Blower 6" Round | Horizontal Internal Blower 6" Round | |||||
| Information 120 V | 60 Hz | 3 A | |||||
| Optional 30" Liner (17-1/2" - 20-1/2" Depth) AK0800AS | 36" Liner (17-1/2" - 20-1/2" Depth) AK0836AS | Recirculating Kit ZRC-0080 | Make-Up Air Kit MUA006A | |||||
Accessories
• 36" Liner (17-1/2" - 20-1/2" Depth) AK0836AS
• Recirculating Kit ZRC-0080
• Make-Up Air Kit MUA006A
