Description
About this Product

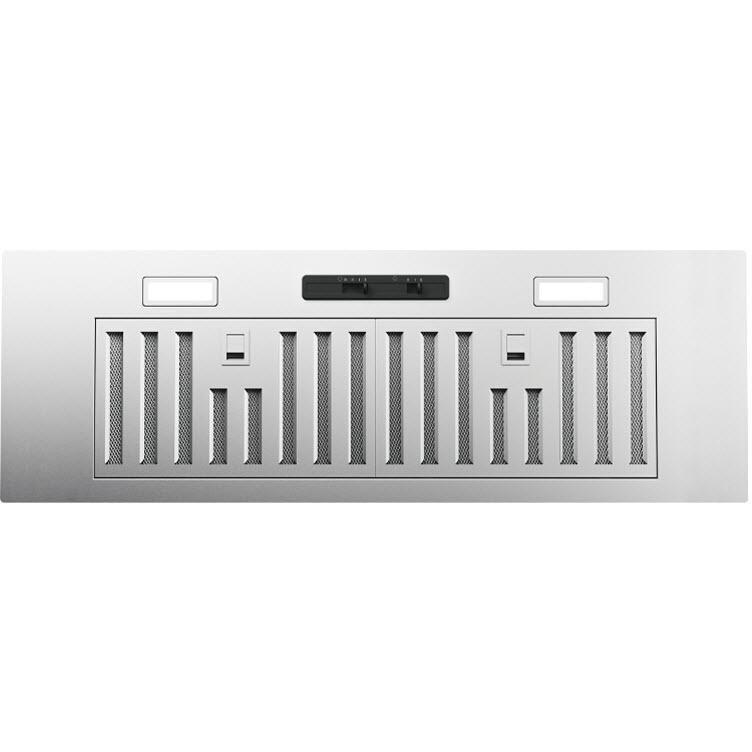

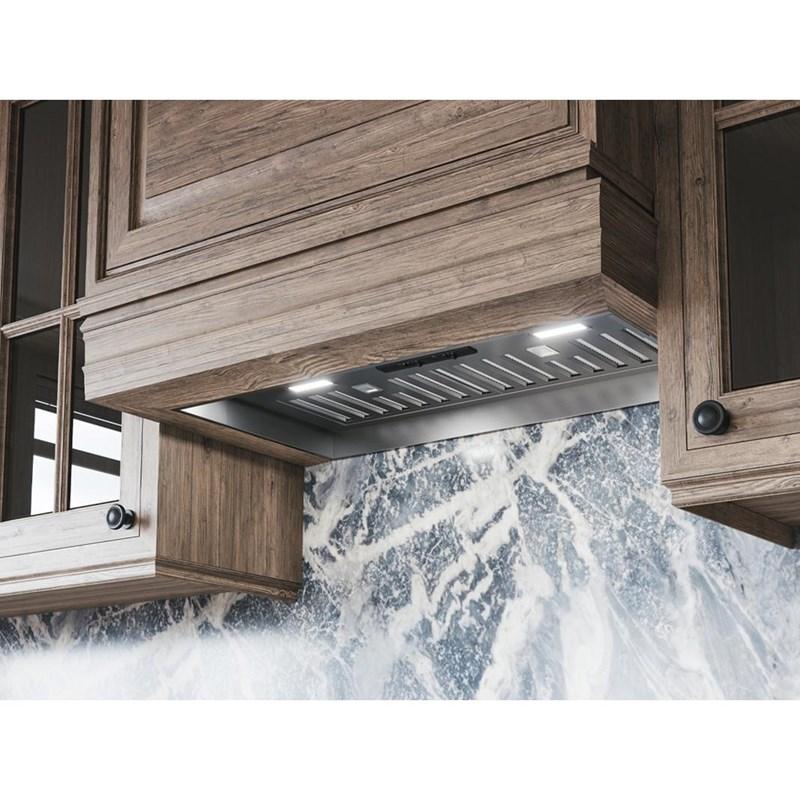

The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
Documents
Owner's manual (en)
Installation guide (en)
Highlights
Mechanical Slide Controls | LumiLight LED, 6W x2 | Dual-Level Lighting | Hybrid Baffle x2 Filters | Recirculating Option | Blower CFM (Min. - Max.): 200 - 600 | Sones (Min. - Max.): 1.4 - 6
Specifications
| UPC# | 646328011269 | Warranty | 10 years parts, 1 year labor | Depth | 28.41 cm |
| Height | 31.43 cm | Width | 85.24 cm | Class Width | 34" |
| Series Name | Tornado I | Style | Custom Insert | Color | Stainless Steel |
| Installation | Built-In | Blower Included | Y | Airflow | 600 CFM |
| Speeds | 3 Speeds | ||||
| Optional 36" Liner (17-1/2" - 20-1/2" Depth): AK0836AS | Recirculating Kit: ZRC-0080 | Make-Up Air Kit: MUA006A | |||||
| Ducting Information Vertical Internal Blower: 6" Round | Horizontal Internal Blower: 6" Round | |||||
| Information 120 V | |||||
Accessories
• 36" Liner (17-1/2" - 20-1/2" Depth): AK0836AS
• Recirculating Kit: ZRC-0080
• Make-Up Air Kit: MUA006A
• Recirculating Kit: ZRC-0080
• Make-Up Air Kit: MUA006A
