Description
About this Product

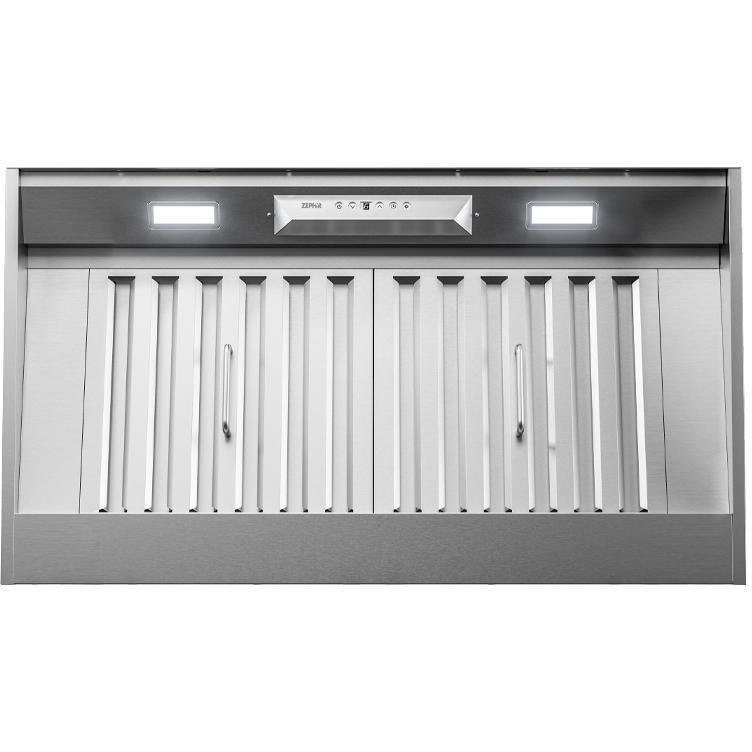

The Zephyr, Core Collection, Monsoon I has taken the one-piece liner to the next level. It includes dual-level LumiLight LED’s and an ADA-compliant wireless remote that lets you easily control the Monsoon I without ever reaching over a dangerous cooking surface. It is equipped with 6-speed electronic controls, pro baffle filters, Zephyr's exclusive ACT™ technology and a powerful 1200-CFM blower.
Features
- AIRFLOW CONTROL TECHNOLOGY — Airflow Control Technology™ (ACT™) is an exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements.
- CLEAN AIR — Clean Air is a feature that turns the blower on every 4 hours for 10 minutes to remove stagnant air in the kitchen. This feature is disabled by default and must be enabled by the user.
- ELECTRONIC TOUCH CONTROL — Zephyr’s wireless RF remote puts you in control of your one-piece liner from up to 15 feet away.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Electronic Touch controls | Auto delay-off | CleanAir function | Sones (Min. - Max.): 3.5 - 9 | Lighting: LumiLight LED, 6W x2 | Dual-level lighting | 2 Pro baffle filters | Grease collection tray | ADA Compliant
Specifications
| Height | 30.48 cm | Depth | 48.9 cm | Width | 117.79 cm |
| Class Width | 48" | Additional Dimensions | Mounting height range: 26" - 36" | Speeds | 6 |
| Dishwasher-Proof Filters | Y | Ducting Information | 8" Round | Airflow | 1200 CFM |
| Style | Custom Insert | Installation | Built-In | Blower Included | Y |
| Color | Stainless Steel | Manufacturer Color | Stainless Steel | UPC# | 646328008306 |
| Hvi Certified | N | Included | Wireless Remote Control | ||
| Information 120V, 60Hz at Max. 7A | |||||
| Technologies Airflow Control Technology™ | |||||
| Series Name Core Collection | Monsoon I | |||||
| Warranty 1-Year limited warranty on labor only | 3-Year limited warranty on none-consumable parts | |||||
| Optional Make-up air kit: MUA010A | |||||
