Description
About this Product

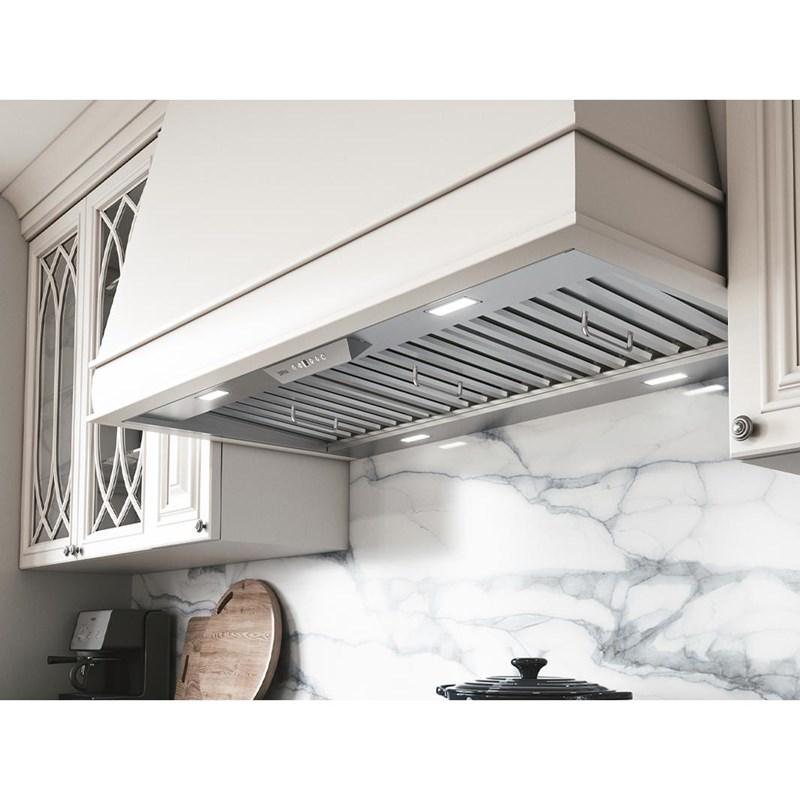

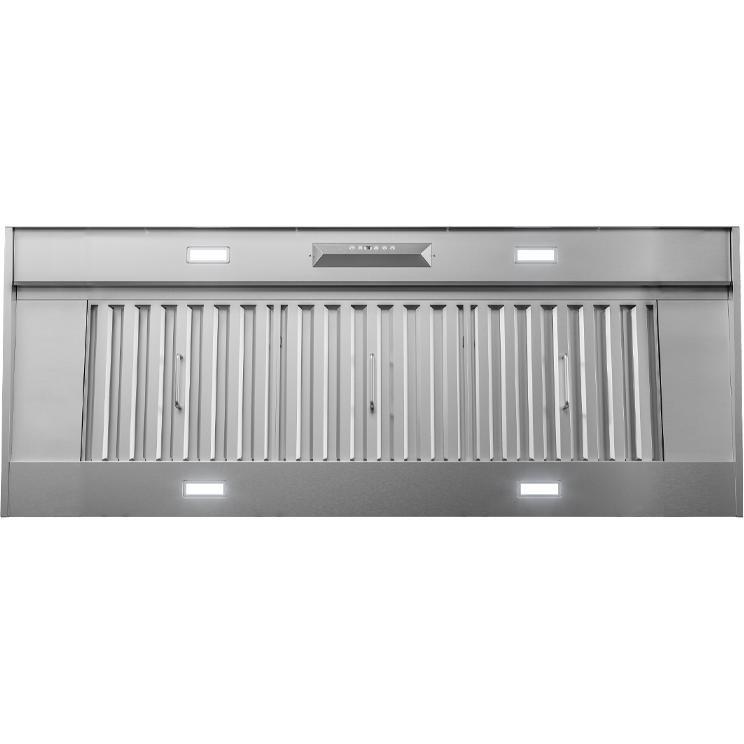

With LumiLight LED lighting and ACT™ technology, Zephyr Monsoon II delivers and then more. Designed using universally-recognized, conventional installation dimensions, Monsoon II is a great option for custom cabinetry or enclosure. Its stainless steel baffle filters with removable grease tray make it easy to maintain its pro-style look while the 6-speed electronic controls and wireless remote control give the homeowner more than they expected.
Features
- AIRFLOW CONTROL TECHNOLOGY — Airflow Control Technology™ (ACT™) is an exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements.
- CLEAN AIR — Clean Air is a feature that turns the blower on every 4 hours for 10 minutes to remove stagnant air in the kitchen. This feature is disabled by default and must be enabled by the user.
- ELECTRONIC TOUCH CONTROL — Zephyr’s wireless RF remote puts you in control of your one-piece liner from up to 15 feet away.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
Electronic Touch controls | Auto delay-off | CleanAir function | Sones (Min. - Max.): 3.5 - 9 | Lighting: LumiLight LED, 6W x4 | Dual-level lighting | 3 Pro baffle filters | Grease collection tray | ADA Compliant
Specifications
| Hvi Certified | N | UPC# | 646328011689 | Included | Wireless Remote Control |
| Depth | 57.15 cm | Height | 30.48 cm | Width | 149.7 cm |
| Class Width | 60" | Additional Dimensions | Mounting height range: 26" - 36" | Style | Custom Insert |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Built-In |
| Blower Included | Y | Airflow | 1200 CFM | Ducting Information | 10" Round - Vertical |
| Dishwasher-Proof Filters | Y | Speeds | 6 | ||
| Warranty 1-Year limited warranty on labor only | 3-Year limited warranty on none-consumable parts | |||||
| Optional Make-up air kit: MUA010A | |||||
| Series Name Core Collection | Monsoon II | |||||
| Technologies Airflow Control Technology™ | |||||
| Information 120V, 60Hz at Max. 7A | |||||
