Description
About this Product

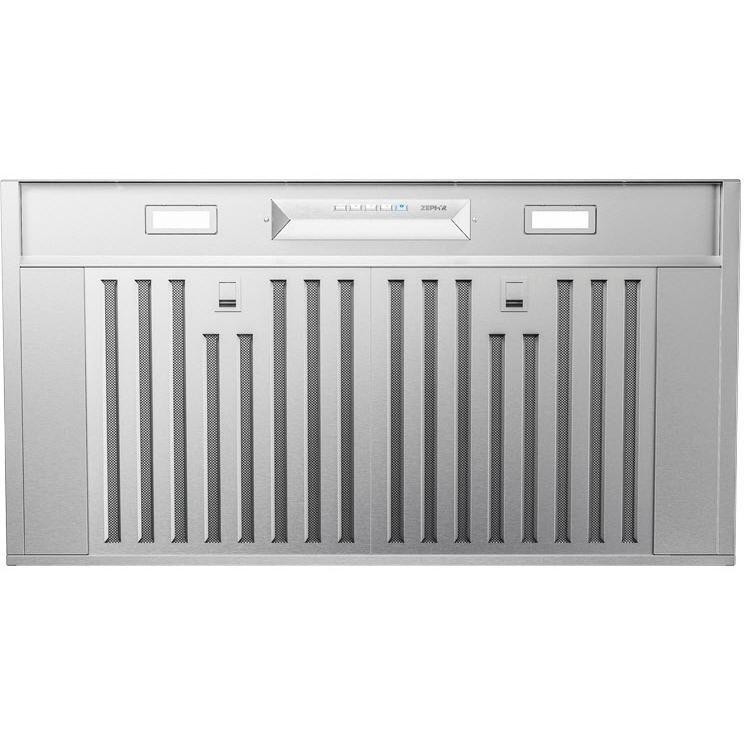

A quiet storm of air-clearing power in a designer package, the Monsoon Mini II gets the job done. It features a 600-CFM blower, hybrid baffle filters, Airflow Control Technology (ACT™), and dual-level LumiLight LED lighting. Also includes recirculating and make-up air options.
Features
- ACT™ CONTROL TECHNOLOGY — Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
Blower CFM (Min. - Max.) 290 - 600 | Sones (Min. - Max.) 1.5 - 6 | ACT 390 CFM (Min. - Max.) 290 - 390 | ACT 290 CFM (Min. - Max.) 290 - 290 | Electronic Touch Controls | Auto Delay-Off | LumiLight LED, 6W x2 | Dual-Level Lighting | Filters Hybrid Baffle x2 | Recirculating Option
Specifications
| UPC# | 646328009921 | Warranty | 3 Years Parts, 1 Year Labor | Depth | 45.87 cm |
| Height | 15.55 cm | Width | 102.55 cm | Class Width | 42" |
| Series Name | Monsoon Mini II | Style | Custom Insert | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation | Built-In | Blower Included | Y |
| Airflow | 600 CFM | Speeds | 3 Speeds: *When ACT™ is enabled the maximum speed levels will change. ACT 390 = 2 speeds and ACT 290 = 1 speeds | ||
| Optional Recirculating Kit ZRC-9100A | Make-Up Air Kit MUA006A | Damper, 7" Round AK00067 | |||||
| Ducting Information Vertical Internal Blower 7" Round, 3-1/4" x 10" | Horizontal Internal Blower 3-1/4" x 10" | |||||
| Technologies ACT™ Technology | |||||
| Information 120 V | 60 Hz | 4 A | |||||
Accessories
• Make-Up Air Kit MUA006A
• Damper, 7" Round AK00067
