Description
About this Product

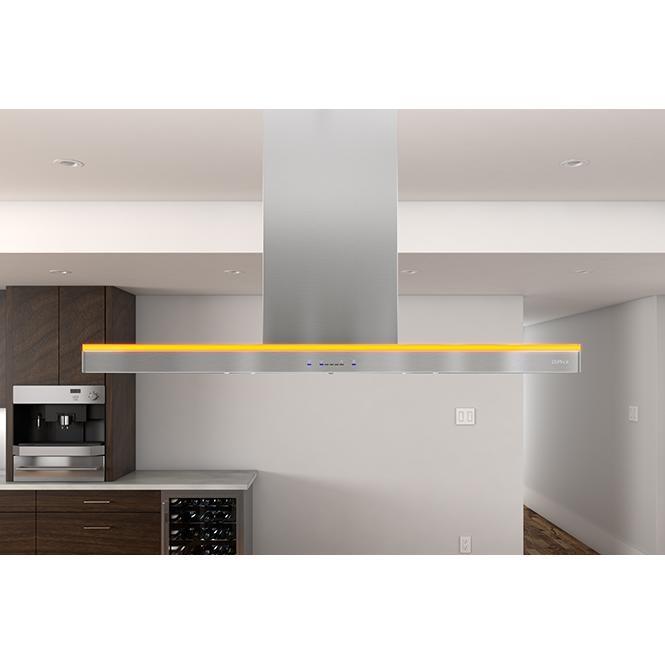

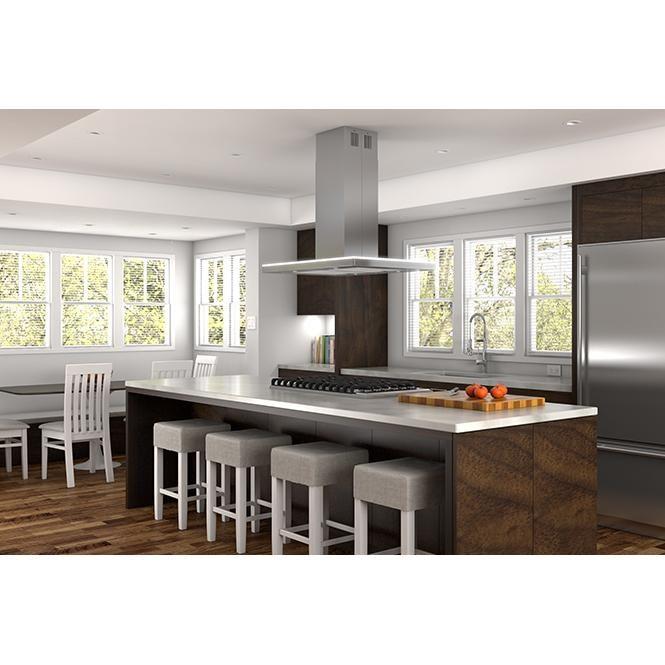

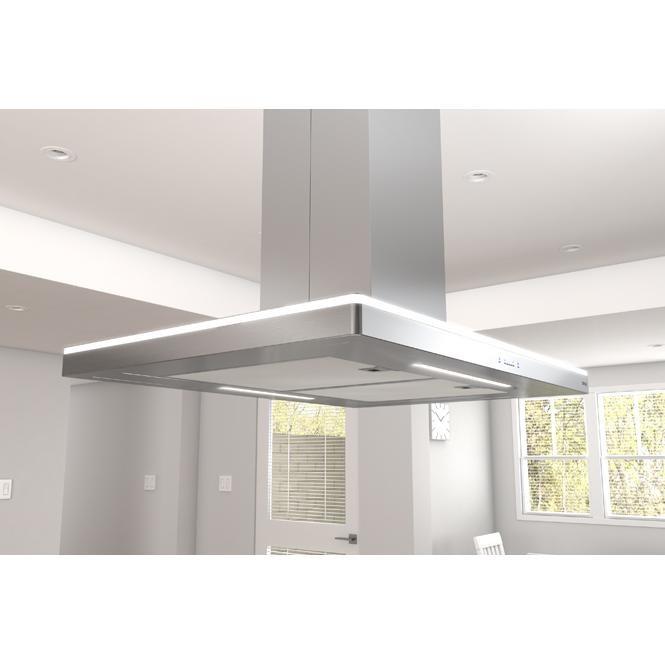

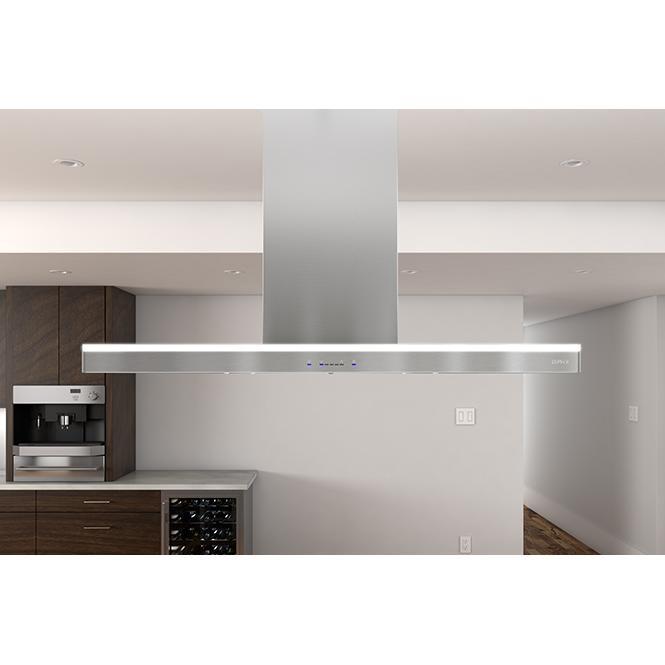

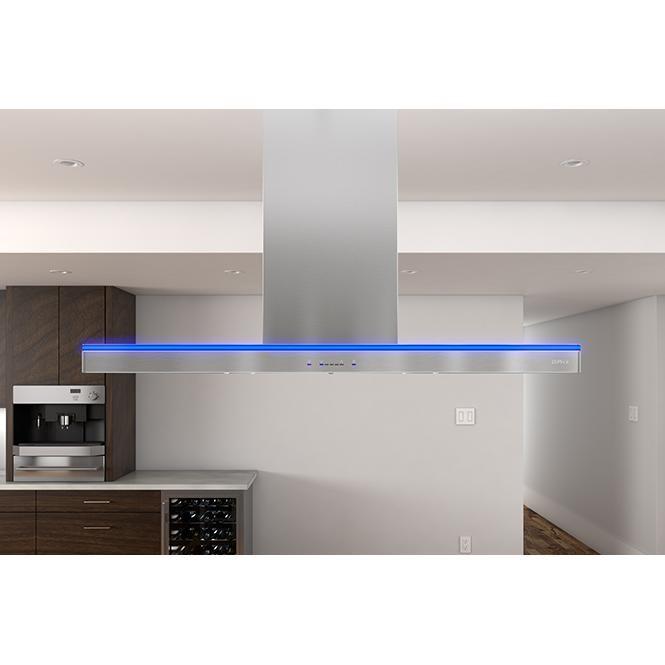

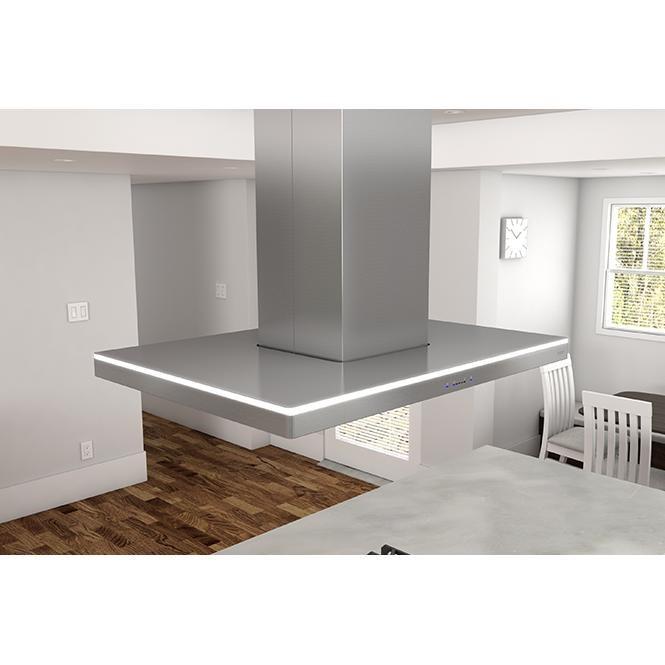

Zephyr Lucé 42" island hood. Boasting an elegant slice of sleek stainless steel married with the subtle glamor of ambient lighting in Cloud White, Deep Blue and Amber, the Lucé is the gorgeous future of range hoods, here today. It features ACT™ technology, BriteStrip™ LED lighting, ICON Touch® controls and a versatile recirculating option. It also includes an enhanced Quick-Lock installation system with magnetic duct covers.
Features
- ACT™ CONTROL TECHNOLOGY — Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
- ICON TOUCH™ CONTROLS — Seamlessly integrates into the hood’s stainless steel canopy and allows users to easily control the 5-speeds, delay-off function, auto reminders and Airflow Control Technology.
- LED LIGHT STRIP — LED light strip
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Videos
Highlights
Max. Blower CFM: 600 | 5 speed ICON Touch® controls | ACT Max. Blower CFM: 390, 290 | Dual-level lighting | Sones: 1-6 | Accommodates 9'8" ceiling height | 5 minute delay-off | Quick-lock installation with magnetic duct covers
Specifications
| UPC# | 646328005787 | Depth | 64.93 cm | Height | 33.18 cm |
| Width | 106.68 cm | Class Width | 42" | Additional Dimensions | For more information refer to dimension manual |
| Series Name | Lucé | Style | Island | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation | Island | Blower Included | Y |
| Airflow | 600 CFM | Energy Star Certified | N | Ducting Information | 6" round vertical ducting |
| Speeds | 5 Speeds | ||||
| Warranty Limited 1 year parts and labor | 3 years limited warranty on none-consumable parts | |||||
| Optional ZRC-00LC Recirculating Kit (w/ charcoal filters) | Z0F-C092 Charcoal Filter Replacement (Each) | Z1C-00LC Extension Duct Cover (For up to a 12' ceiling) | RED006 Airflow Reducer, reduces 25 CFM | MUA006A Universal Make-Up Air Damper | |||||
| Technologies LED BriteStrip | ACT™ Technology | ICON Touch® Controls | |||||
| Information 120 V | 3 A | 60 Hz | |||||
Accessories
• Z0F-C092 Charcoal Filter Replacement (Each)
• Z1C-00LC Extension Duct Cover (For up to a 12' ceiling)
• RED006 Airflow Reducer, reduces 25 CFM
• MUA006A Universal Make-Up Air Damper
