Description
About this Product

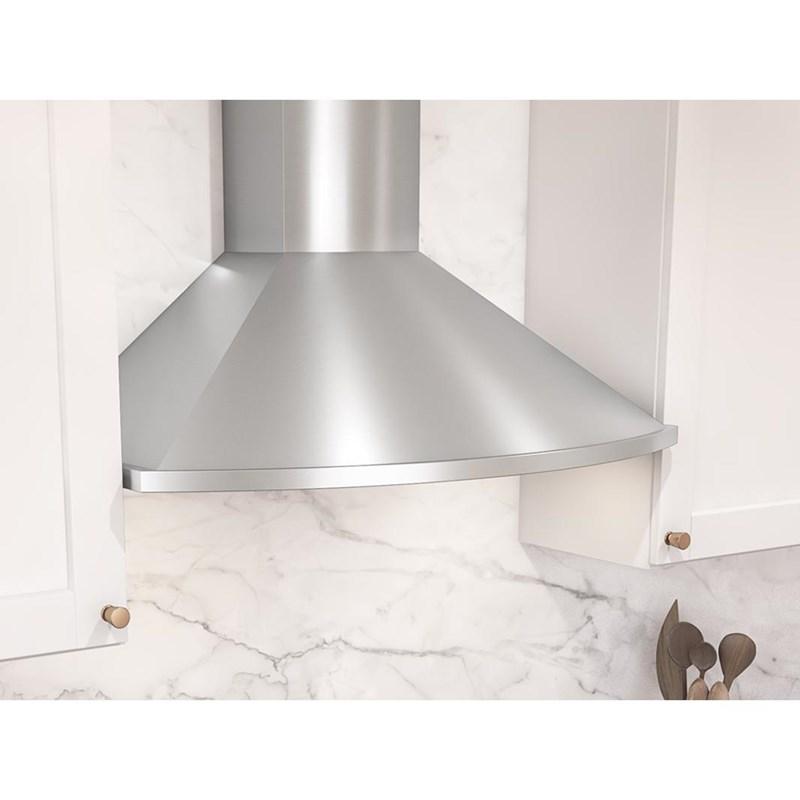

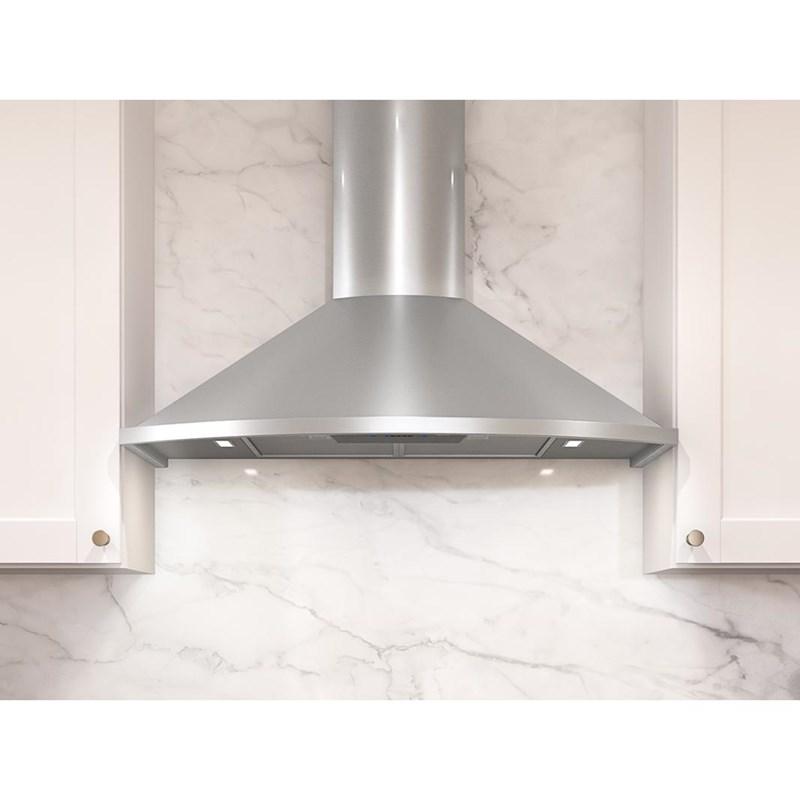

Savona’s semi-circular surfaces accentuate this range hood’s European design with delicate reflections of light and shadows. Available in stainless steel, powder-coated black, white, and the sleek alternative to stainless steel: black stainless steel. Savona features a robust 600-CFM blower, dual-level LumiLight LED lighting, ICON Touch® controls and our exclusive Airflow Control Technology (ACT™). Now available with an optional ADA-compliant remote control.
Features
- ACT™ CONTROL TECHNOLOGY — Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
- ICON TOUCH™ CONTROLS — Seamlessly integrates into the hood’s stainless steel canopy and allows users to easily control the 5-speeds, delay-off function, auto reminders and Airflow Control Technology.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Auto Delay-Off | Lighting: LumiLight LED, 6W x2 | Dual-Level Lighting | Filters: Aluminum Mesh x2 | Recirculating Option | Extension Duct Cover Option: Up to 12' Ceiling
Specifications
| Style | Chimney | Airflow | 600 CFM | Series Name | Core Savona |
| Color | Stainless Steel | Installation | Wall Mount | Blower Included | Y |
| Ducting Information | 6" Round | Width | 90.01 cm | Height | 27.94 cm |
| Depth | 49.53 cm | Additional Dimensions | Mounting Height Range: 26" - 34" | Class Width | 36" |
| UPC# | 646328011030 | Warranty | 3 years parts, 1 year labor | ||
| Speeds Speed Levels: 5* | Blower CFM (Min. - Max.): 200 - 600 | Sones (Min. - Max.): 1 - 6 | ACT 390 CFM (Min. - Max.): 200 - 390 | ACT 290 CFM (Min. - Max.): 200 - 290 | *When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds | |||||
| Technologies Airflow Control Technology™ (ACT™) | ICON Touch® Controls | |||||
| Information 120V, 60Hz at Max. 4A | |||||
| Optional Wireless Remote Control Kit: RC-0002 | Recirculating Kit: ZRC-00SV | Extension Duct Cover: Z1C-01SA (SS) | Make-Up Air Kit: MUA008A | Baffle Filter Kit (2 filters): Z0F-B001 | |||||
| Information ADA Compliant with remote accessory | |||||
Accessories
• Recirculating Kit: ZRC-00SV
• Extension Duct Cover: Z1C-01SA (SS)
• Make-Up Air Kit: MUA008A
• Baffle Filter Kit (2 filters): Z0F-B001
