Description
About this Product

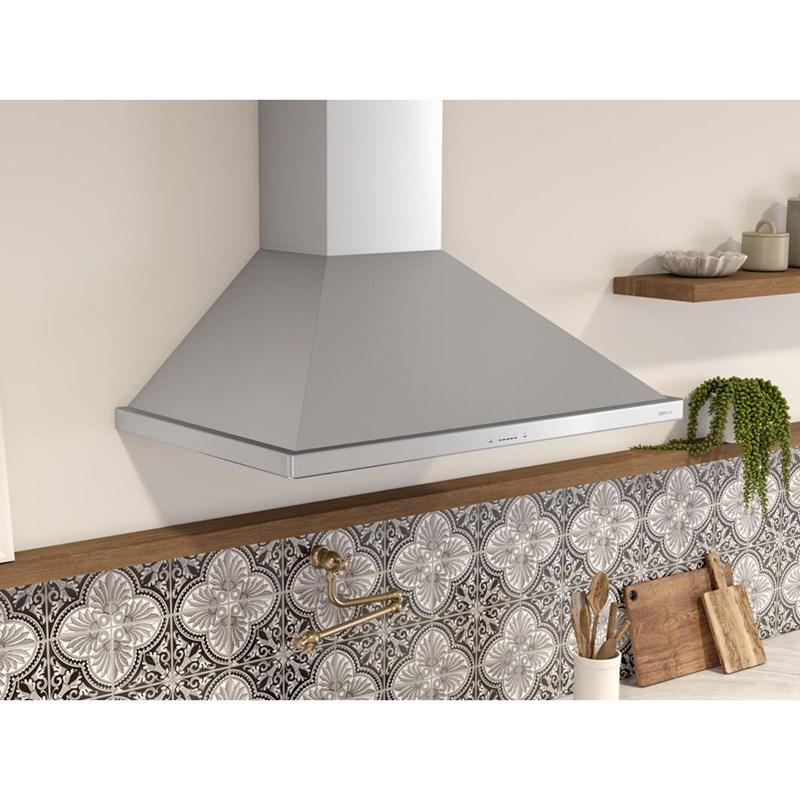

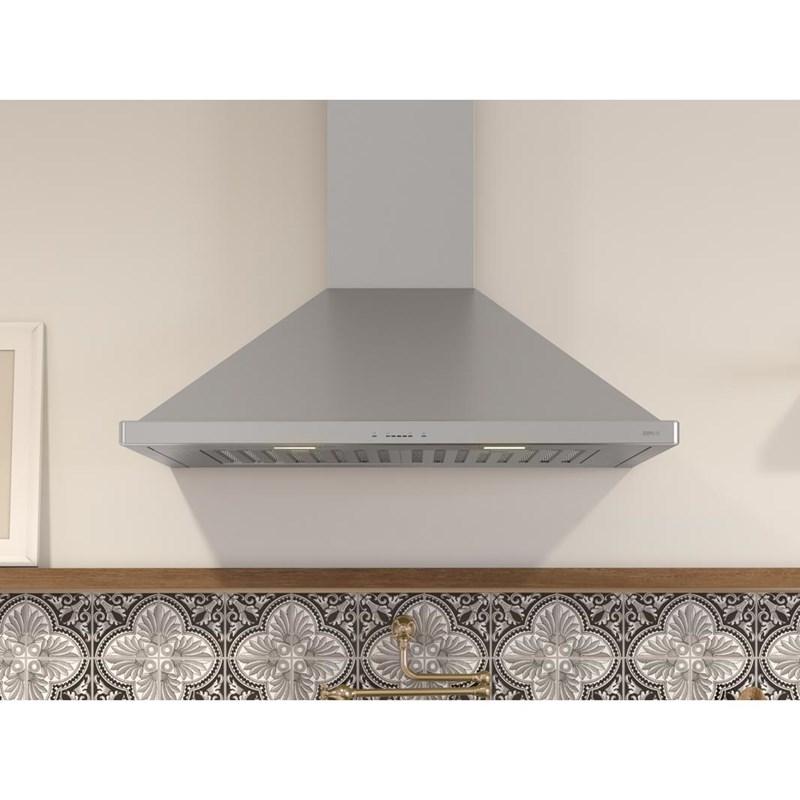

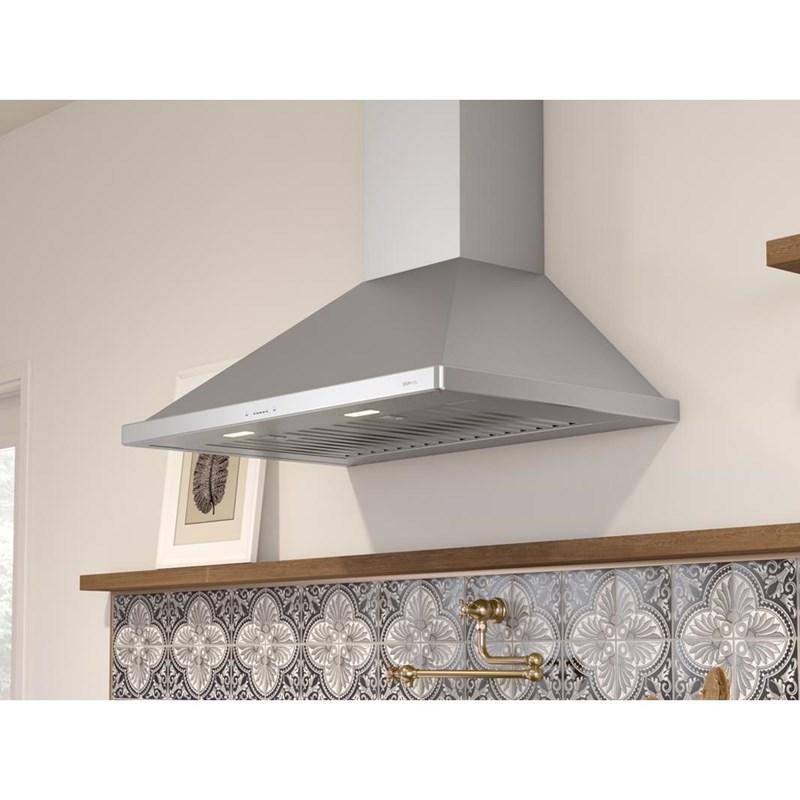

The Siena Wall ENERGY STAR® range hood is packed with power. With a 400-CFM blower and Airflow Control Technology™ (ACT™), this ENERGY STAR-certified hood has a versatile range of features perfect for any kitchen. Featuring LumiLight LED lights, ICON Touch® controls, and an optional extension duct cover accessory, clearing the air is as simple as the touch of a button.
Features
- ACT™ CONTROL TECHNOLOGY — Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
- ICON TOUCH™ CONTROLS — Seamlessly integrates into the hood’s stainless steel canopy and allows users to easily control the 5-speeds, delay-off function, auto reminders and Airflow Control Technology.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
Auto Delay-Off | Lighting: LumiLight LED, 7W x2 | Filters: Hybrid Baffle x2 | Extension Duct Cover Option: Up to 12' Ceiling
Specifications
| UPC# | 646328011603 | Depth | 55.72 cm | Height | 69.85 cm |
| Width | 76.04 cm | Class Width | 30" | Additional Dimensions | Mounting Height Range: 24" - 34" |
| Style | Chimney | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Installation | Wall Mount | Blower Included | Y | Airflow | 400 CFM |
| Energy Star Certified | Y | ||||
| Warranty 1-Year warranty on labor | 3-Year warranty on parts | |||||
| Optional Extension Duct Cover: Z1C-00SI | Stainless Steel Telescopic Backsplash: AK1710 | |||||
| Series Name Siena | Core Collection | |||||
| Information cULus | |||||
| Ducting Information Vertical Internal Blower: 8" Round | Horizontal Internal Blower: 8" Round | |||||
| Speeds 5 Speed Levels | Blower CFM (Min. - Max.): 200 - 400 | Sones (Min. - Max.): 2 - 6.5 | ACT 290 CFM (Min. - Max.): 200 - 290 | |||||
| Technologies ACT™ Technology | ICON Touch® Controls | LumiLight LED Lighting | |||||
| Information 120V, 60Hz at Max. 1.3A | |||||
Accessories
• Extension Duct Cover: Z1C-00SI
• Stainless Steel Telescopic Backsplash: AK1710
• Stainless Steel Telescopic Backsplash: AK1710
