Description
About this Product

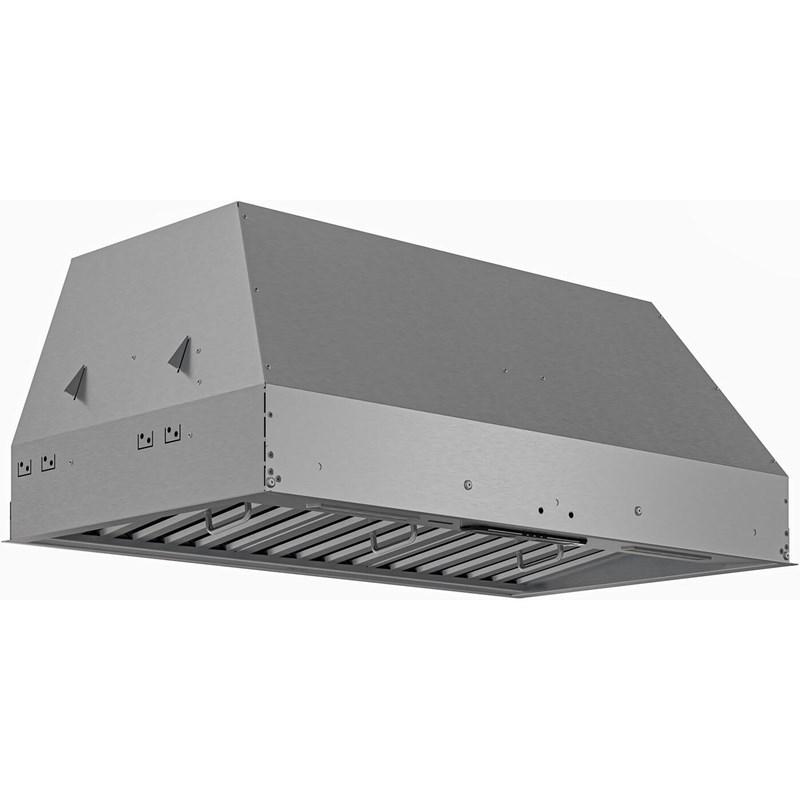

Smart. Simple. Built for Every Project: With near-silent performance, SmartSense technology, and Wi-Fi, Bluetooth, and voice activation capabilities, the HBN3 series offers the perfect blend of features, functionality, and value for a more enjoyable cooking experience.
Features
- FEATURES - HBN3 — • Powered by an internal blower system with a maximum of 650 CFM.
• Near-silent performance at less than 0.3 sones on low speed.
• SmartSense technology uses infrared sensors to monitor heat from the cooking surface and automatically adjusts the hood fan speed to eliminate heat, CO2, and other cooking emissions.
• Wi-Fi, Bluetooth, and voice activation capabilities enable hands-free operation; also compatible with the BEST Kitchen app.
• Single-person installation with the EZ Install bracket system.

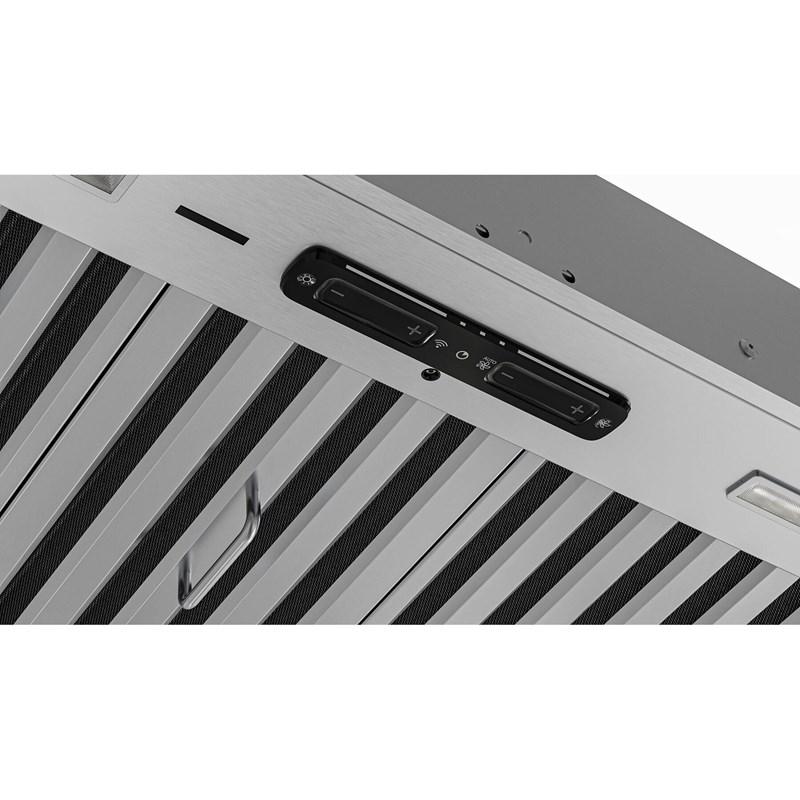

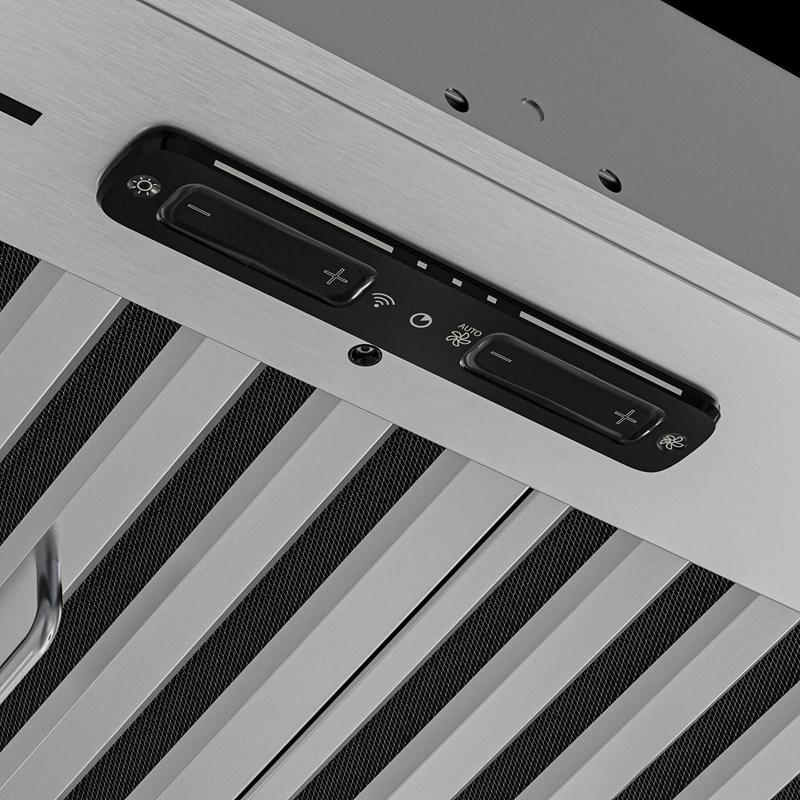

• Capacitive touch slider control provides four fan speeds and four LED lighting levels.

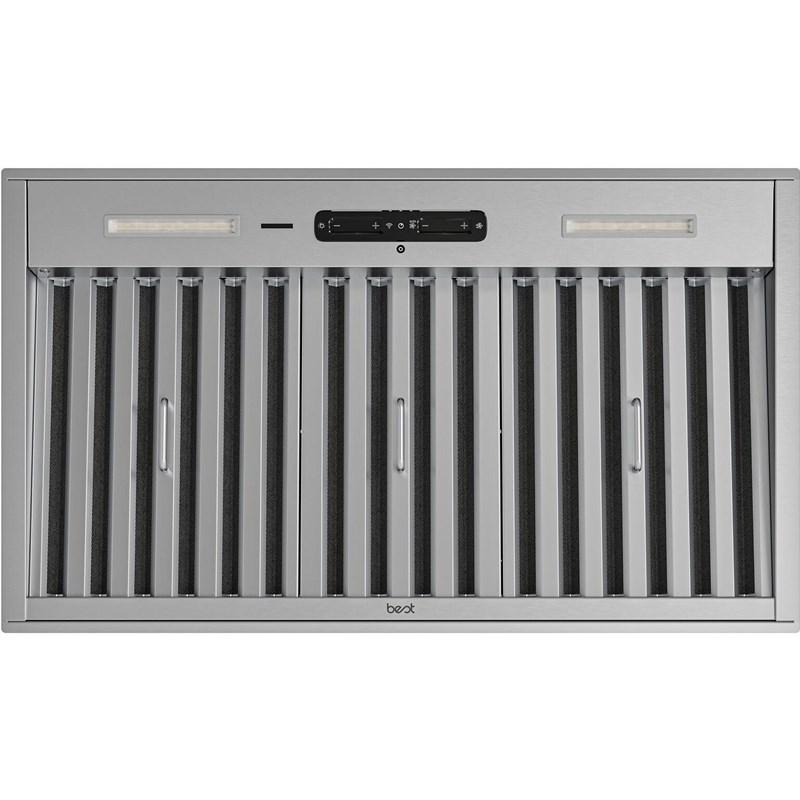

• Hybrid Baffle™ filters offer full coverage to remove smoke, odors, and pollutants.
• Code Ready Technology® (CRT) allows airflow limitation to 300 or 400 CFM to meet local make-up air code requirements.
• The Heat Sentry® safety feature automatically adjusts blower speed if exhaust temperatures exceed 200°F, protecting you and your home.
• Compatible with 8" or 3-1/4" x 10" ducting; supports vertical (round) or horizontal (rectangular only) installation.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
Delay-Off | Filter Clean Reminder | Filter Type: Perimeter with Mesh | Control Type: Touch Slider | Lighting Type: LED Modules (6W per Module) | 2 Lights | 4 Lighting Levels | Max Blower CFM: 650
Specifications
| UPC# | 26715271306 | Bluetooth | Y | Wi-Fi | Y |
| Speeds | 4 Speeds | Warranty | 5 Years Parts, 2 Years Labor | Included | Backdraft Damper |
| Depth | 59.69 cm | Height | 35.56 cm | Width | 119.06 cm |
| Class Width | 48" | Additional Dimensions | Cutout W x D: 46 1/2"W x 22 7/8"D | Series Name | HBN3 |
| Style | Custom Insert | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Installation | Built-In | Blower Included | Y | Airflow | 1200 CFM |
| Ducting Information Duct Size: 8" or 3 1/4" x 10" | Duct Direction: Vertical (round) or Horizontal (rectangular only) | |||||
| Technologies Heat Sentry™ | Wi-Fi / Bluetooth Connectivity | Voice Control | SmartSense | BEST Kitchen app | |||||
| Optional | |||||
| Information Amps @ 120V: 3.8 (HBN33096SS, HBN33696SS), 7.1 (HBN348212SS) | Electrical Connection: Direct Wire | |||||
Accessories
Backdraft Damper
