Description
About this Product
Designed of brushed stainless steel, the HBN1 powerpack insert series has a clean, smooth look to achieve a built-in, custom appearance. Protect the full bottom of your cabinetry with depth adjustability up to 15” deep. It features a 4-speed electronic control with an automatic smart sensor, voice activation, and bright LED lighting illuminating the cooktop, and easy install clips for single-person installation. HBN1 series delivers unparalleled performance with a powerful 650 Max Blower CFM.
Features
- FEATURES - HBN1 — • SmartSense® technology provides automated ventilation to remove odors and pollutants.
• Voice activation via Wi-Fi connectivity for hands-free operation.
• Flush, built-in design fits seamlessly into almost any kitchen cabinet.
• Powerful 650 Max CFM blower operates at less than 1 sone at normal speed.
• 4-speed backlit soft-touch control.
• EZ Install bracket system enables easy single-person installation.
• Code Ready Technology® (CRT) allows airflow limitation to 300 or 400 CFM to meet local codes or make-up air requirements.
• Bright, 3-level heat-resistant LED modules enhance your cooking experience.

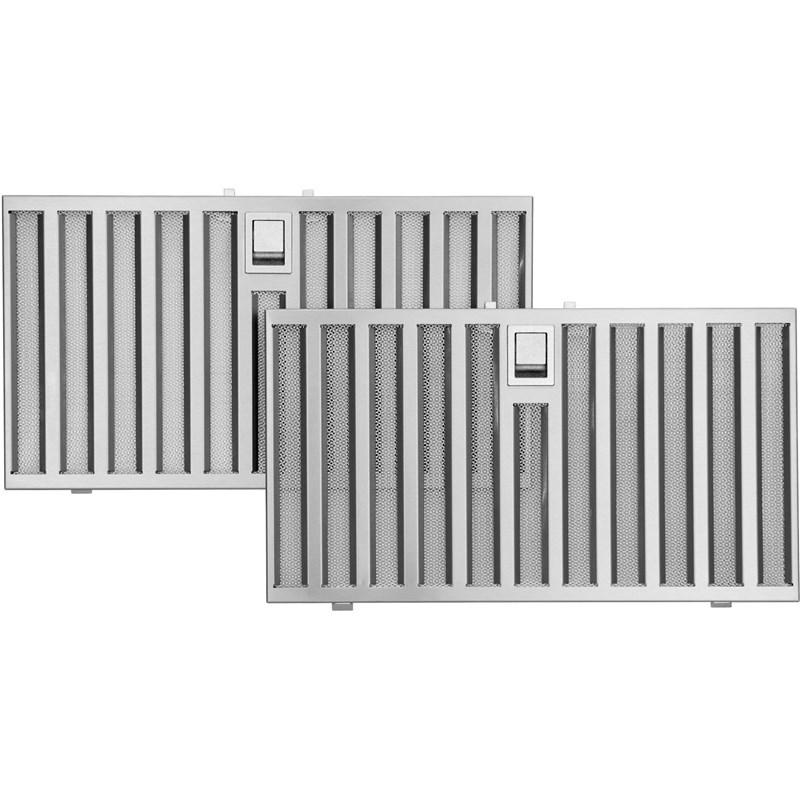

• Dishwasher-safe Hybrid Baffle™ filters with a quick-release latch for easy removal.
• Stainless steel liner extension fits 12" depth cabinets; extensions are available for cabinets up to 15” deep.
• Compatible with optional universal make-up air dampers (MD6TU, MD8TU, MD10TU) to replace air exhausted from the house only when the hood is turned on, helping with ventilation and reducing energy consumption.
• Optional non-ducted recirculation kit and filters are available for indoor exhaust recirculation.
• ADA compliance installation available with the HAWRK5 low-voltage wiring and wall switch kit, or via Wi-Fi-enabled voice assistance or smartphone app.
Documents
Product Sheet (en)

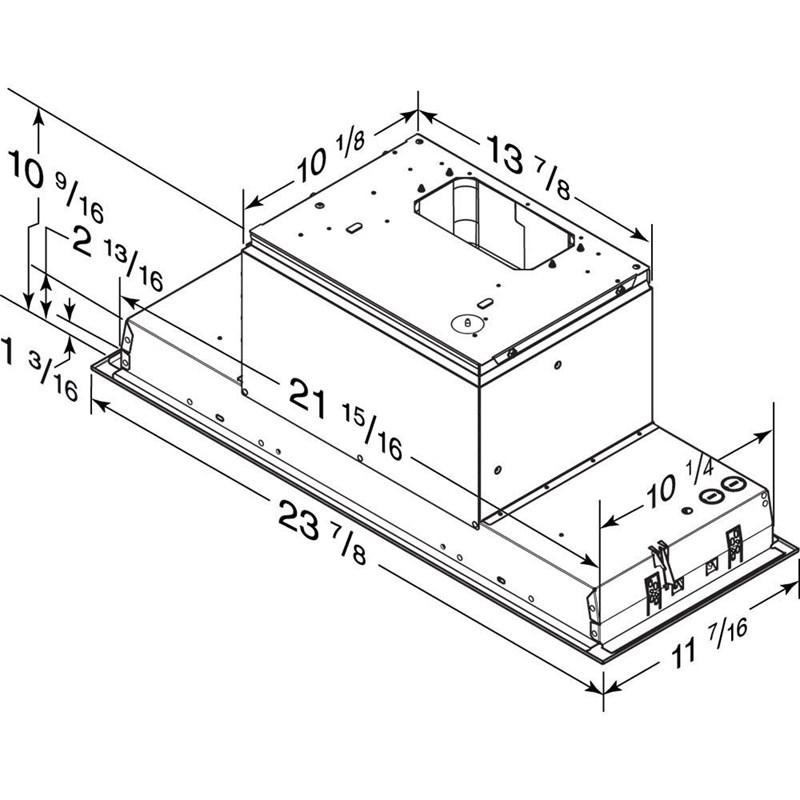

Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Videos
HBN1 SERIES BUILT-IN POWER PACK INSERT RANGE HOOD W/LED LIGHT
Highlights
Finish Brushed Stainless Steel (Grade 430) | Lighting Type: LED Bulbs | 2 Lights | Lighting Levels: 3 | Lighting Bulbs Included | Control Type: Electronic Soft Touch | Delay-Off | Filter Clean Reminder | Filter Type: Hybrid Baffle
Specifications
| Warranty | 5 Years Parts / 2 Years Labor | Included | Backdraft Damper | Depth | 29.05 cm |
| Height | 26.83 cm | Width | 75.88 cm | Class Width | 30" |
| Series Name | HBN1 | Style | Custom Insert | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation | Built-In | Blower Included | Y |
| Airflow | 650 CFM | Wi-Fi | Y | Speeds | 4 Speeds |
| Bluetooth | Y | ||||
| Optional ADA Kit: HAWRK5 | Fillers for Cabinet Depth: HADTBN24 (for HBN1246SS) | Adjustment 11 7/16" - 15" HADTBN30 (for HBN1306SS), (set of 7) HADTBN36 (for HBN1366SS) | Universal MUA Damper: MD6TU, MD8TU or MD10TU | Power Cord Kit: HCK44 | Non-Duct Kit: | HARKBN24 (for HBN1246SS) | HARKBN30 (for HBN1306SS) | HARKBN36 (for HBN1366SS) | Charcoal Filters S99010464-124 (for HBN1246SS) | S99010464-130 (for HBN1306SS) | S99010464-136 (for HBN1366SS | |||||
| Ducting Information Duct Size: 6", 8" or 3 1/4" x 10" | Duct Direction Vertical (round or rectangular) or Horizontal (rectangular only | |||||
| Technologies Heat Sentry™ | Wi-Fi / Bluetooth Connectivity | Voice Control | SmartSense | BEST Kitchen app | |||||
| Information Amps @ 120V: 4.0 | Electrical Connection: Direct Wire | |||||
Accessories
• Fillers for Cabinet Depth: HADTBN24 (for HBN1246SS)
• Adjustment 11 7/16" - 15" HADTBN30 (for HBN1306SS), (set of 7) HADTBN36 (for HBN1366SS)
• Universal MUA Damper: MD6TU, MD8TU or MD10TU
• Power Cord Kit: HCK44
• Non-Duct Kit:
• HARKBN24 (for HBN1246SS)
• HARKBN30 (for HBN1306SS)
• HARKBN36 (for HBN1366SS)
• Charcoal Filters S99010464-124 (for HBN1246SS)
• S99010464-130 (for HBN1306SS)
• S99010464-136 (for HBN1366SS
