Description
About this Product

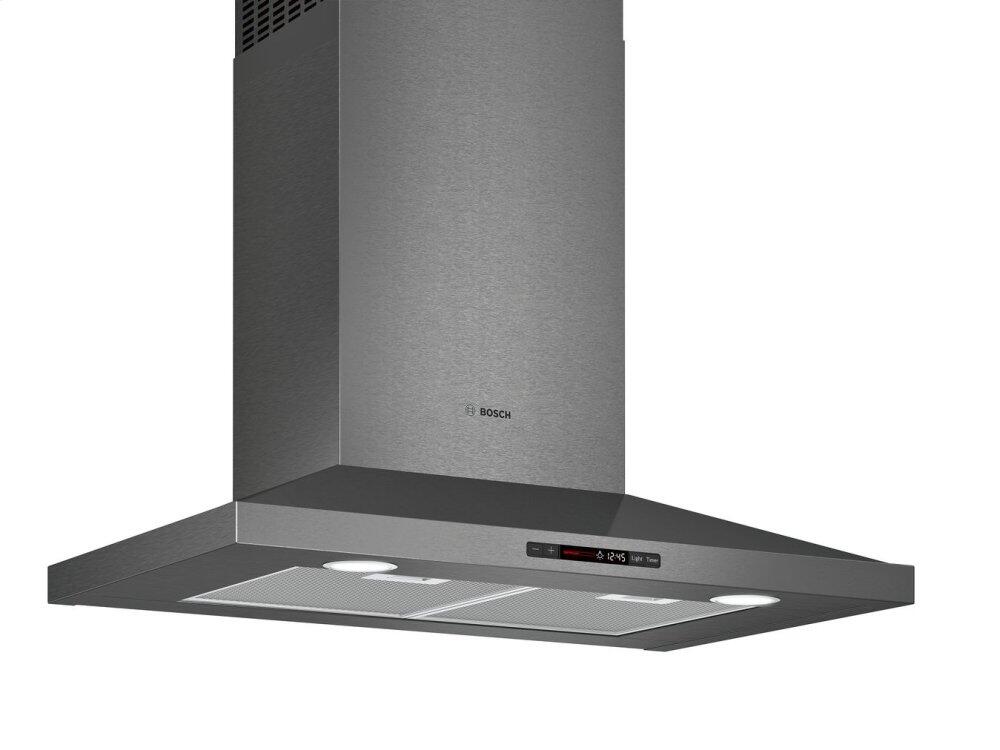

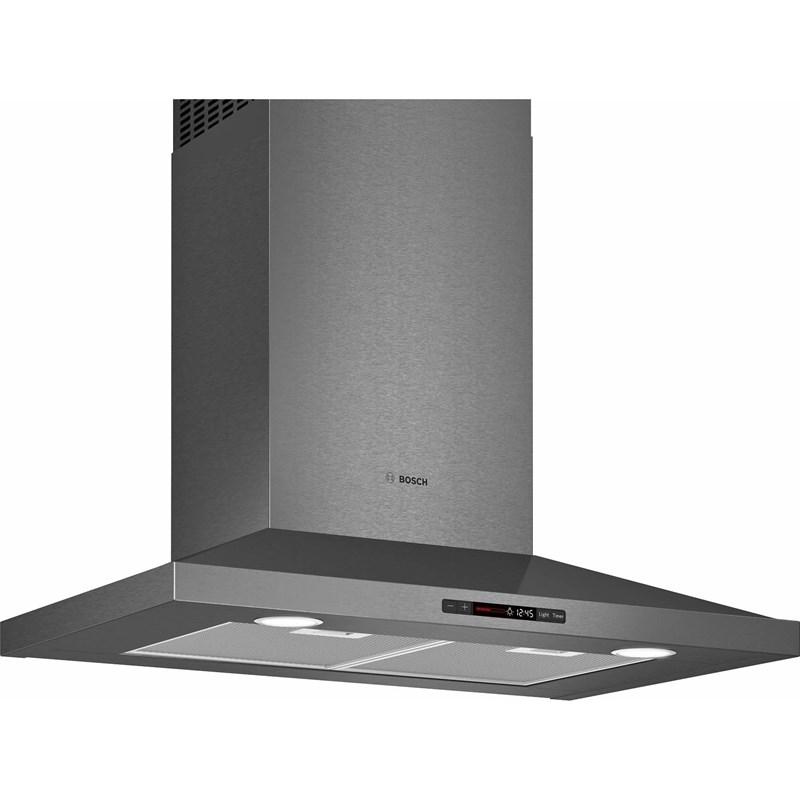

This Bosch 800 Series, 30-inch pyramid canopy chimney hood features a 600 CFM, 4-stage speed settings and LCD touch controls.
Features

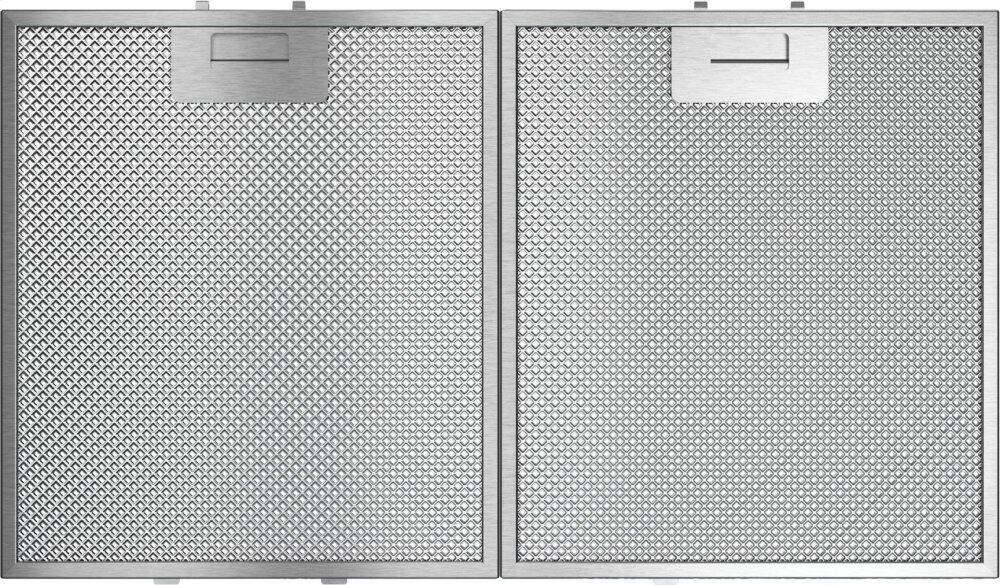

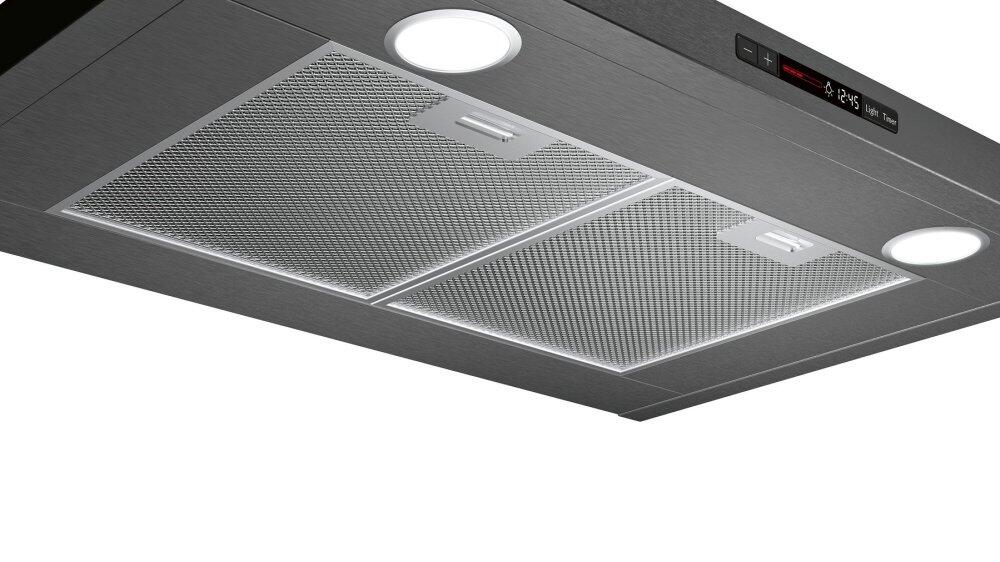

- DISHWASHER SAFE — Dishwasher safe filters with stainless steel covers

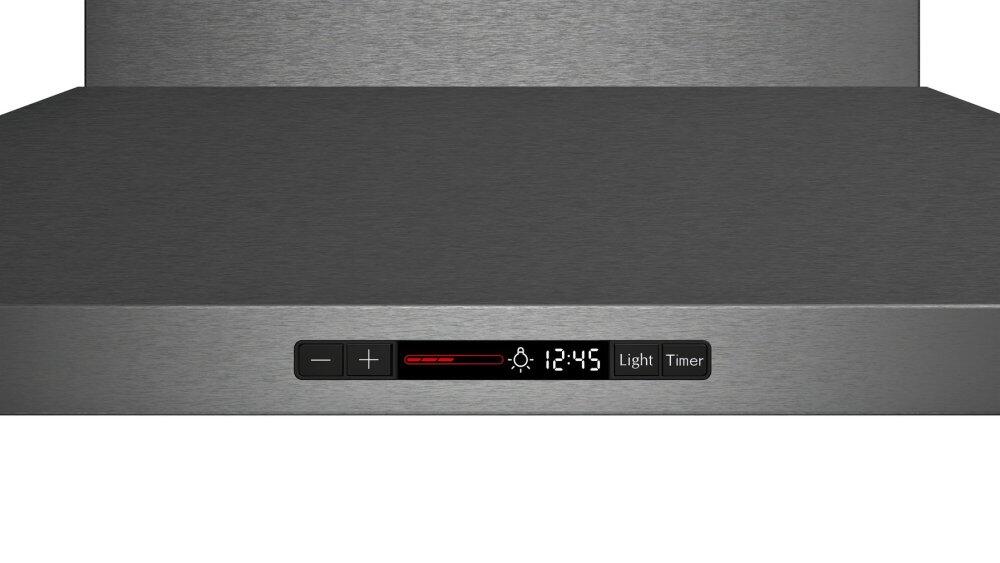

- TOUCH CONTROLS WITH LCD DISPLAY — Four speed touch controls with lcd display
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Energy Guide (en)
Highlights
Quiet blower 4.6 sones / 178 CFM low to 9.9 sones / 600 CFM high | Black stainless steel guards against scratches and fingerprints | LCD touch display controls | Dishwasher safe mesh filters | Pyramid chimney design creates an inspiring focal point in the kitchen | Dimmable halogen lighting gives perfect illumination while cooking | Lighting can be used independently of ventilation for various tasks | Telescoping chimney design fits standard ceilings 8'-9' tall
Specifications
| UPC# | 825225946717 | Weight | 22.23 kg | Depth | 50.0 cm |
| Height | 52.4 cm | Width | 76.2 cm | Class Width | 30" |
| Warranty | Limited 1 year parts and labor | Series Name | 800 | Style | Chimney |
| Manufacturer Color | Black Stainless Steel | Color | Black Stainless | Installation | Wall Mount |
| Blower Included | Y | Airflow | 600 CFM | Dishwasher-Proof Filters | Y |
| Speeds | 4-stage | ||||

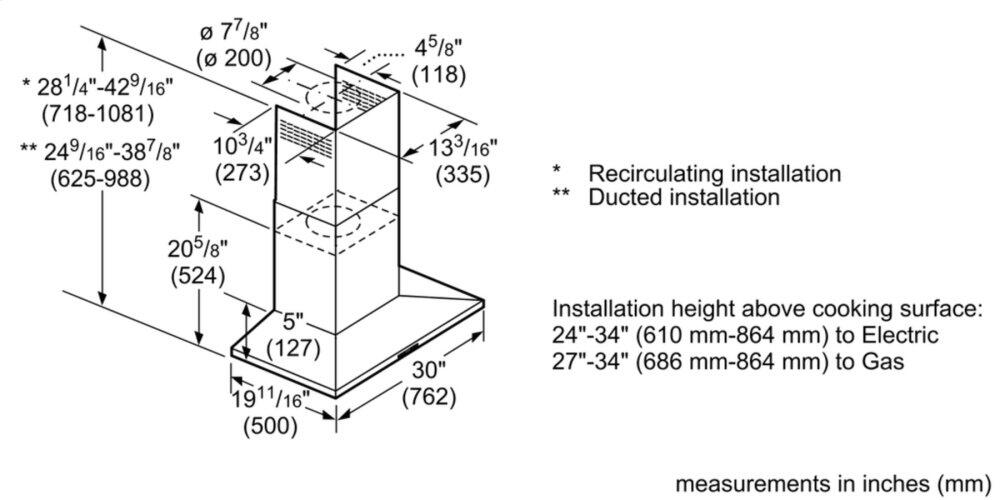

| Additional Dimensions Required distance above cooktop/range cooking surface: 24" Electric / 30" Gas | Overall appliance dimensions (width of canopy included) (HxWxD): 24 9/16"–38 7/8" / 28 1/4"–42 9/16" x 30" x 19 11/16" | |||||
| Optional HCIFILTUC Filter kit | HCREC5UC Recirculation kit | HCPEXT4UC Chimney extension for 9-11.5 ft. ceilings for use with HCP80641UC | |||||
| Ducting Information 8 inch round duct at discharge | Convertible: ducted /recirculating | |||||
| Information 120 V | 60 Hz | |||||
Accessories
• HCREC5UC Recirculation kit
• HCPEXT4UC Chimney extension for 9-11.5 ft. ceilings for use with HCP80641UC
