Description
About this Product

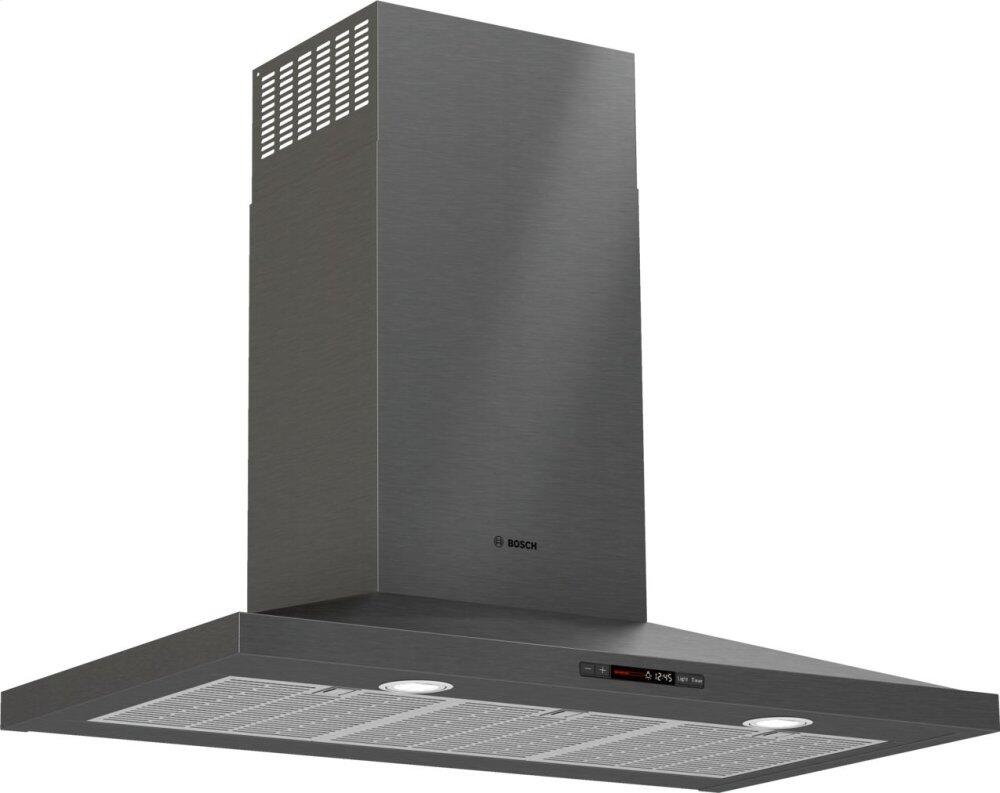

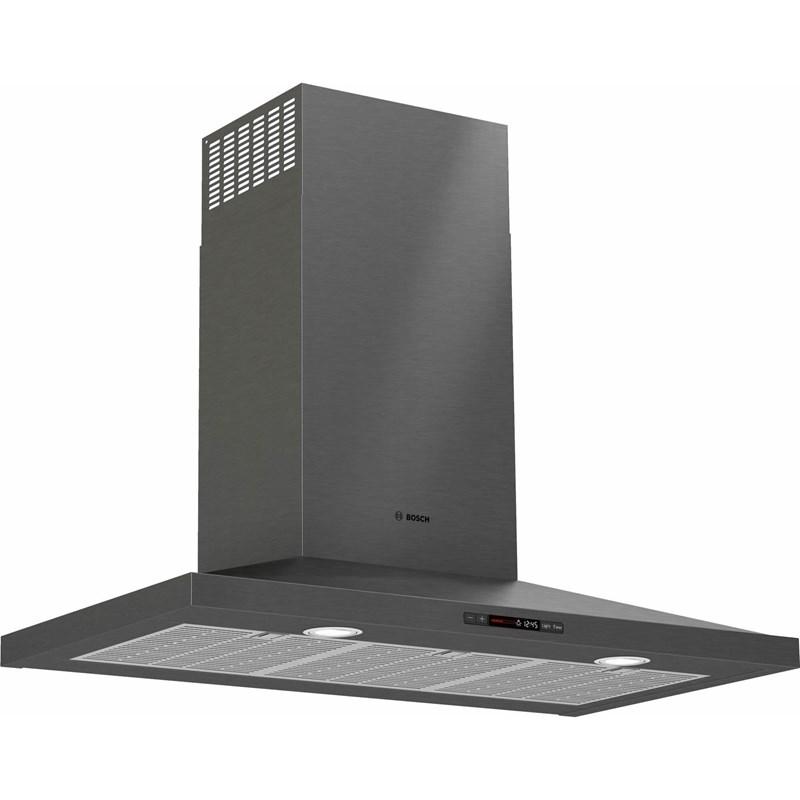

This Bosch 800 Series, 36-inch pyramid canopy chimney hood features a 600 CFM, 4-stage speed settings and LCD touch controls.
Features

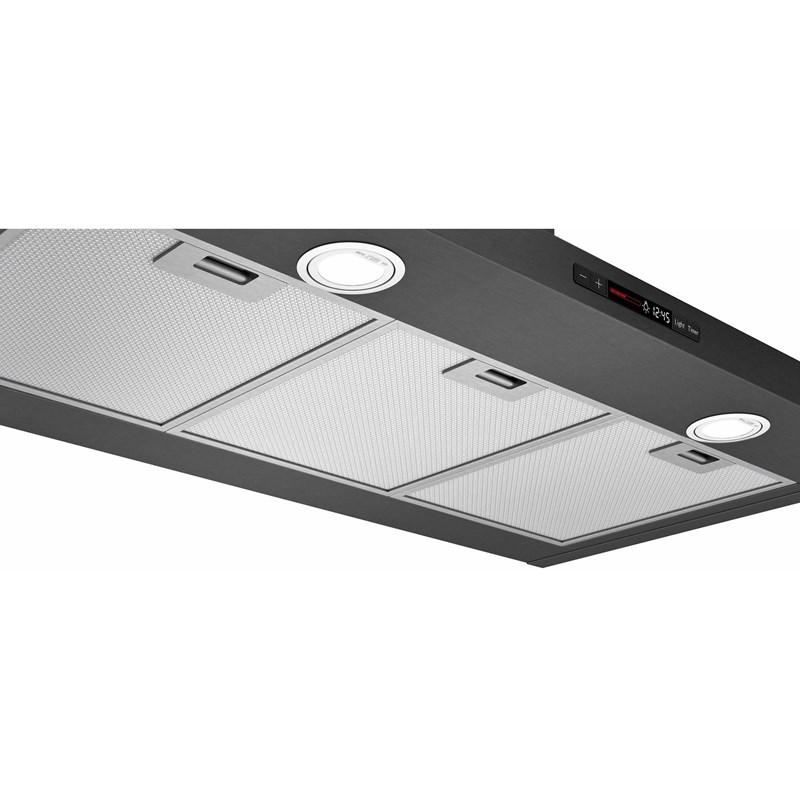

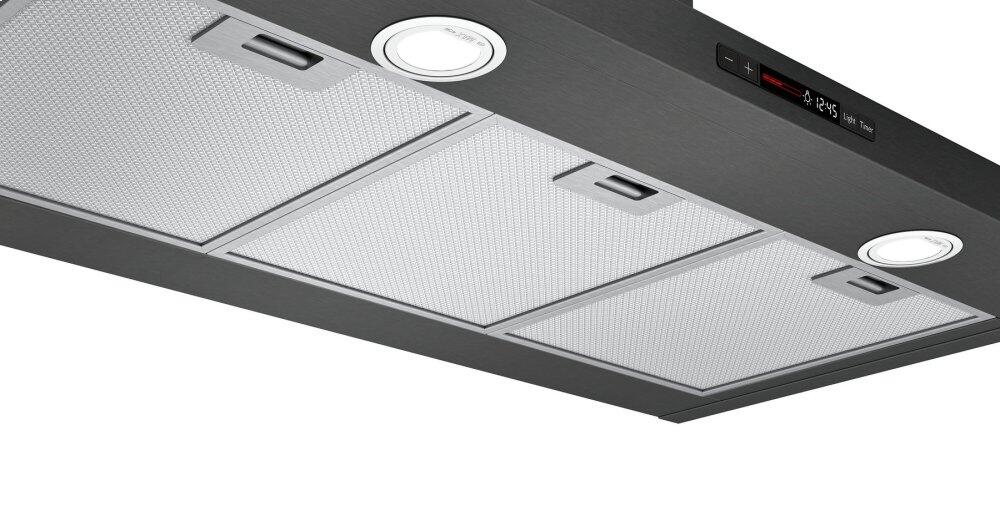

- DISHWASHER SAFE — Dishwasher safe filters with stainless steel covers

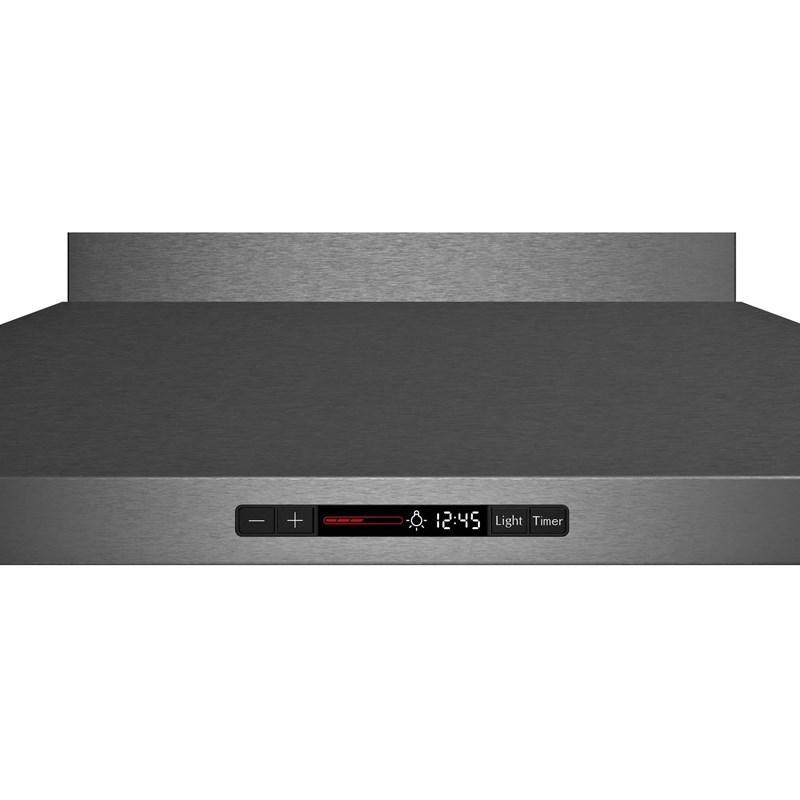

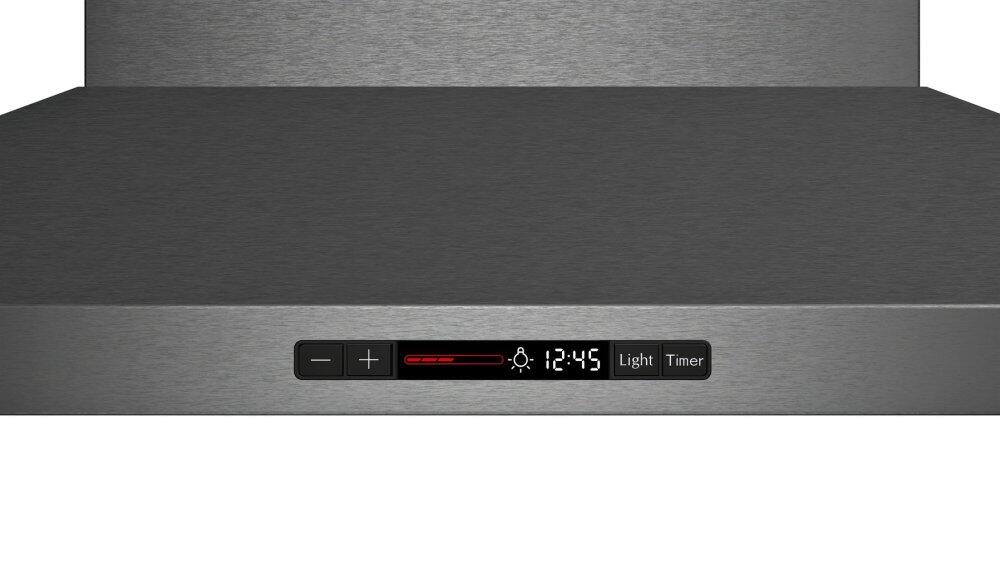

- TOUCH CONTROLS WITH LCD DISPLAY — Four speed touch controls with lcd display
- INTEGRATED BLOWER 600 CFM — 600 cfm centrifugal integrated blower included
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Quiet Blower 4.6 sones / 178 CFM Low to 9.9 sones / 600 CFM High | Black Stainless Steel Guards Against Scratches And Fingerprints | LCD Touch Display Provide Controls | Dishwasher Safe Mesh Filters | Pyramid Chimney Design Creates An Inspiring Focal Point In The Kitchen | Dimmable Halogen Lighting Gives Perfect Illumination While Cooking | Lighting Can Be Used Independently Of Ventilation For Various Tasks | Telescoping Chimney Design Fits Standard Ceilings 8'-9' Tall
Specifications
| UPC# | 825225959472 | Weight | 22.23 kg | Depth | 50.0 cm |
| Height | 52.4 cm | Width | 91.44 cm | Class Width | 36" |
| Warranty | Limited 1 Year Parts And Labor | Series Name | 800 | Style | Chimney |
| Manufacturer Color | Black Stainless Steel | Color | Black Stainless | Installation | Wall Mount |
| Blower Included | Y | Airflow | 600 CFM | Dishwasher-Proof Filters | Y |
| Speeds | 4-stage | ||||

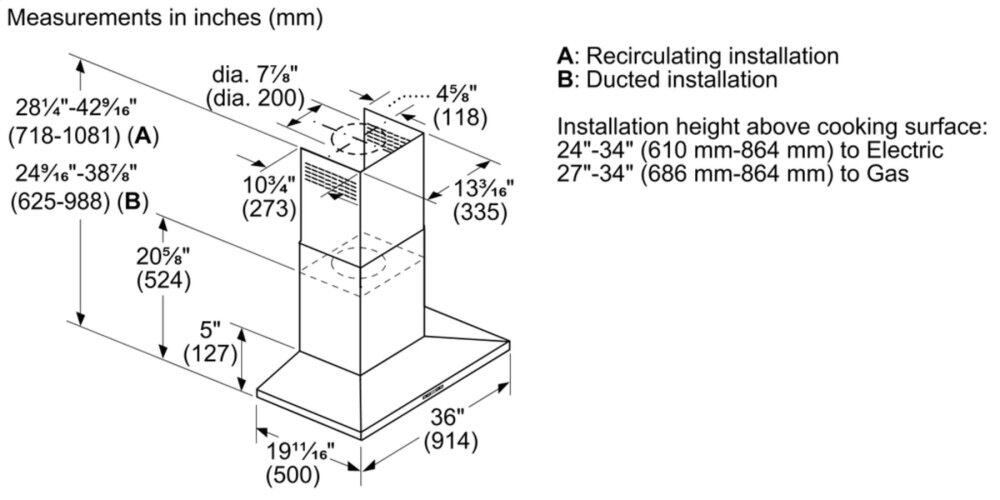

| Additional Dimensions Required distance above cooktop/range cooking surface: 24"–34" Electric / 27"–34" Gas | Overall appliance dimensions (width of canopy included) (HxWxD): 24 9/16"–38 7/8" / 28 1/4"–42 9/16" x 36" x 19 11/16" | |||||
| Optional HCIFILTUC Filter kit | HCREC5UC Recirculation kit | HCPEXT4UC Chimney extension for 9-11.5 ft. ceilings for use with HCP80641UC | |||||
| Ducting Information 8 inch Round Duct At Discharge | Convertable: Ducted / Recirculating | |||||
| Information 110 V | 60 Hz | |||||
Accessories
• HCREC5UC Recirculation kit
• HCPEXT4UC Chimney extension for 9-11.5 ft. ceilings for use with HCP80641UC
