Description
About this Product

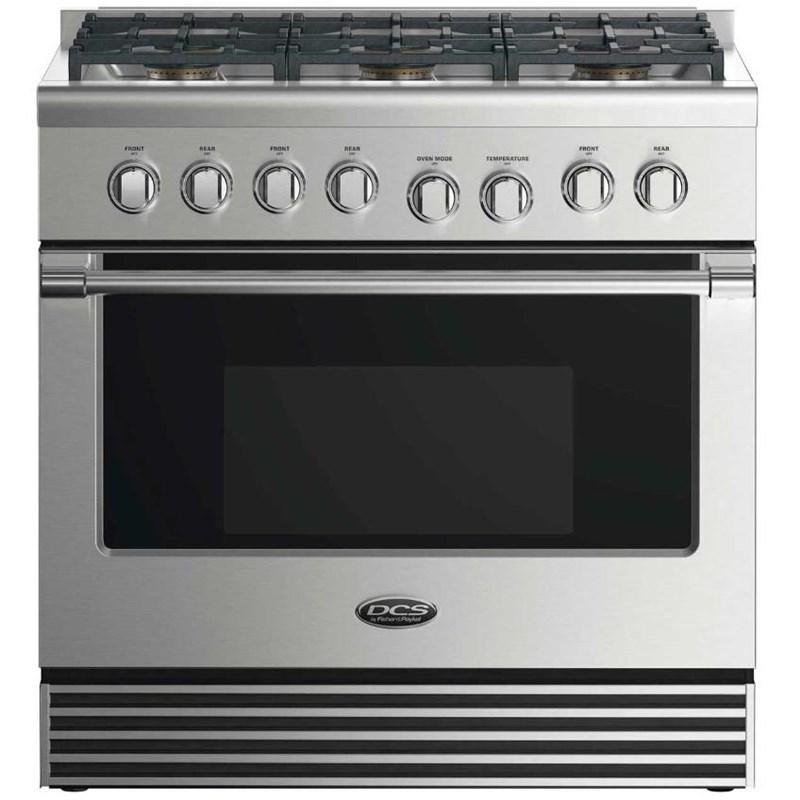

DCS by Fisher and Paykel 36" natural gas range with 6 burners. It features unique, patented Dual Flow Burners™ that let you fire up a fierce heat in an instant - and just as quickly turn it down to a precise full surface simmer with the gentlest of flames. Cooktop burners reach up to an extraordinary 23,500 BTU with total surface output reaching up to 121,000 BTU.
Features
- EASY TO CLEAN —
A continuous sealed cooktop surface coupled with a commercial-style stainless steel finish allow easy cleaning.

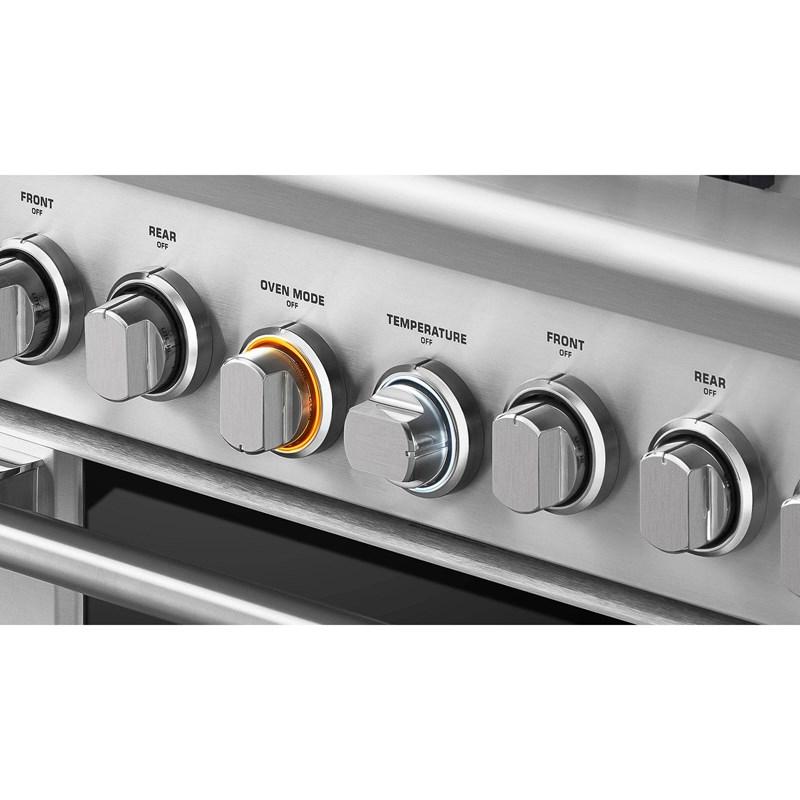

- INFORMATION AT A GLANCE — Two powerful incandescent lights brightly illuminate the inside of the oven. All control knobs have an illuminated halo system so you can see what’s happening at a glance.

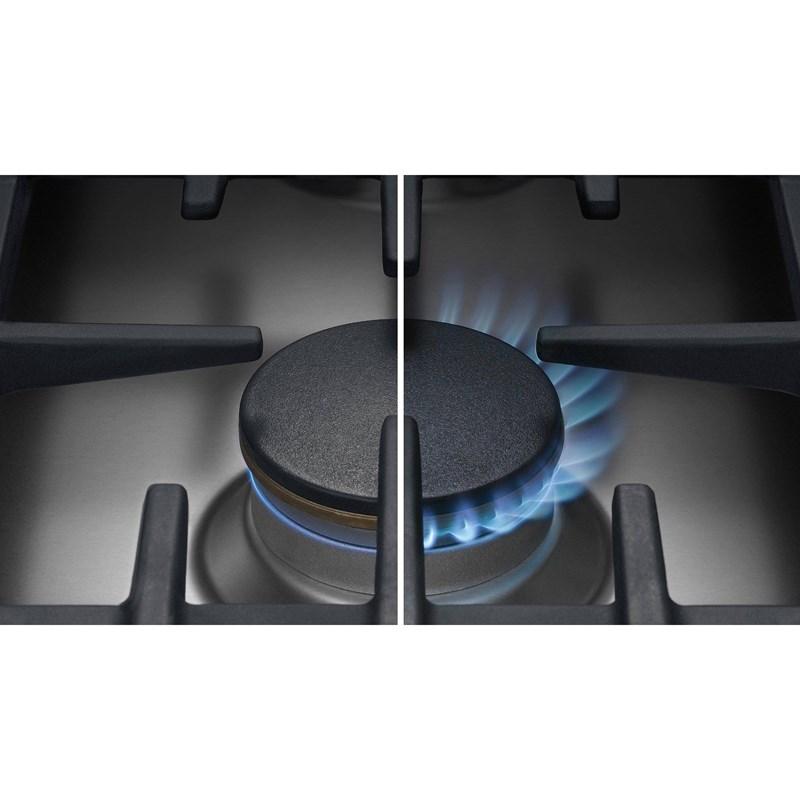

- PERFECT HEAT — Sealed Dual Flow Burners™ unique to DCS appliances, put you in control. The burner boils fast, yet you can also gently simmer on any burner at 140°F.
- TOTAL CONTROL —
From the highest to the lowest temperature settings you get precise control with the halo-illuminated cooktop dials. DCS Range ovens have electronic oven control for precise and consistent oven temperatures delivering superior performance.
- COOKING FLEXIBILITY —

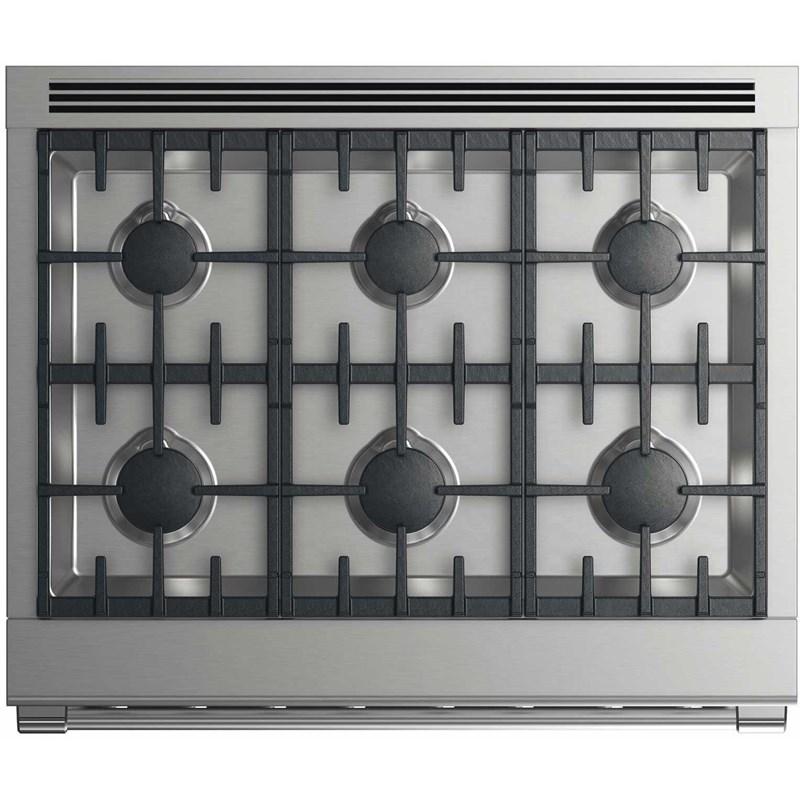

DCS Gas Range ovens have generous capacity, large enough for a family feast. The full extension telescopic racking system gives you smooth and easy access to the oven, which is large enough to hold full size baking sheets or a 20lb turkey. The cooktops unique grate design and high powered burners puts the flame where you need it and lets you boil faster or simmer gently anywhere on the cooktop.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
Main oven- Bake: 29,000 BTU | Main oven- Broil: 19,000 BTU | Dishwasher proof trivets | 3 x Full extention telescopic racks (main oven) | LED Halo control dials | Easy to Clean | Flat vent trim
Specifications
| Capacity (cu. ft.) | 5.3 cu. ft. | Number of Ovens | Single | Burners | Sealed |
| Burners/Elements | 6 | Height | 93.35 cm | Width | 91.12 cm |
| Depth (Without Handles) | 73.98 cm | Class Width | 36" | Digital Temperature Display | N |
| Downdraft Ventilation | N | Oven Light | Y | Convection | Y |
| Storage | N | Baking | N | Warming | N |
| Broiler | N | Fuel Type | Natural Gas | Installation Type | Freestanding |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | UPC# | 780405712141 |
| Warranty | Limited 2 Years parts and labor | ||||
| Programs Bake | Broil | Convection Bake | |||||
| Burners/Elements Output Back centre: 18,500 BTU | Back Left: 18,500 BTU | Back right: 18,500 BTU | Front centre: 18,500 BTU | Front Left: 23,500 BTU | Front right: 23,500 BTU | Total cooktop power: 121,000 BTU | |||||
| Information 120 V | 60 Hz | 15 A | |||||
| Additional Dimensions Max. overall height of range: 36 3/4" | Depth from rear of chassis to cabinetry face - projecting control panel: 25 1/8" | Depth from rear of chassis to cabinetry face - flush control panel: 27 11/16" | Height from top of countertop to top of pan supports: 1 9/16" | Height from top of countertop to top of - vent trim (if fitted) 1 3/4", angled vent trim (if fitted) 3 1/2" | Height from top of countertop to bottom of chassis: 35 1/4" | Adjustable feet height (min - max): 1/2" - 1 1/2" | Depth of open door to front control panel: 19 1/8" | |||||
| Technologies Dual Flow Burners™ | |||||
| Optional VS36 / VS1236 -36" Pro Hood | Square handle: AH-R36 | |||||
