Description
About this Product

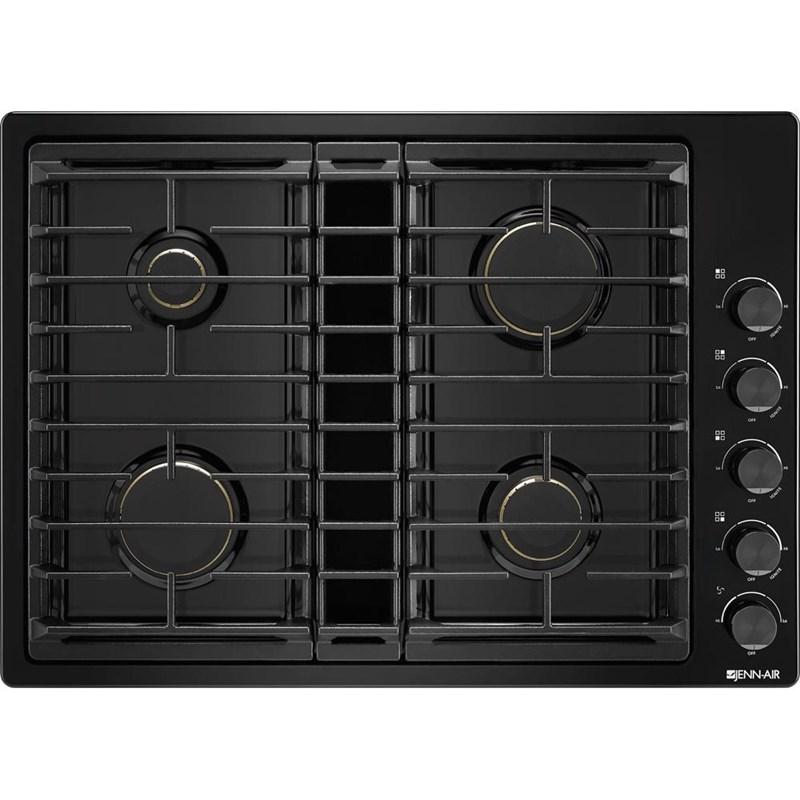

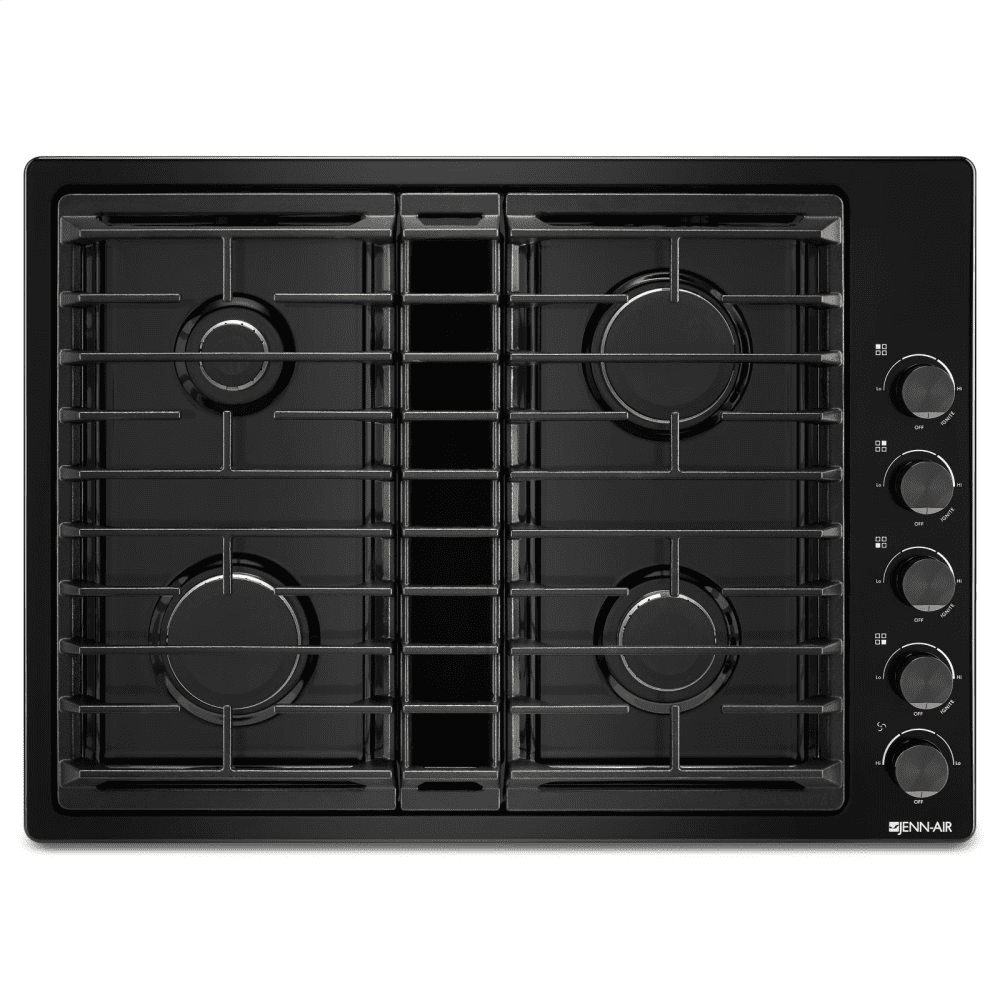

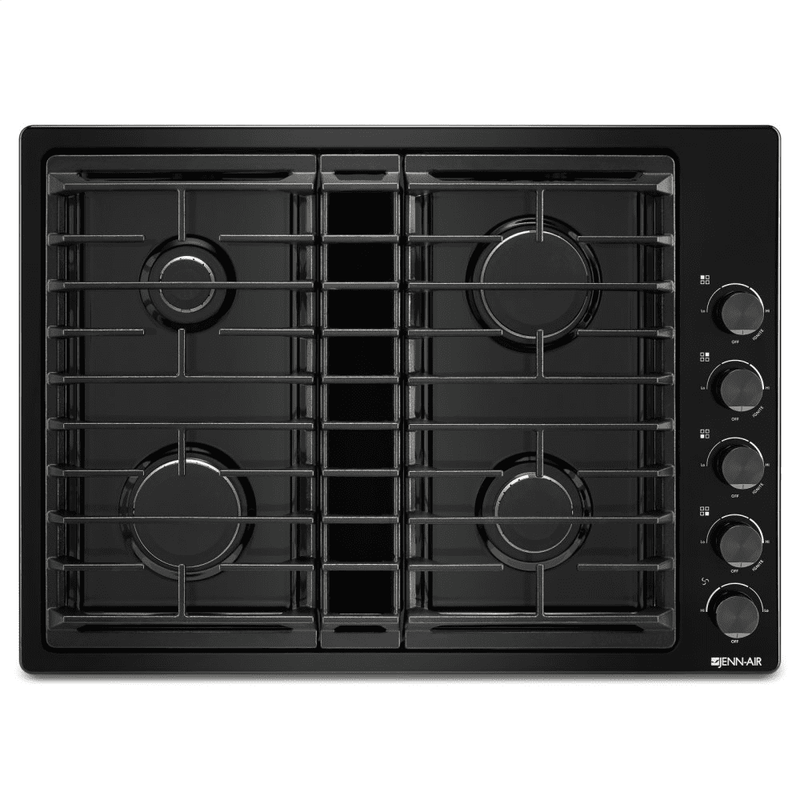

This JennAir® luxury gas downdraft cooktop features four sealed burners, including a 17,000 BTU ultra-high output burner. Its impressive JX3™ downdraft ventilation system quickly and efficiently clears the air without a hood.
Features
- JX3™ DOWNDRAFT VENTILATION SYSTEM WITH 3-SPEED FAN — The powerful JX3™ downdraft uses proximity ventilation to capture smoke and cooking odors right at the cooking surface, to powerfully clear the air without requiring a hood.
- 17,000 BTU ULTRA-HIGH OUTPUT BURNER — Enjoy the robust heat necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.
- CONVERTIBLE TO LP — This rangetop allows you to easily adapt your energy source from natural gas to propane.
- DURAFINISH™ PROTECTION — With excellence in every detail, DuraFinish® Protection helps keep your cooktop’s surface looking like new, resisting yellowing, staining and scratching.
- BRASS BURNERS WITH REMOVABLE BASE — Elegant brass burners effectively direct heat for desired cooking results and can be removed for easy cleaning.
- CONVERTIBLE TO DUCT-FREE VENTILATION — Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Videos
Highlights
Brass Burners with Removable Base | Convertible to Duct-Free Ventilation | CFM Rating: 310 | Dishwasher Safe
Specifications
| Surface Features | Porcelain Coated Steel | Burners | Sealed | Burners/Elements | 4 |
| Height | 10.16 cm | Width | 76.2 cm | Class Width | 30" |
| Weight | 20.87 kg | Depth | 54.61 cm | Type | Built-In |
| Fuel Type | Natural Gas | Manufacturer Color | Black | Color | Black |
| ADA Compliant | Y | Warranty | Limited 2 Years Parts and Labor | Downdraft Ventilation | Y |
| UPC# | 883049414454 | ||||
| Power Output Left Front Element-Burner Power: 17,000 BTU | Left Rear Element-Burner Power: 5,000 BTU | Right Front Element-Burner Power: 10,000 BTU | Right Rear Element-Burner Power: 15,000 BTU | |||||
| Information 120 V | 40 A | 60 Hz | |||||
| Additional Dimensions Cutout Depth: 19 15/16" | Cutout Height: 4" | Cutout Width: 28 5/8" | |||||
| Included LP Convertible Kit | Power Cord | |||||
| Technologies JX3™ Downdraft Ventilation System with 3 Speeds | DuraFinish® Protection | |||||
Accessories
• LP Convertible Kit
• Power Cord
• Power Cord
