Description
About this Product

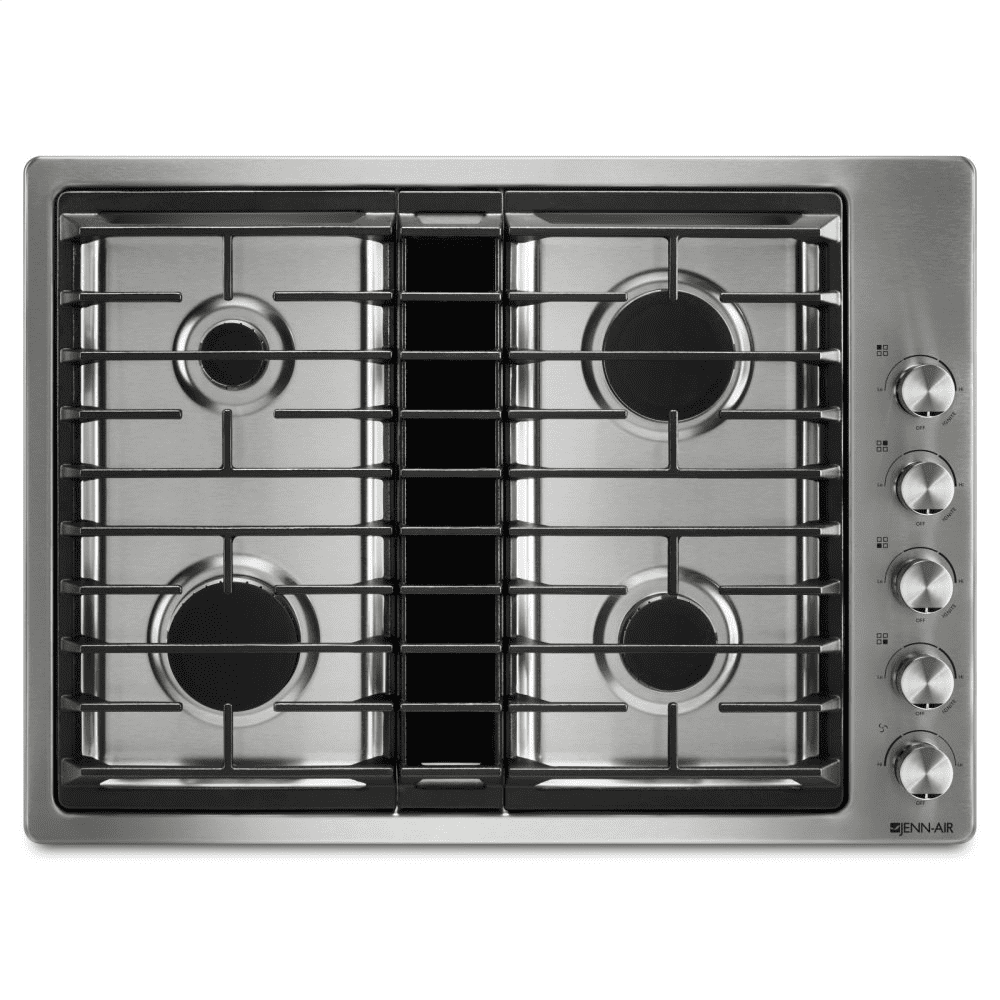

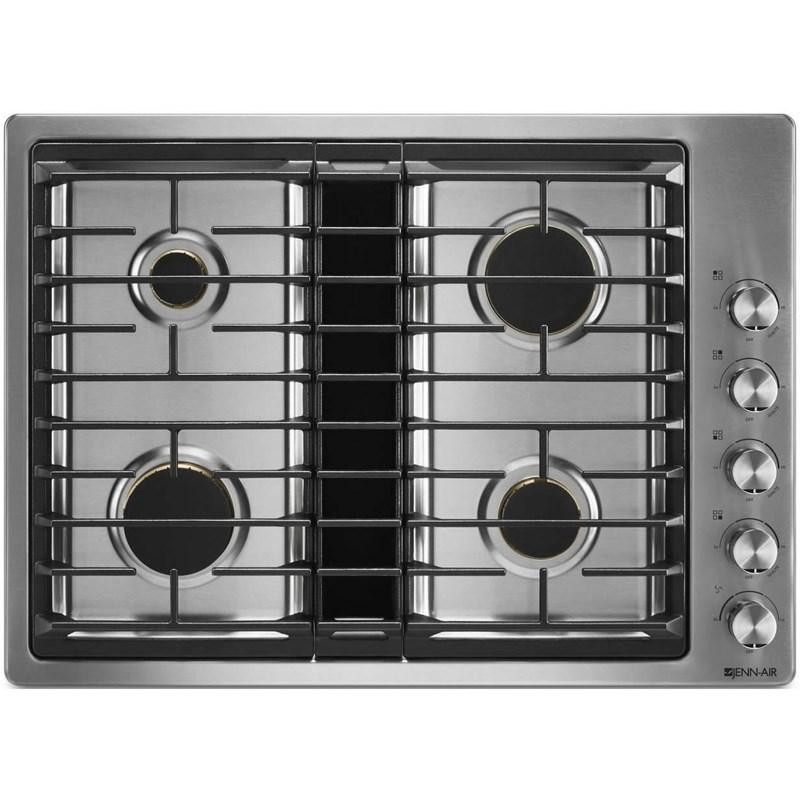

This JennAir® luxury gas downdraft cooktop features four sealed burners, including a 17,000 BTU ultra-high output burner. Its impressive JX3™ downdraft ventilation system quickly and efficiently clears the air without a hood.
Features
- JX3™ DOWNDRAFT VENTILATION SYSTEM WITH 3-SPEED FAN — The powerful JX3™ downdraft uses proximity ventilation to capture smoke and cooking odors right at the cooking surface, to powerfully clear the air without requiring a hood.
- 17,000 BTU ULTRA-HIGH OUTPUT BURNER — Enjoy the robust heat necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.
- DURAFINISH™ PROTECTION — With excellence in every detail, DuraFinish® Protection helps keep your cooktop’s surface looking like new, resisting yellowing, staining and scratching.
- CONVERTIBLE TO DUCT-FREE VENTILATION — Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
- BRASS BURNERS WITH REMOVABLE BASE — Elegant brass burners effectively direct heat for desired cooking results and can be removed for easy cleaning.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Videos
Highlights
Brass Burners with Removable Base | Convertible to Duct-Free Ventilation | CFM Rating: 310 | Dishwasher Safe
Specifications
| Burners/Elements | 4 | Burners | Sealed | Height | 10.16 cm |
| Width | 76.2 cm | Depth | 54.61 cm | Weight | 20.87 kg |
| Class Width | 30" | Downdraft Ventilation | Y | Fuel Type | Natural Gas |
| Type | Built-In | Series Name | Euro-Style | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | UPC# | 883049414447 | Warranty | Limited 2 Years Parts and Labor |
| ADA Compliant | Y | Included | LP Convertible Kit | ||
| Power Output Left Front Element-Burner Power: 17,000 BTU | Left Rear Element-Burner Power: 5,000 BTU | Right Front Element-Burner Power: 10,000 BTU | Right Rear Element-Burner Power: 15,000 BTU | |||||
| Information 120 V | 40 A | 60 Hz | |||||
| Additional Dimensions Cutout Depth: 19 15/16" | Cutout Height: 4" | Cutout Width: 28 5/8" | |||||
| Technologies JX3™ Downdraft Ventilation System with 3 Speeds | DuraFinish® Protection | |||||
Accessories
LP Convertible Kit
