Description
About this Product

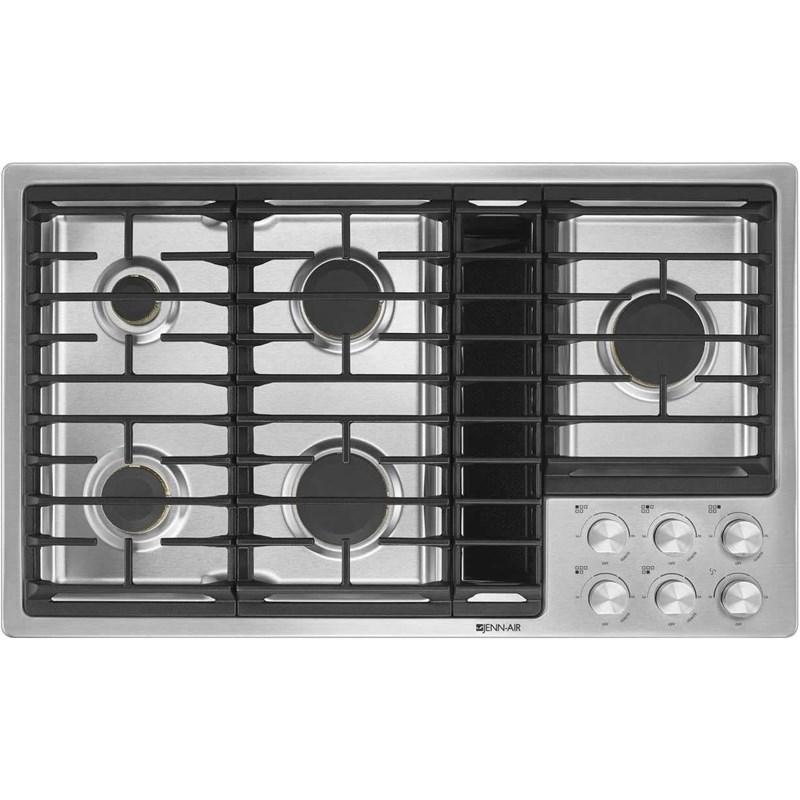

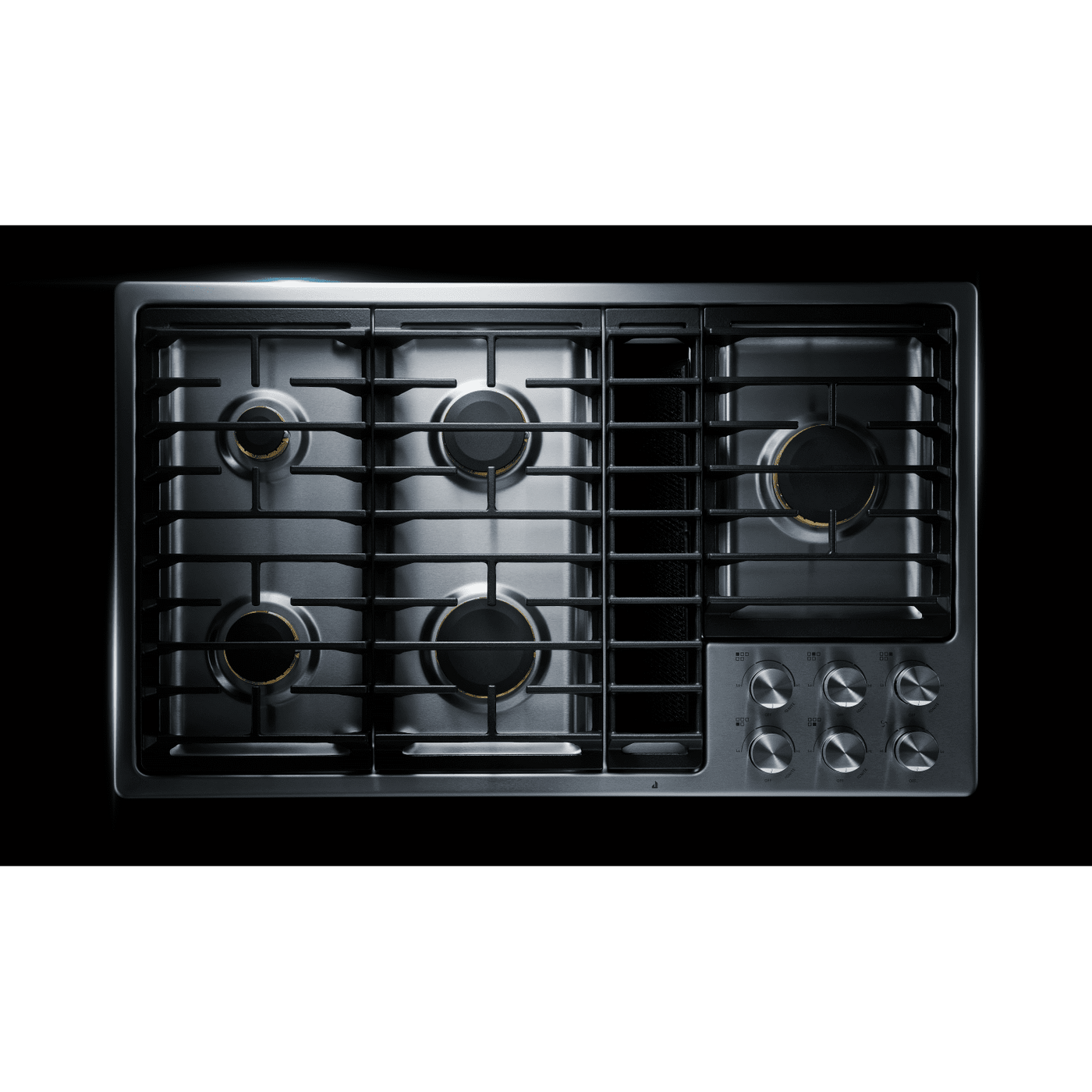

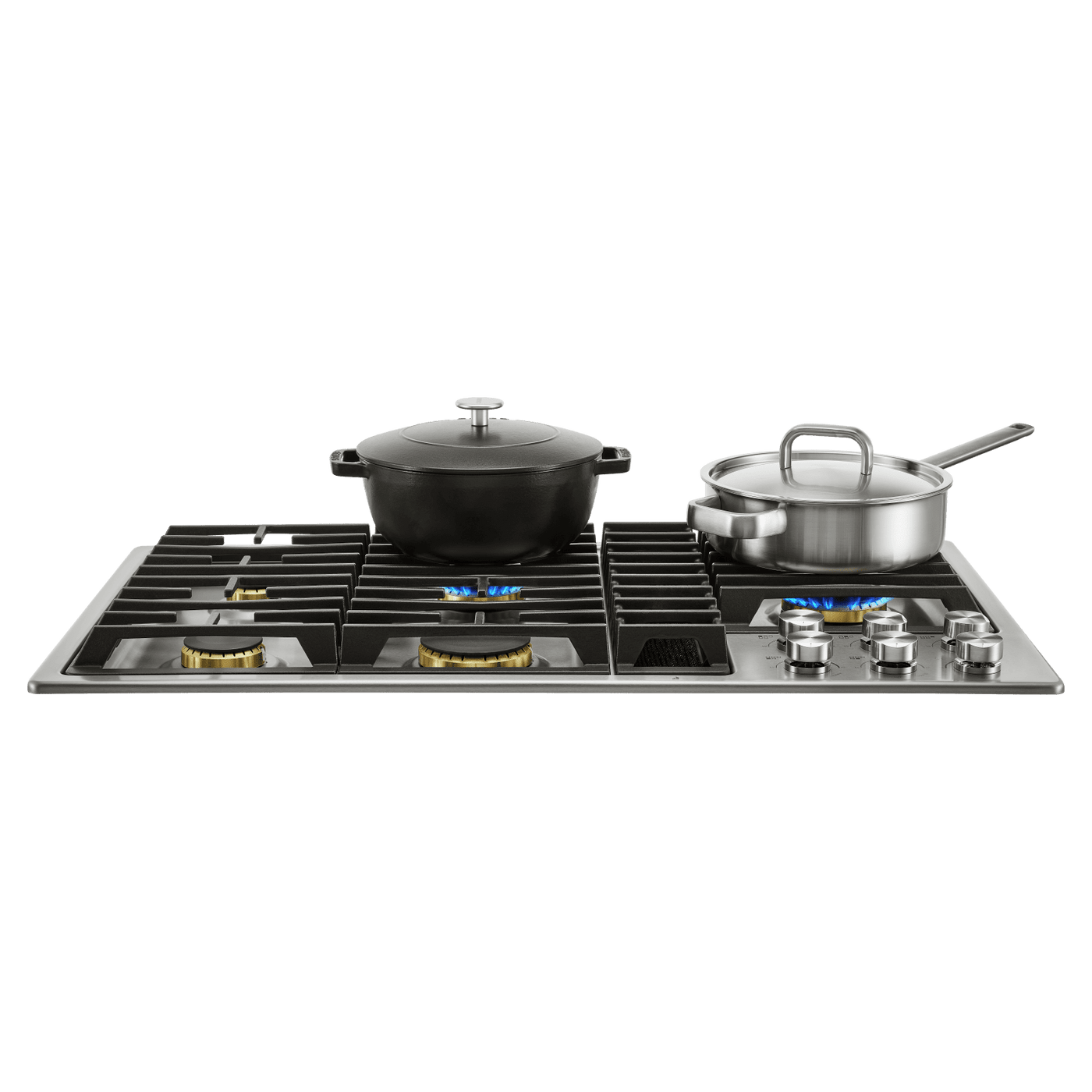

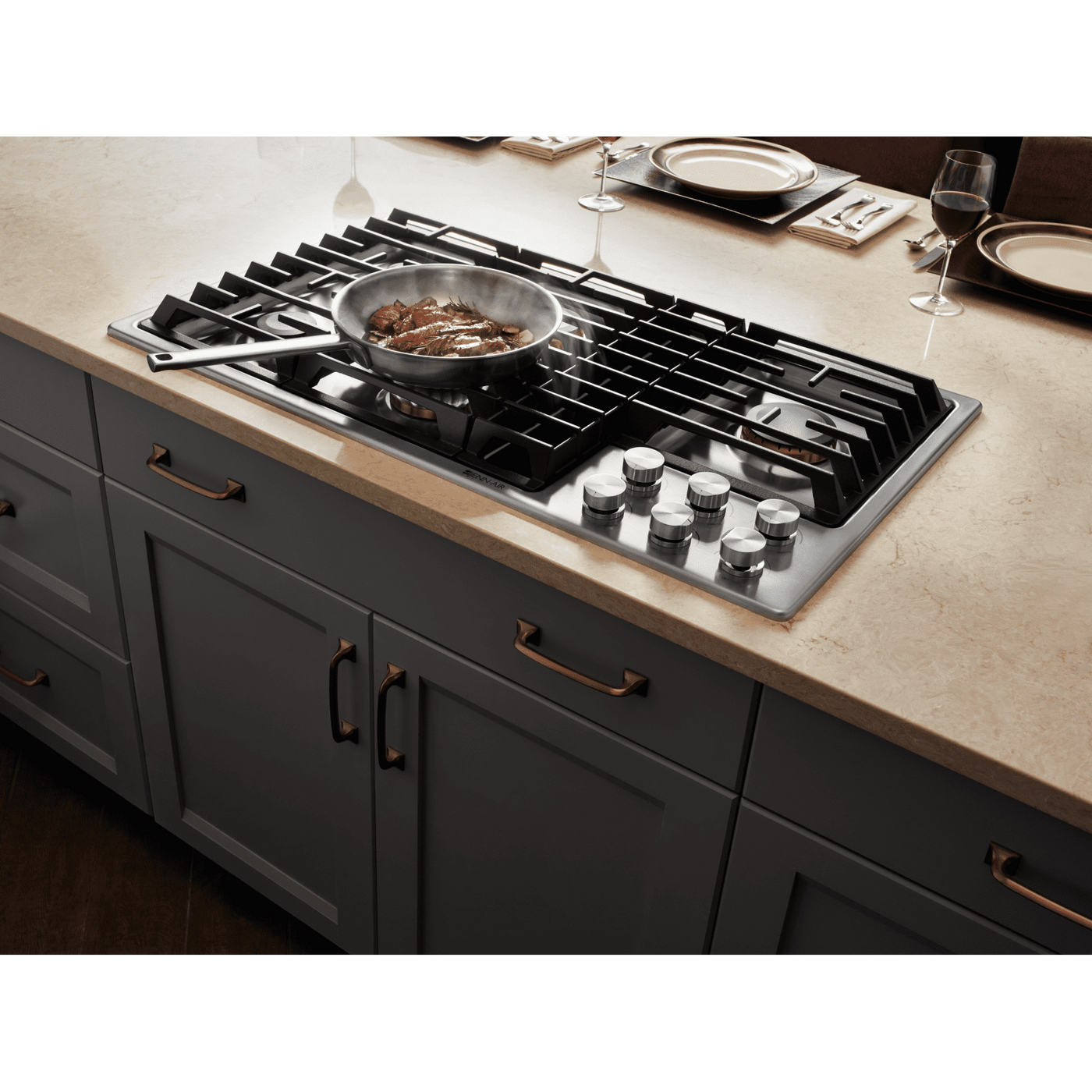

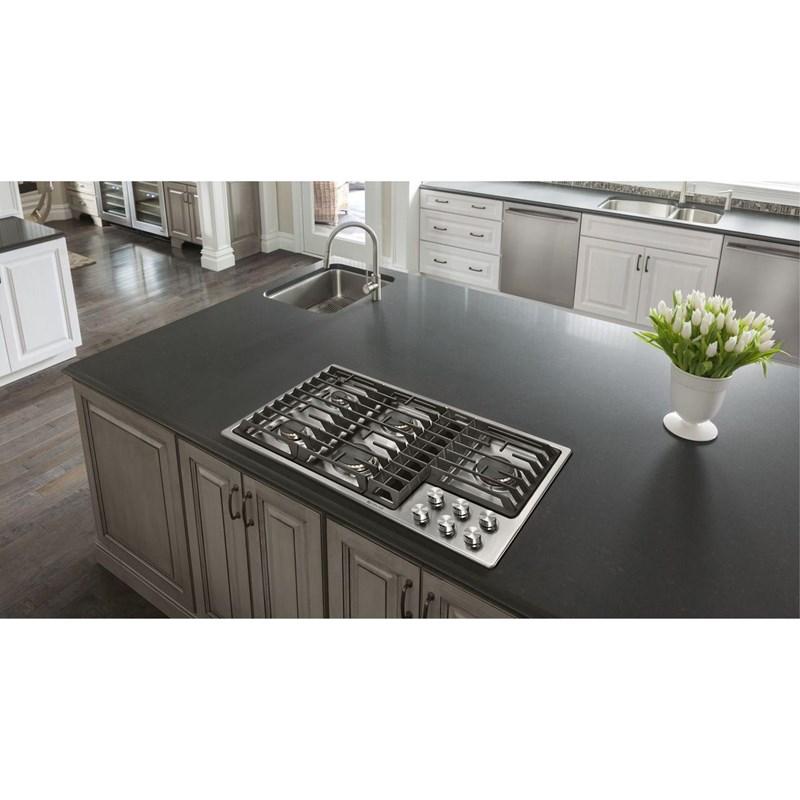

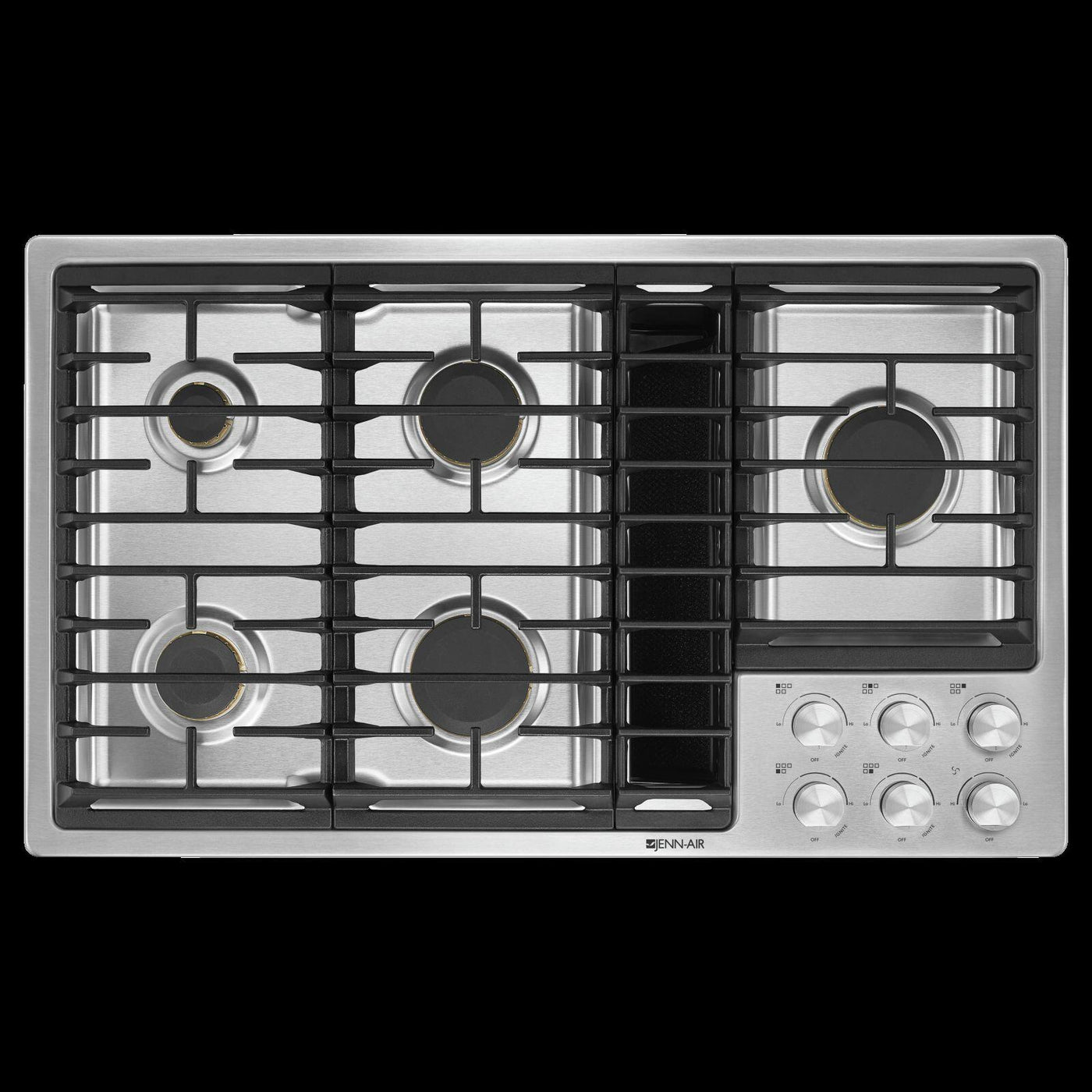

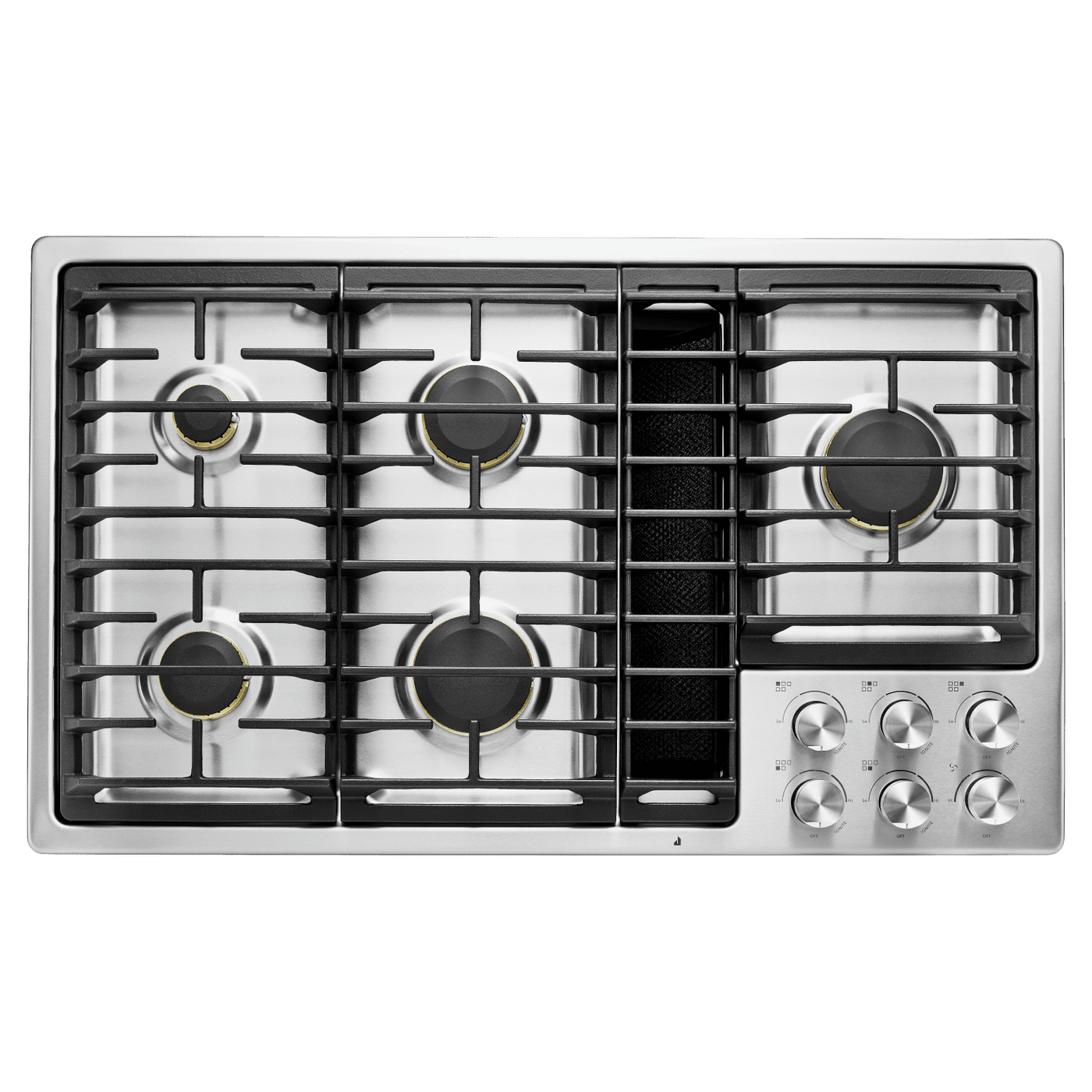

This JennAir® luxury gas downdraft cooktop features five sealed burners, including a 17,000 BTU ultra-high output burner. Its impressive JX3™ downdraft ventilation system quickly and efficiently clears the air without a hood.
Features

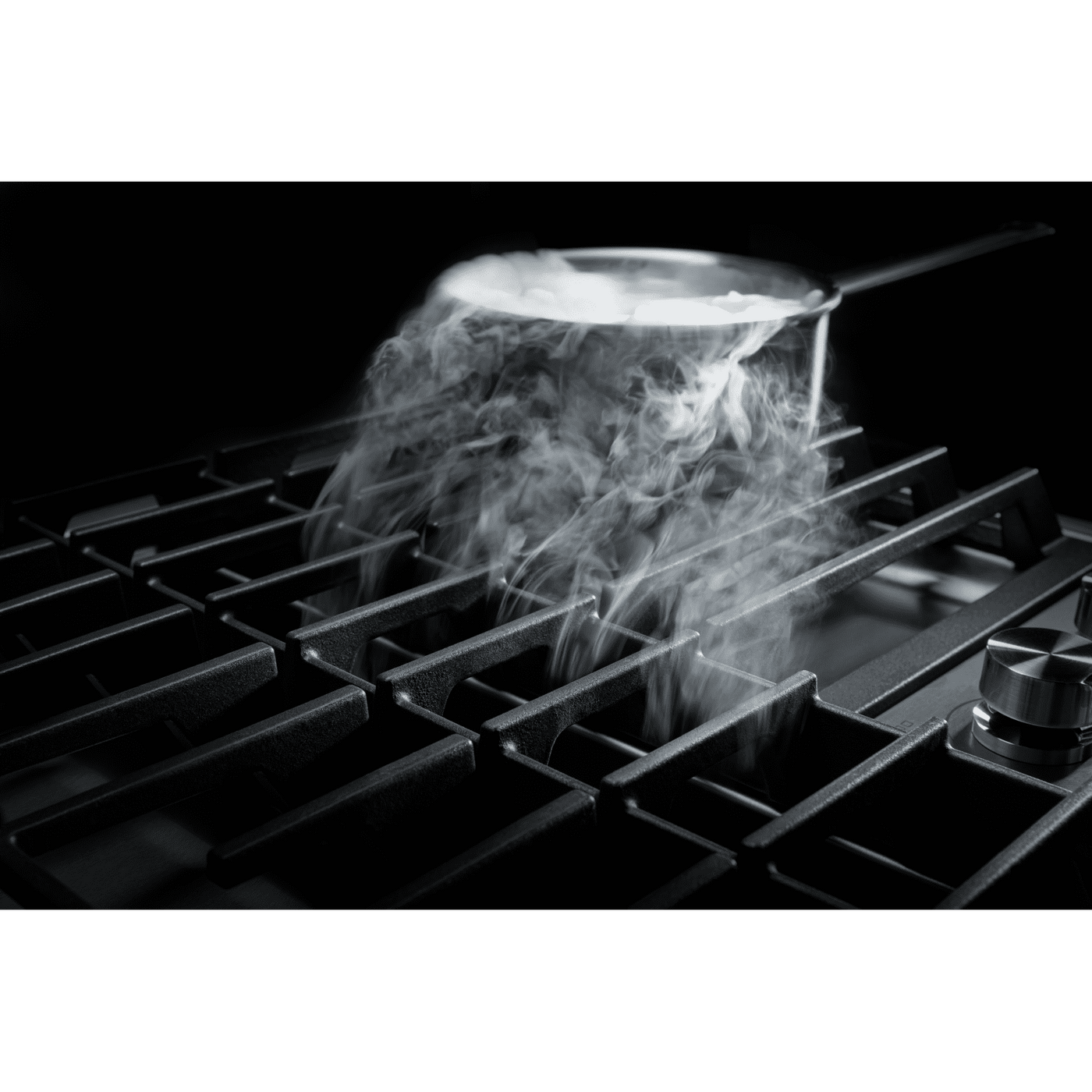

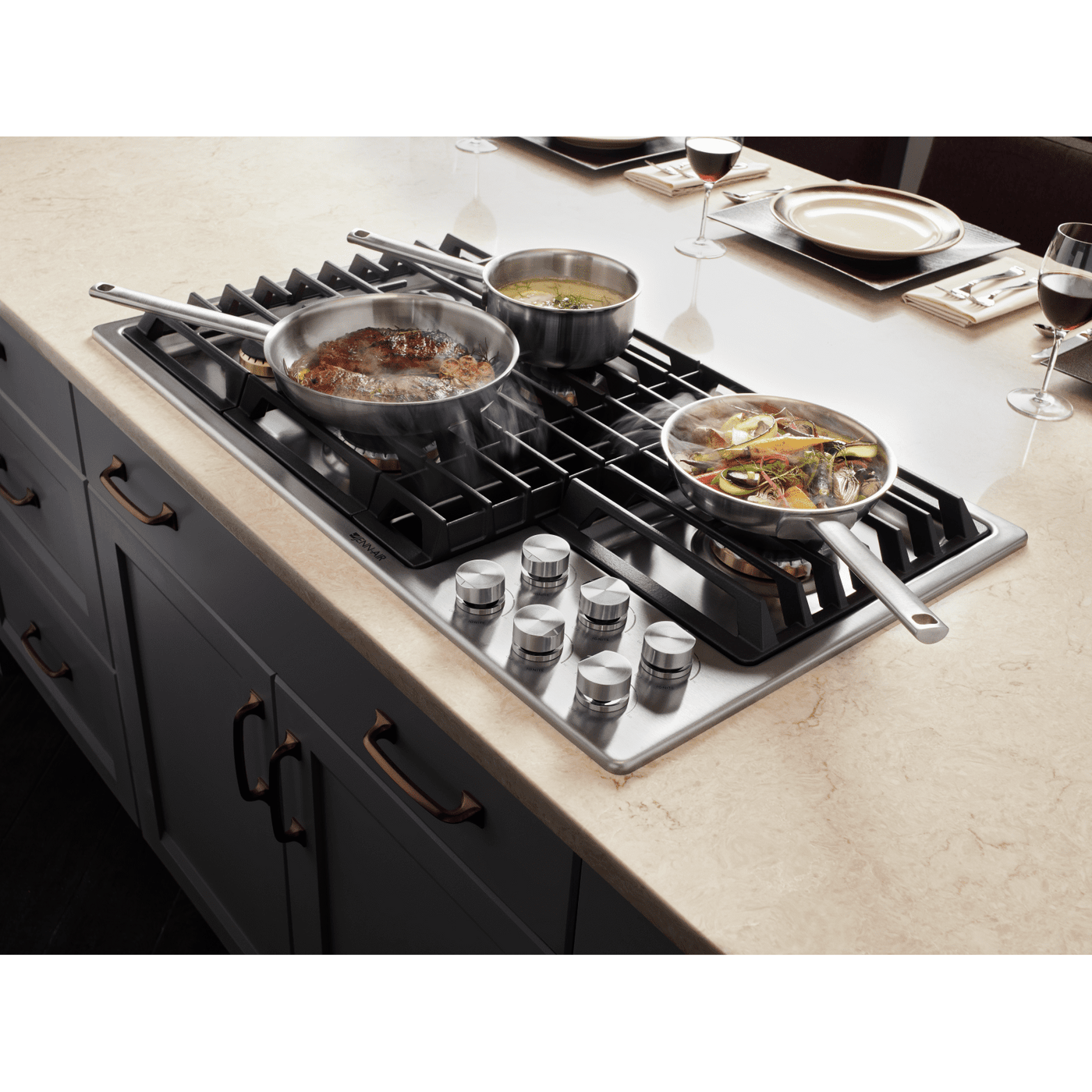

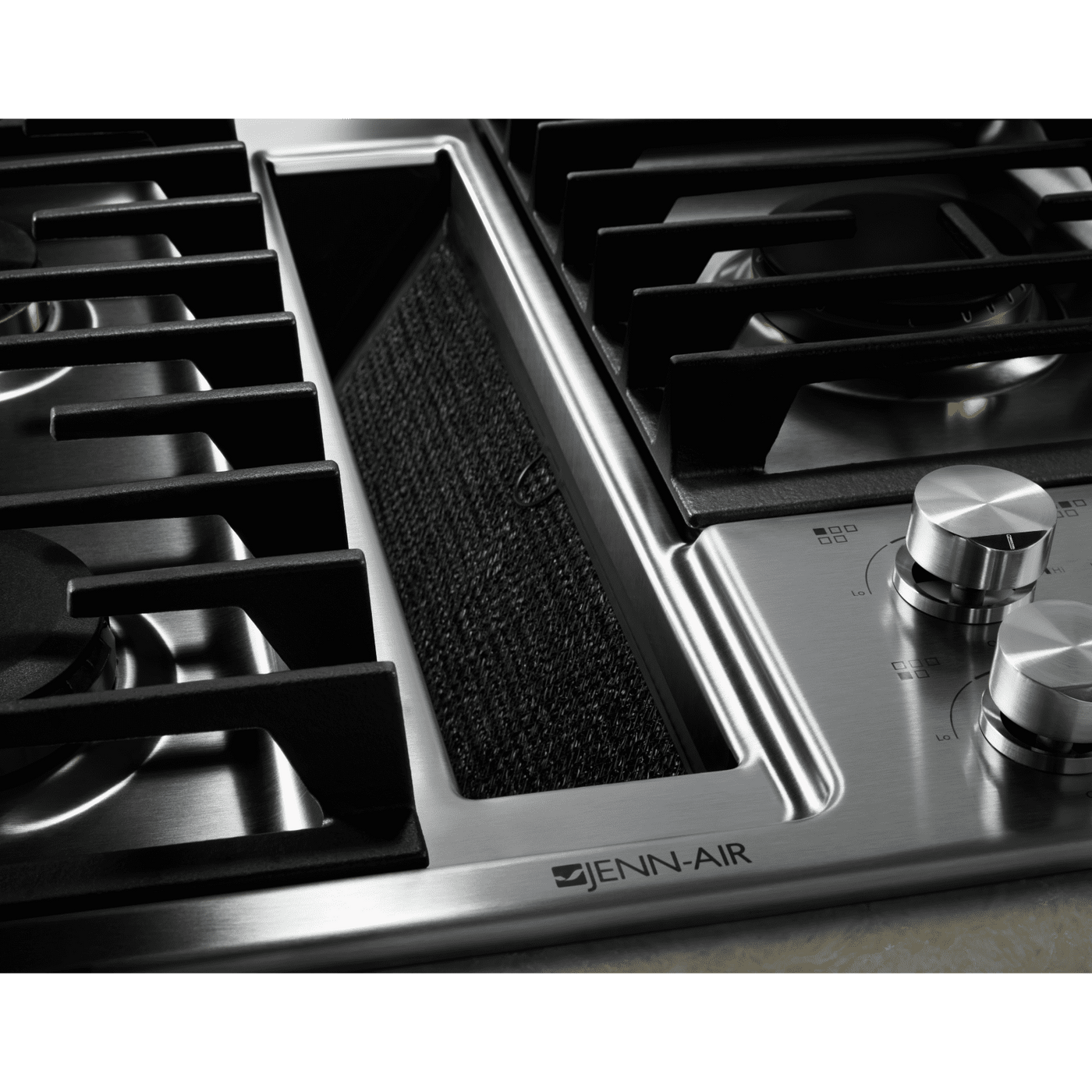

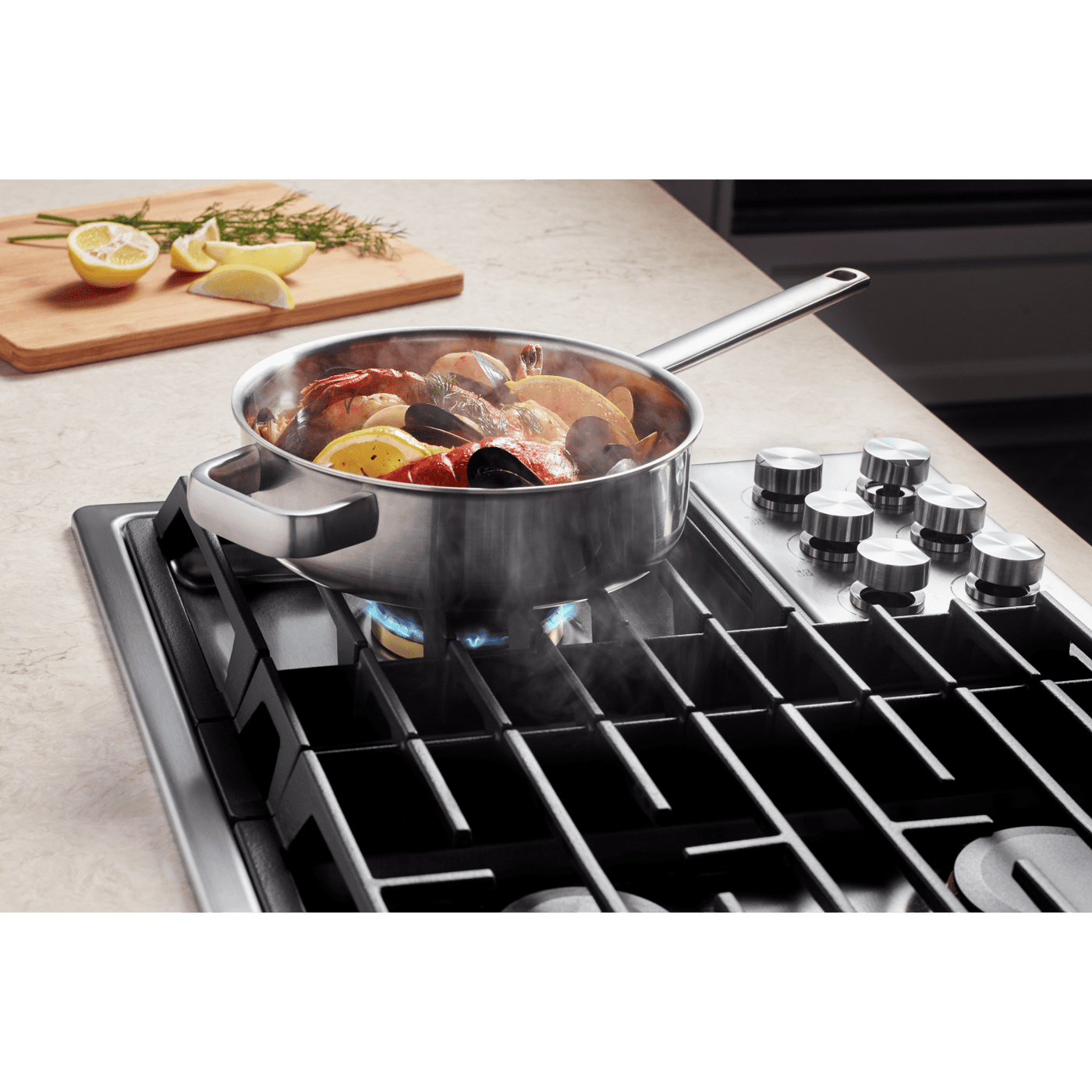

- JX3™ DOWNDRAFT VENTILATION SYSTEM WITH 3-SPEED FAN — The powerful JX3™ downdraft uses proximity ventilation to capture smoke and cooking odors right at the cooking surface, to powerfully clear the air without requiring a hood.

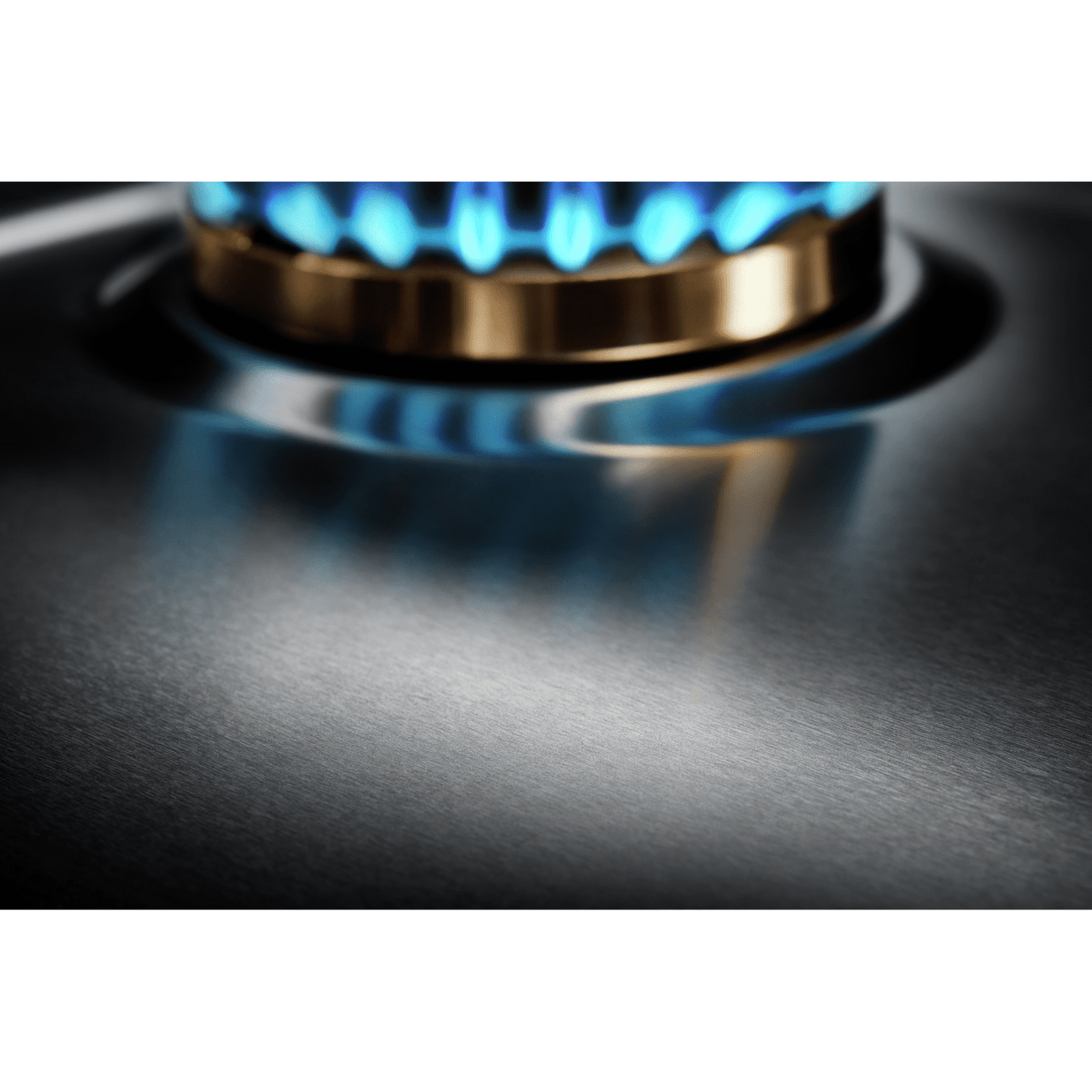

- DURAFINISH™ PROTECTION — With excellence in every detail, DuraFinish® Protection helps keep your cooktop’s surface looking like new, resisting yellowing, staining and scratching.

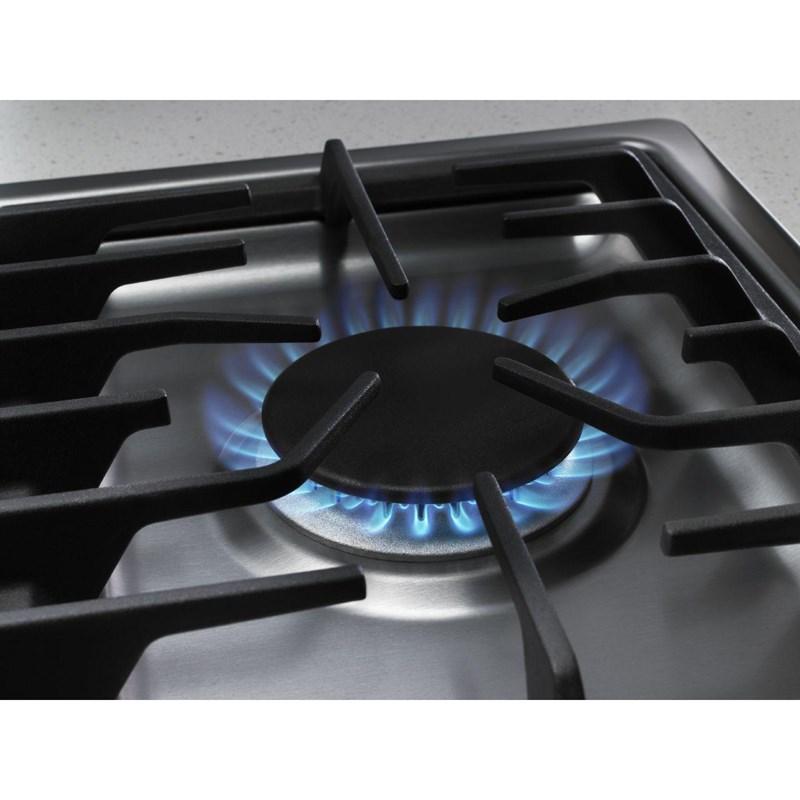

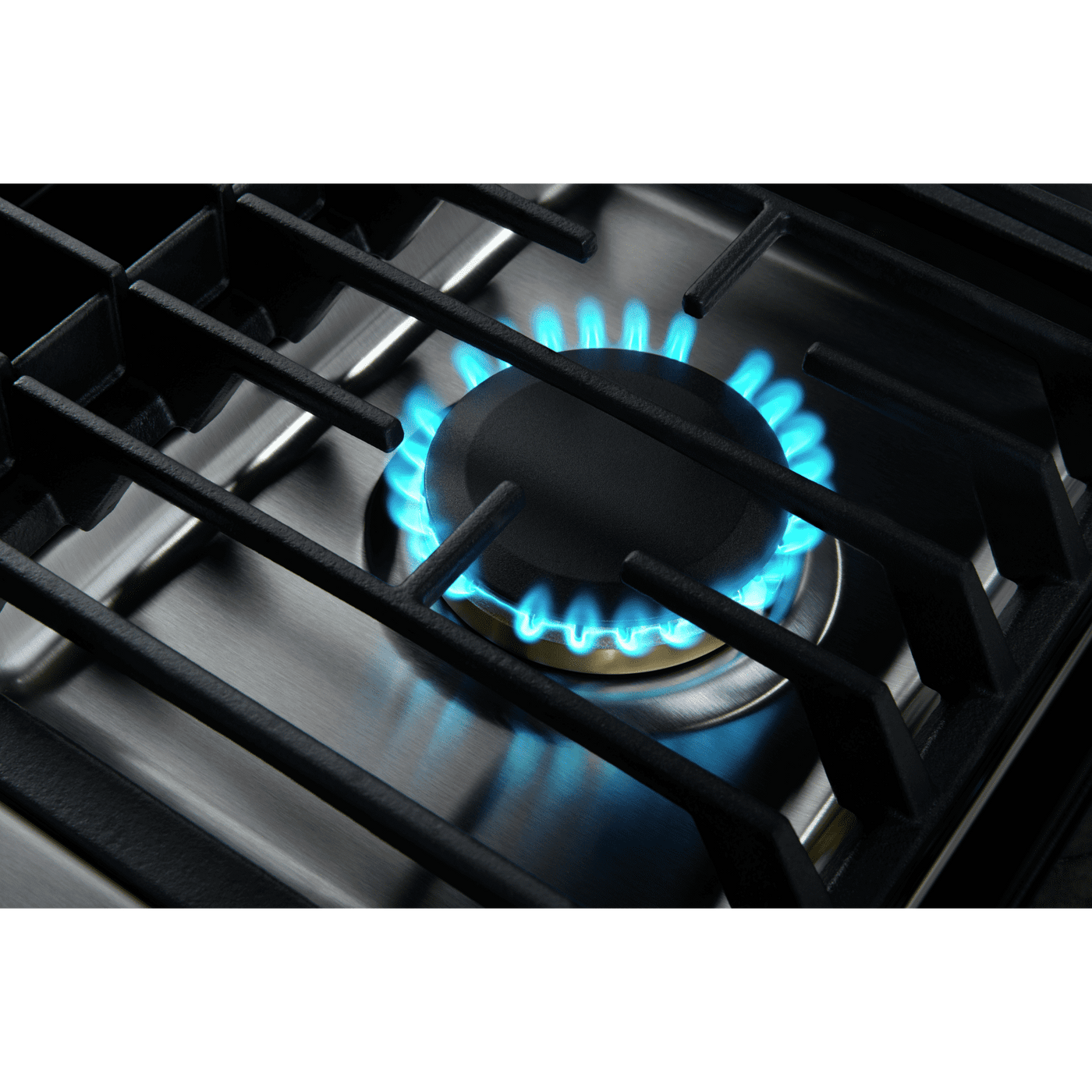

- 17,000 BTU ULTRA-HIGH OUTPUT BURNER — Enjoy the robust heat necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.
- CONVERTIBLE TO DUCT-FREE VENTILATION — Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.

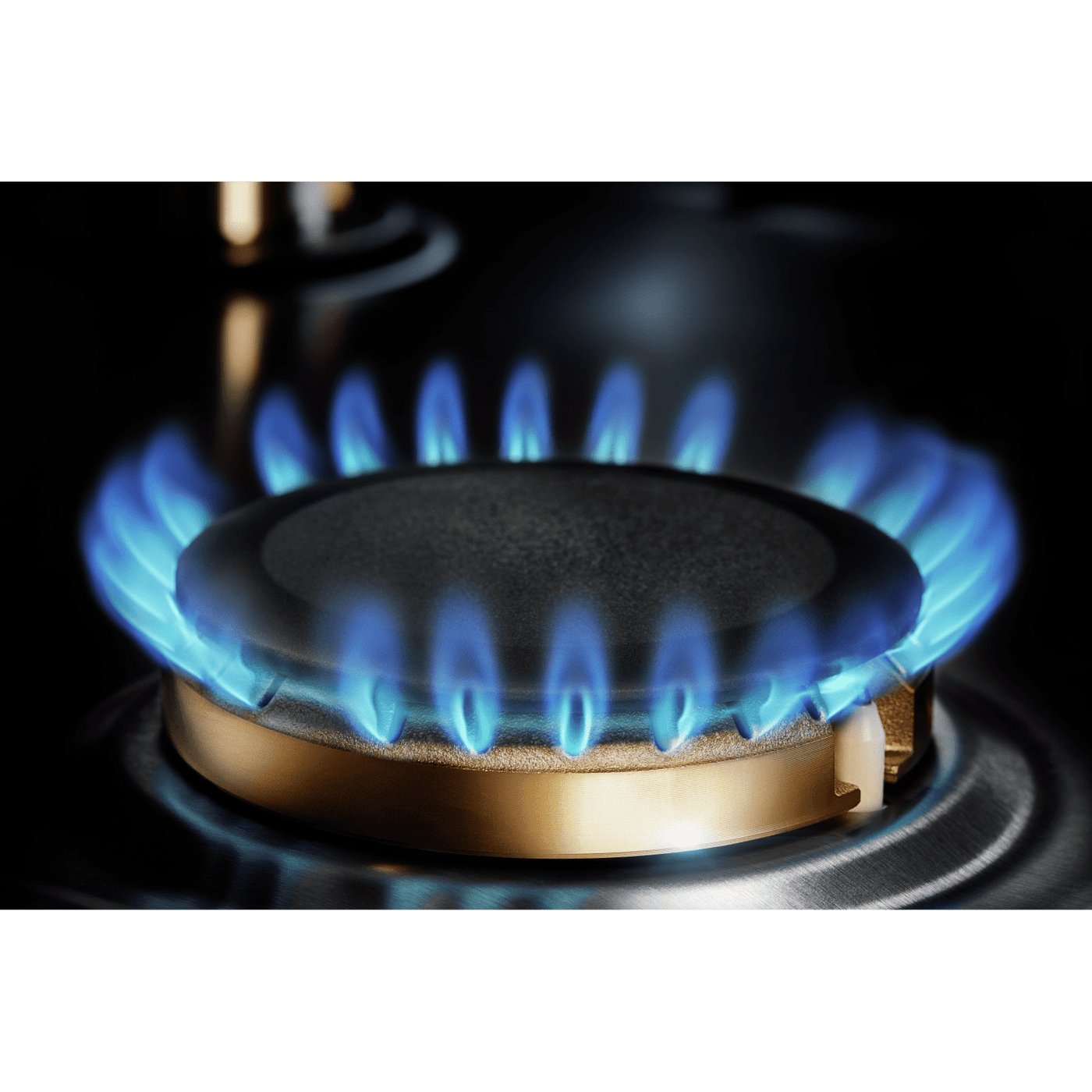

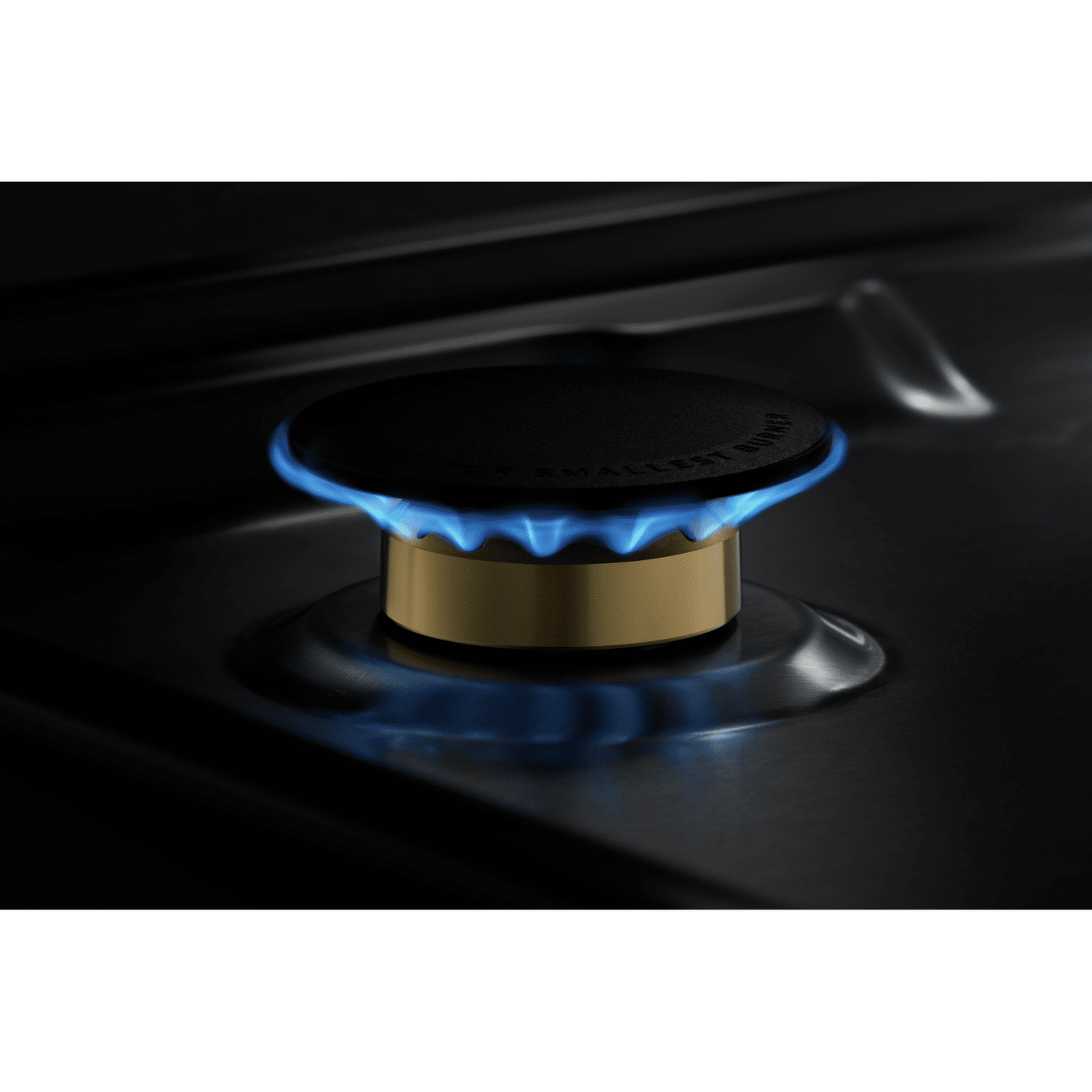

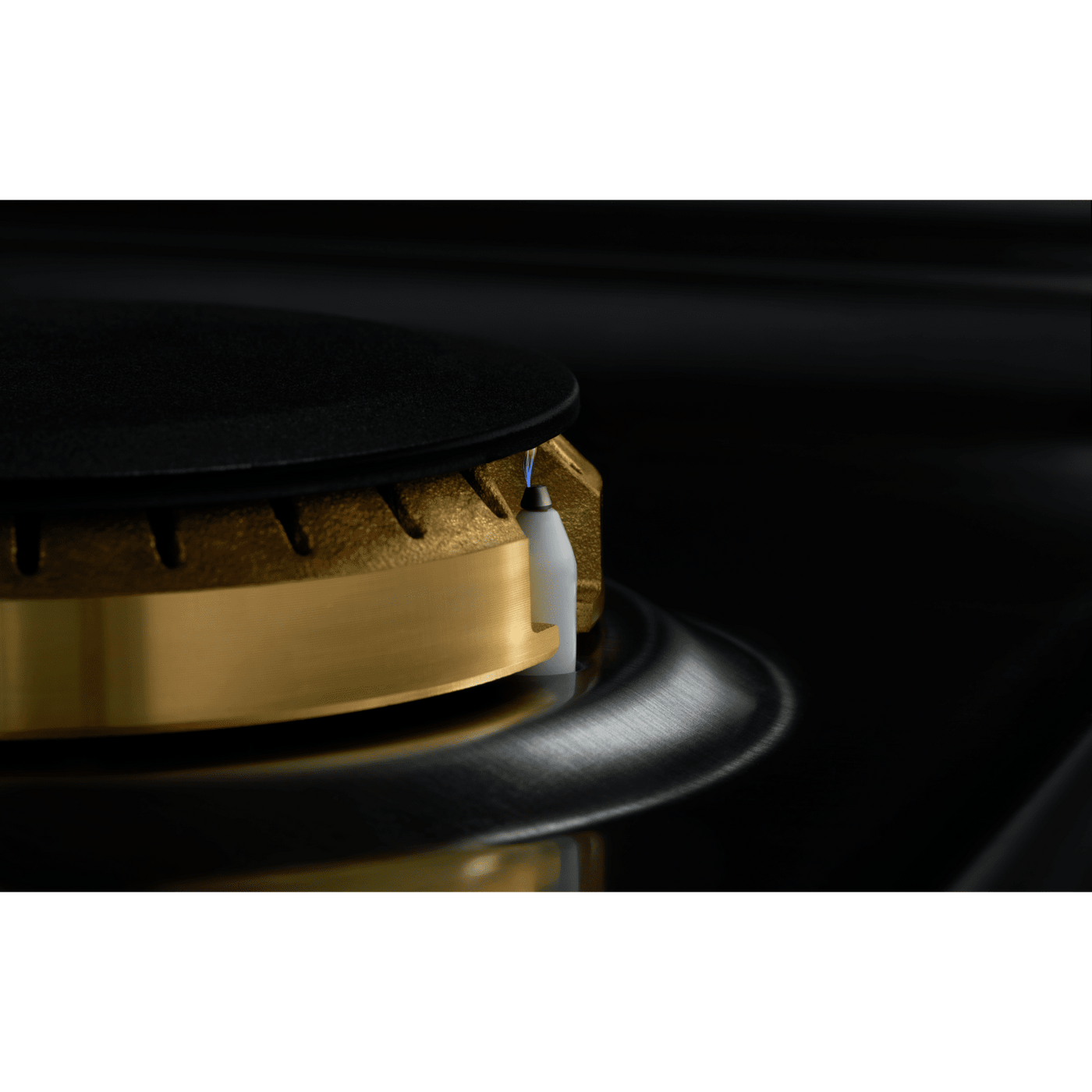

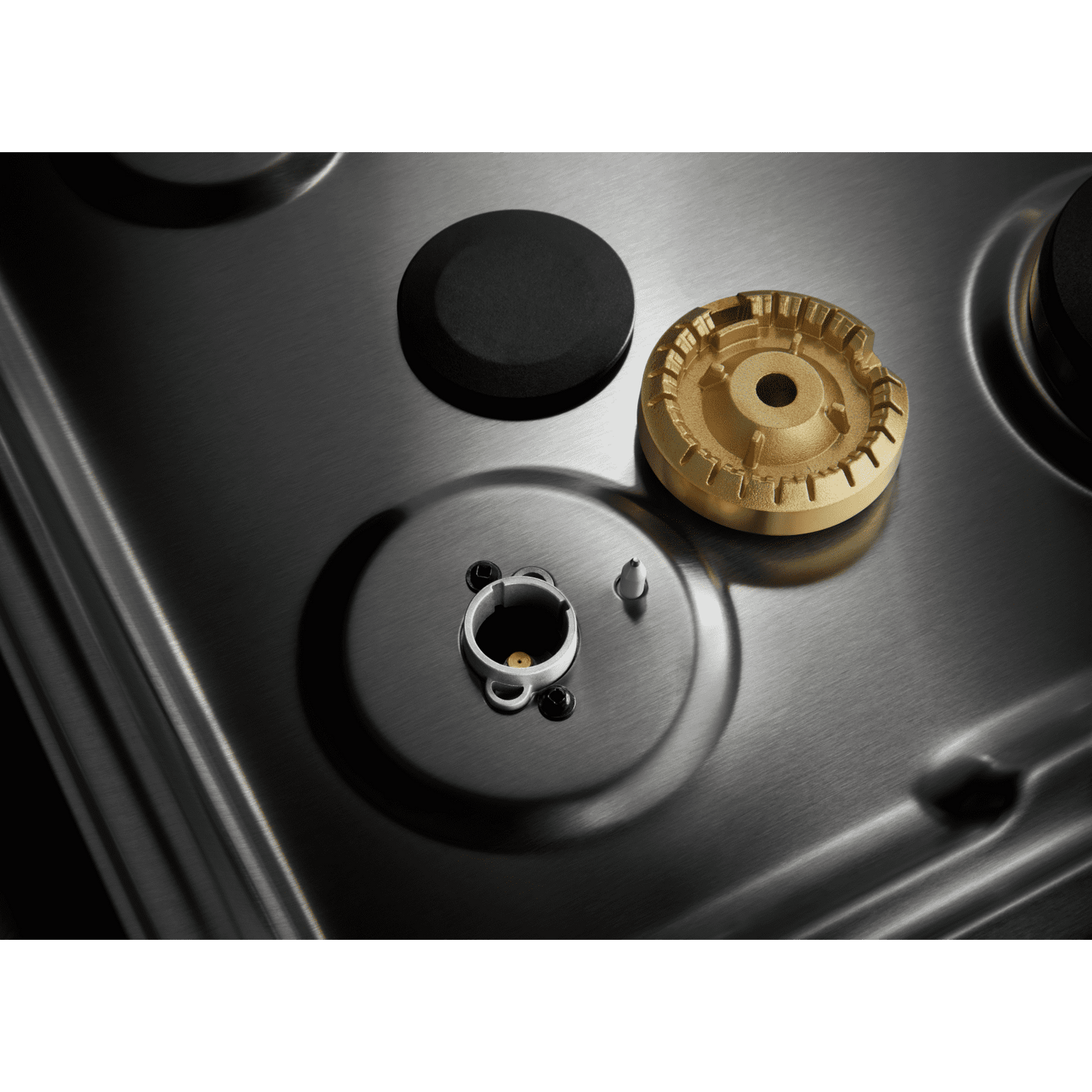

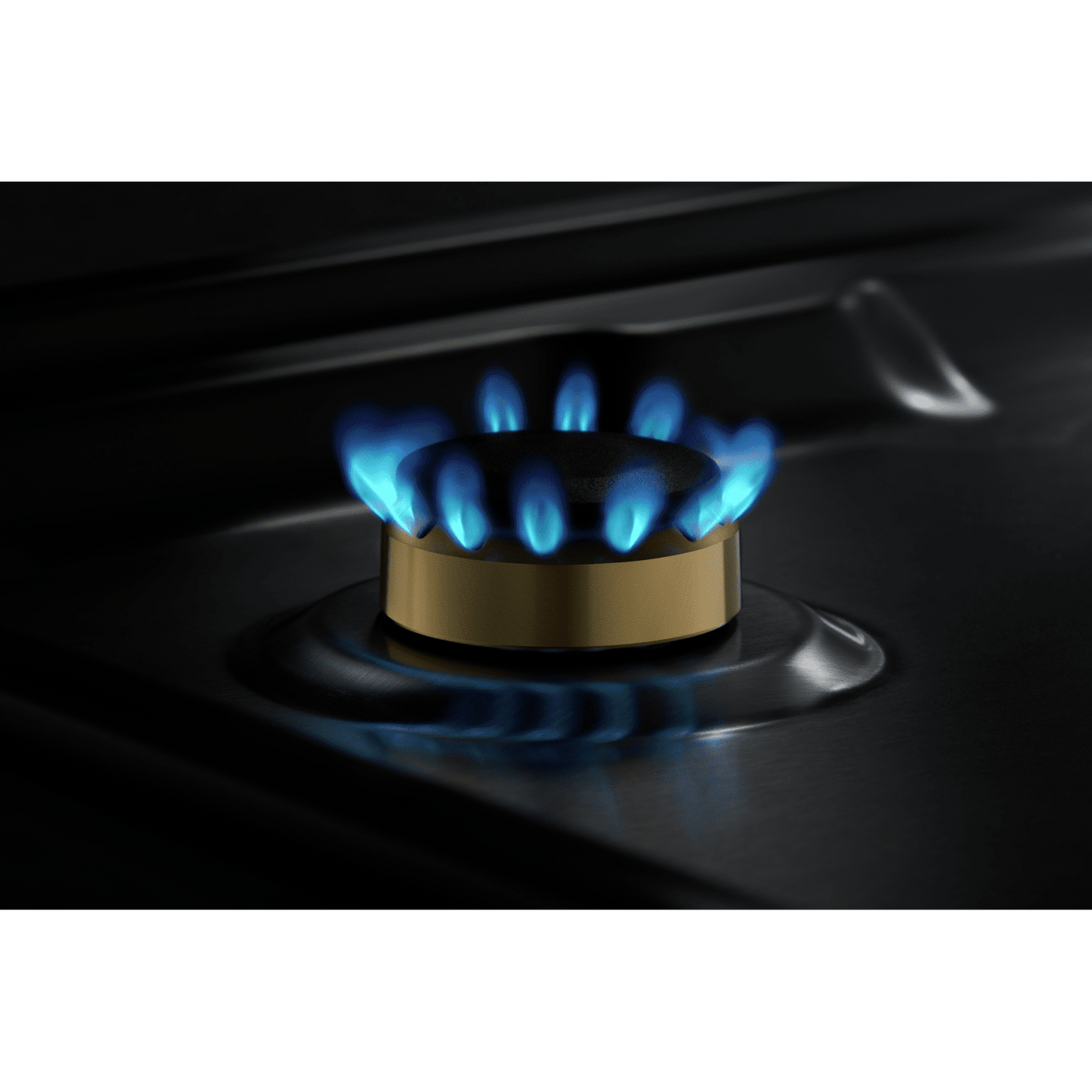

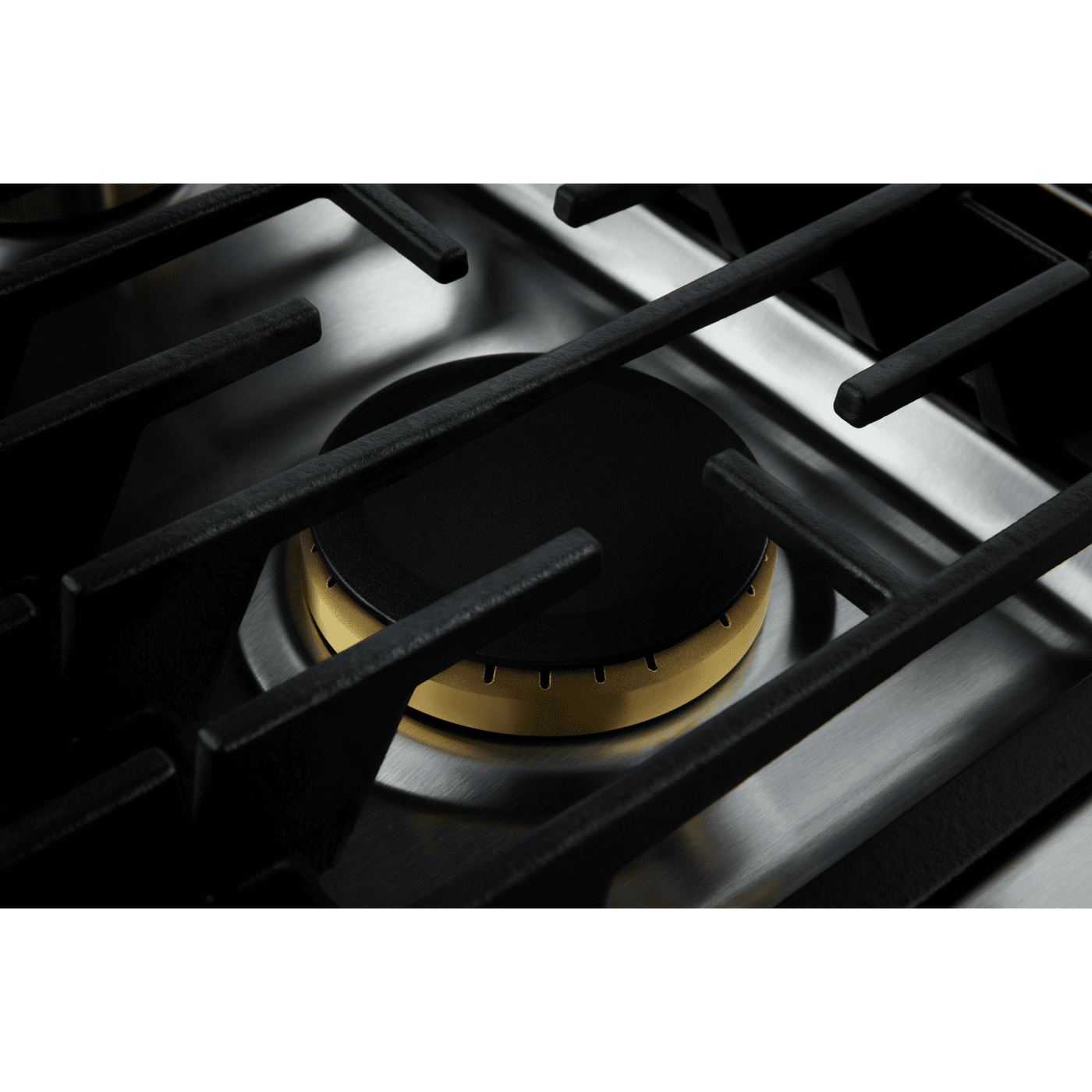

- BRASS BURNERS WITH REMOVABLE BASE — Elegant brass burners effectively direct heat for desired cooking results and can be removed for easy cleaning.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Videos
Highlights
Brass Burners with Removable Base | Convertible to Duct-Free Ventilation | CFM Rating: 310 | Dishwasher Safe
Specifications
| Height | 10.16 cm | Width | 91.44 cm | Class Width | 36" |
| Weight | 36.56 kg | Depth | 54.61 cm | Type | Built-In |
| Fuel Type | Natural Gas | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| ADA Compliant | Y | Warranty | Limited 2 Years Parts and Labor | Downdraft Ventilation | Y |
| UPC# | 883049414416 | Burners | Sealed | Burners/Elements | 5 |
| Information 120 V | 40 A | 60 Hz | |||||
| Additional Dimensions Cutout Depth: 19 15/16" | Cutout Height: 4" | Cutout Width: 34 3/4" | |||||
| Included LP Convertible Kit | Power Cord | |||||
| Technologies JX3™ Downdraft Ventilation System with 3 Speeds | DuraFinish® Protection | |||||
| Power Output Center Front Element-Burner Power: 15,000 BTU | Center Rear Element-Burner Power: 12,500 BTU | Left Rear Element-Burner Power: 5000 BTU | Right Rear Element-Burner Power: 17,000 BTU | |||||
Accessories
• LP Convertible Kit
• Power Cord
• Power Cord
