Description
About this Product

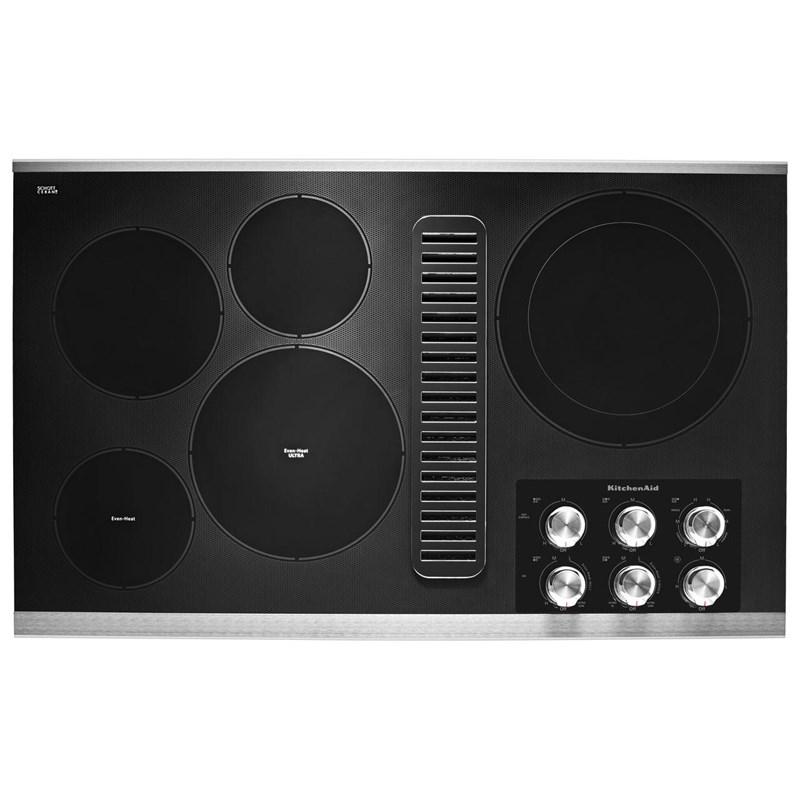

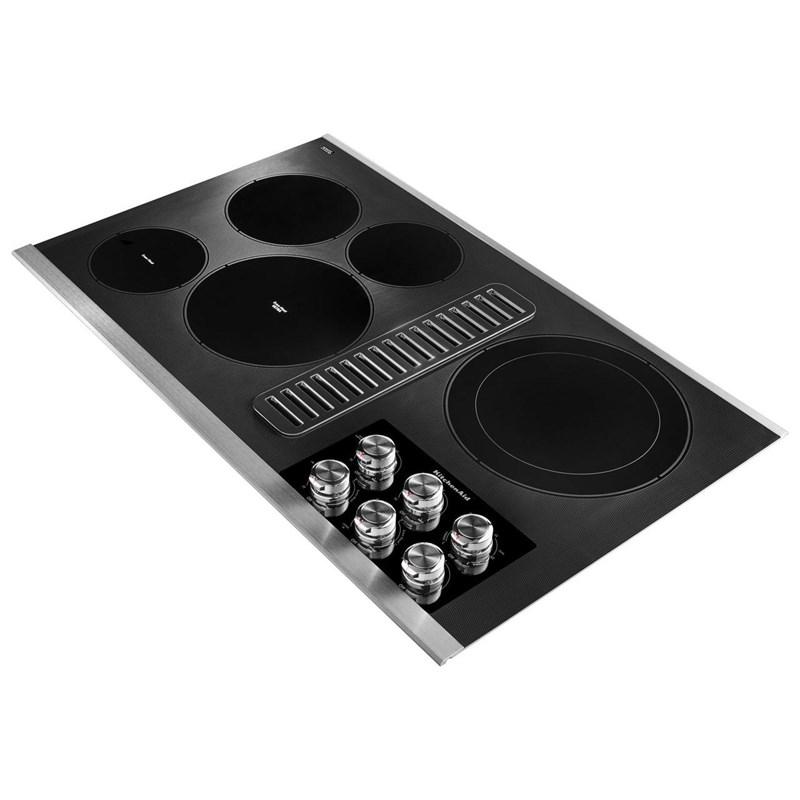

This 36” electric cooktop features Downdraft, an integrated ventilation system that doesn’t require a separate hood. A 10-inch Even-Heat™ Ultra element provides versatility for both high-and low-temperature cooking, and has multiple simmer settings. And with a 3-speed fan with 300 CFM exhaust rating, the venting can keep up withyour culinary feats.
Features
- DOWNDRAFT VENTILATION — Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- COOKSHIELD FINISH — Helps protect your cooktop from spills and stains that may occur with high-temperature cooking. The permanent finish makes it easy to wipe the cooktop clean without harsh chemicals so it looks clean and bright longer.
- 6" EVEN-HEAT™ ELEMENT WITH MELT SETTING — Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
- 3-SPEED FAN CONTROL — Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
- 12"/9" DOUBLE-RING ELEMENT — Lets you use different cookware sizes at one location. When using large, 12-inch cookware the entire element surface is used. For smaller cookware, you’ll use only the 9-inch inner element.
- CONVERTIBLE TO DUCT-FREE VENTILATION — Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
- EVEN-HEAT™ ULTRA ELEMENT WITH SIMMER SETTING — Provides more versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.
- HOT-SURFACE INDICATOR — Provides a clear indication that lets you know if any cooking surface is on or still hot.
Documents
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Videos
KCED606GSS KCED606GSS KCED606GSS
Highlights
300 CFM Exhaust Rating | 3-Speed Fan Control | 12"/9" Double-Ring Element | Convertible to Duct-Free Ventilation | Power-On Indicator Light | Hot-Surface Indicator
Specifications
| Burners/Elements | 5 | Elements | Smoothtop | Height | 9.21 cm |
| Width | 92.23 cm | Depth | 56.04 cm | Weight | 33.11 kg |
| Class Width | 36" | Downdraft Ventilation | Y | Wi-Fi | N |
| Fuel Type | Electric | Type | Built-In | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | UPC# | 883049415932 | Warranty | 1 Year Parts and Labor |
| Power Output Center Front Element: 3,200 W | Center Rear Element: 1,200 W | Left Front Element: 1,300 W | Left Rear Element: 1,800 W | Right Rear Element: 3,000 W | |||||
| Burner/Element Size Center Front Element: 10" | Center Rear Element: 6" | Left Front Element: 6" | Left Rear Element: 8" | Right Rear Element: 12"/9" | |||||
| Surface Features CookShield Finish for Glass Surface | Stainless Steel Knobs | Pure Color Ceramic-Glass Surface | |||||
| Information 120 V /240 V | 60 Hz | 40 A | |||||
| Technologies Even-Heat™ Ultra Element | Even-Heat™ Element | |||||
