Description
About this Product

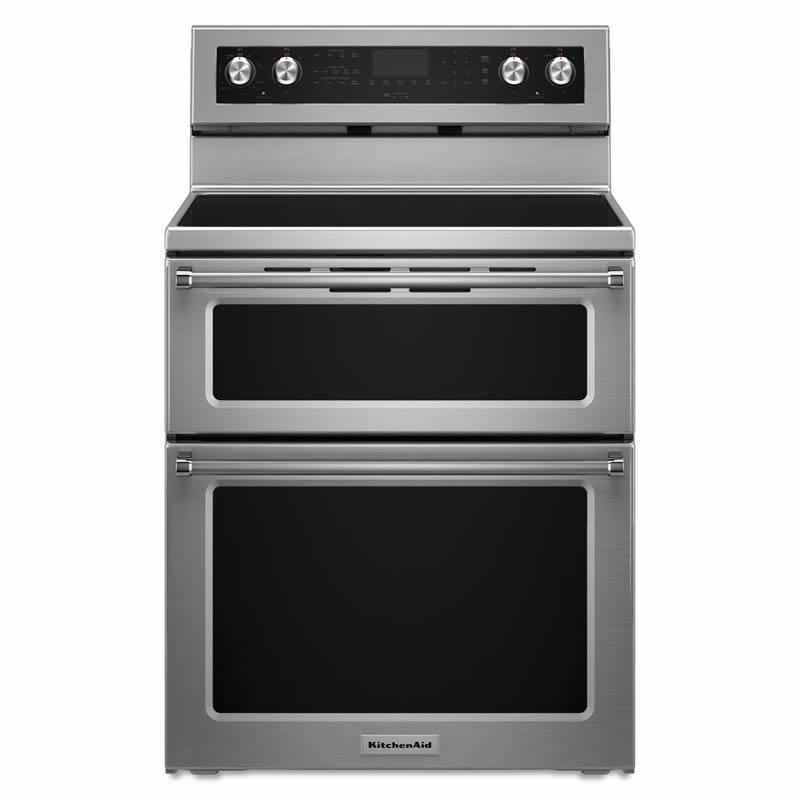

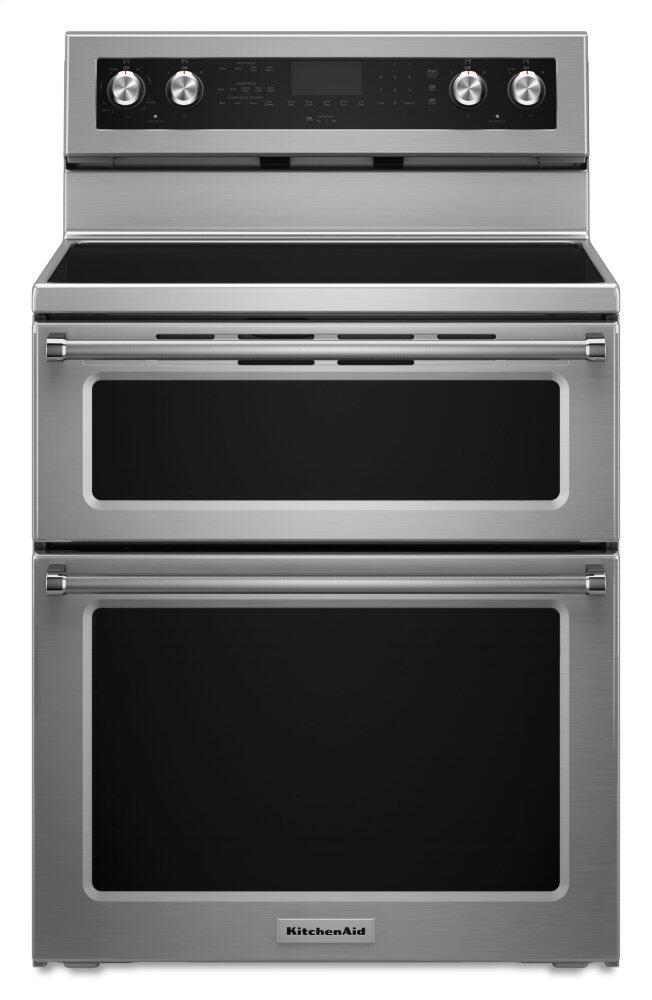

This beautiful electric double oven range produces flawless cooking results with Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature. The ovens are a combined 6.7 cu ft., providing an extra-large capacity and separate temperature environments. The cooktop features five heating surfaces, including a dedicated warming zone, allowing you to do more on your range.
Features

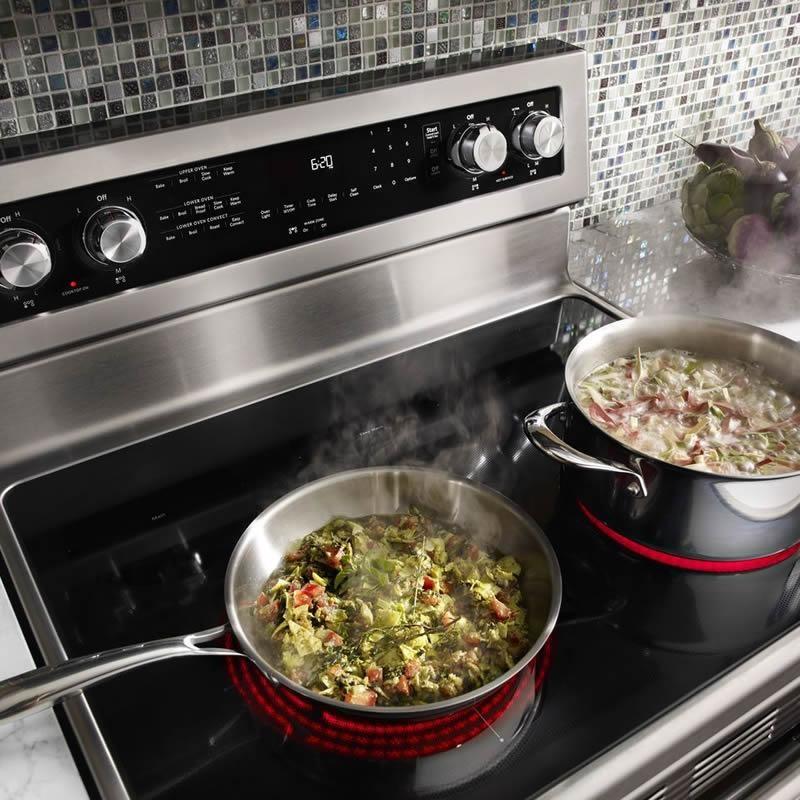

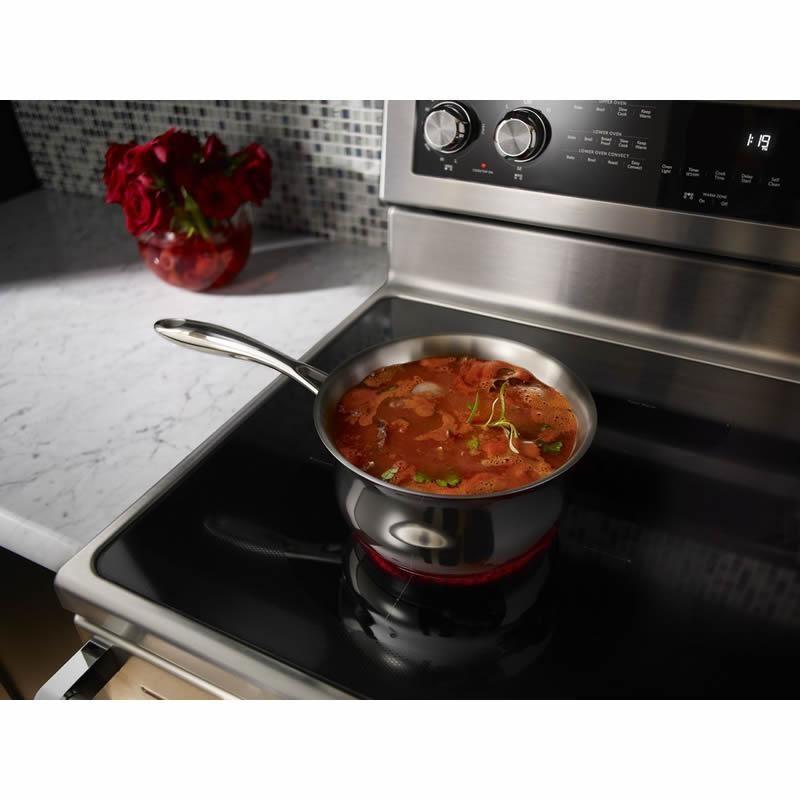

- 10" EVEN-HEAT™ ULTRA ELEMENT — Delivers consistent heat across the cooktop, including fast boils, precise simmering and exceptional melting.
- EASYCONVECT™ CONVERSION SYSTEM — Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.
- EVEN-HEAT™ TRUE CONVECTION — Features a unique bow-tie design with heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts and flavorful, caramelized vegetables.

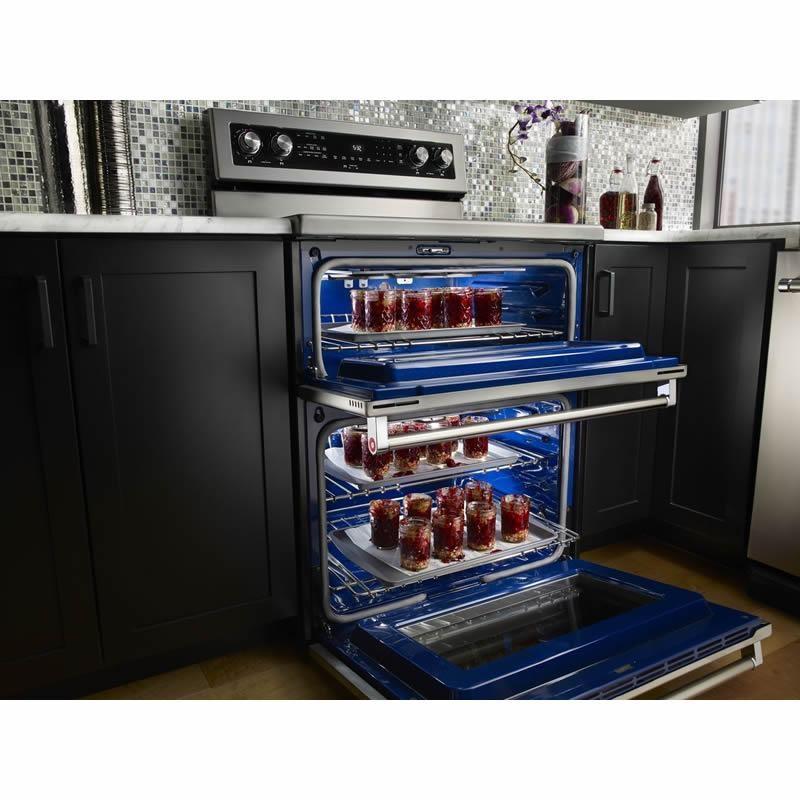

- SATINGLIDE™ ROLL-OUT EXTENSION RACK — Makes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
Documents
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Videos
YKFED500ESS YKFED500ESS YKFED500ESS
Highlights
10" 3200-watt Ultra element accommodates high-temperature cooking methods like rapid boiling and searing | EasyConvect™ Time and Temperature Conversion System takes the guesswork out of convection cooking | Even-Heat™ True Convection System provides consistent heating and even cooking on both lower oven racks | The oven's slow cook function provides superb slow cooking without taking up valuable counter space
Specifications
| Number of Ovens | Double | Delay Bake/Start | Y | Self-Cleaning | Y |
| Digital Temperature Display | Y | Oven Light | Y | Convection | Y |
| Control Lock | Y | Wi-Fi | N | Burners/Elements | 5 |
| Burner/Element Size | Center rear: 6";Left front: 12"/9"/6";Left rear: 6";Right front: 10";Right Rear: 6". | Elements | Smoothtop | Sabbath/Star-K | Y |
| Height | 120.33 cm | Width | 76.04 cm | Depth (Without Handles) | 66.4 cm |
| Weight | 92.35 kg | Class Width | 30" | Depth (Including Handles) | 72.39 cm |
| Storage | N | Baking | N | Warming | N |
| Broiler | N | Fuel Type | Electric | Installation Type | Freestanding |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | UPC# | 883049365817 |
| Warranty | Limited 1-Year Parts and Labor | Depth | 76.84 cm | ||
| Capacity (cu. ft.) Upper Oven: 2.5 | Lower Oven: 4.2 | Total: 6.7 | |||||
| Burners/Elements Output Center Rear : 100 Watt | Left Front : 2700/1950/1050 Watt | Left Rear : 700 Watt | Right Front : 3200 Watt | Right Rear : 1200 Watt | |||||
| Information 240 | |||||
| Additional Dimensions 35 3/4" ± 1/8" (90.8 cm ± 0.3 cm) cooktop height (minimum) with leveling legs screwed all the way in (Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.) | Model/serial/rating plates (located behind the control panel), (Model/serial/rating plates may be rotated up from behind the control panel for viewing from the front of the range.) | 47 3/8" ± 1/8" (120.3 cm ± 0.3 cm) overall height (minimum) with leveling legs screwed all the way in (Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.) | 28 1/2" ± 1/4" (72.4 cm ± 0.6 cm) depth with handle | 26 1/8" ± 1/8" (66.4 cm ± 0.3 cm) , (Excludes handle. Dimension given is from wall to front of oven door and will vary based on electric outlet receptacle installation.) | 29 15/16 " ± 1/16" (76.0 cm ± 0.2 cm) width | |||||
