Description
About this Product

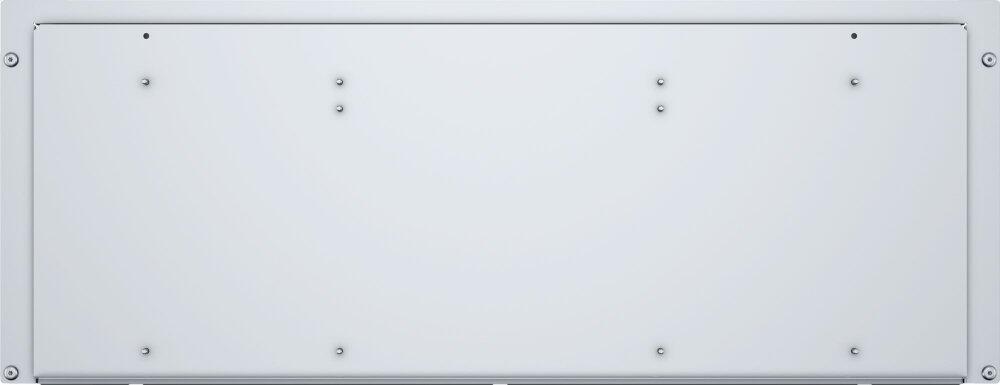

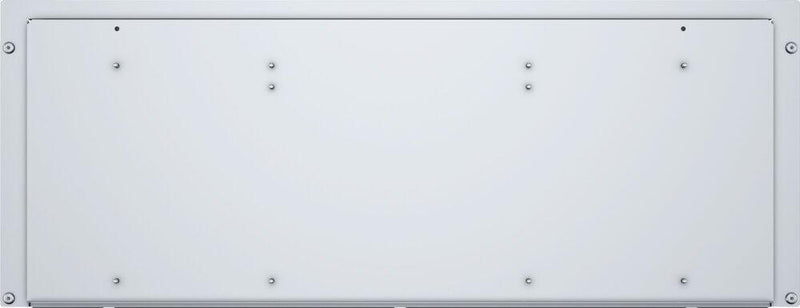

Thermador 30-inch custom panel ready warming drawer. This warming drawer is the perfect combination of uncompromising performance, unique convenience features and elegant design. (Panel kit sold separately).
Features
- SOFTCLOSE® DOOR — SoftClose® feature prevents slamming and ensures ultra smooth closing of the Warming Drawer.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Power Levels: Low, Med, High, Proof | Temperature Settings: 100° – 190° F | Timer: 5 min. – 5 hours | Automatic Shut Off: After 1 hour | Control Type: Illuminated Touch Control | Drawer Installs Vertically Under Thermador Speed, Steam or Wall Oven
Specifications
| Sabbath Mode | Y | Keep-Warm | Y | Indicator Light | Y |
| Bread-Proofing | Y | Height | 23.97 cm | Width | 75.57 cm |
| Depth | 62.23 cm | Weight | 24.95 kg | Class Width | 30" |
| Capacity | 2.2 cu. ft. | Power | 450 W | Installation Type | Built-In |
| Manufacturer Color | Custom Panel Ready | Color | Panel Ready | UPC# | 825225937210 |
| Warranty | Limited 2 Years Parts and Labor | ||||
| Technologies SoftClose® Hinges | |||||
| Information 120 V | 60 Hz | 15 A | |||||

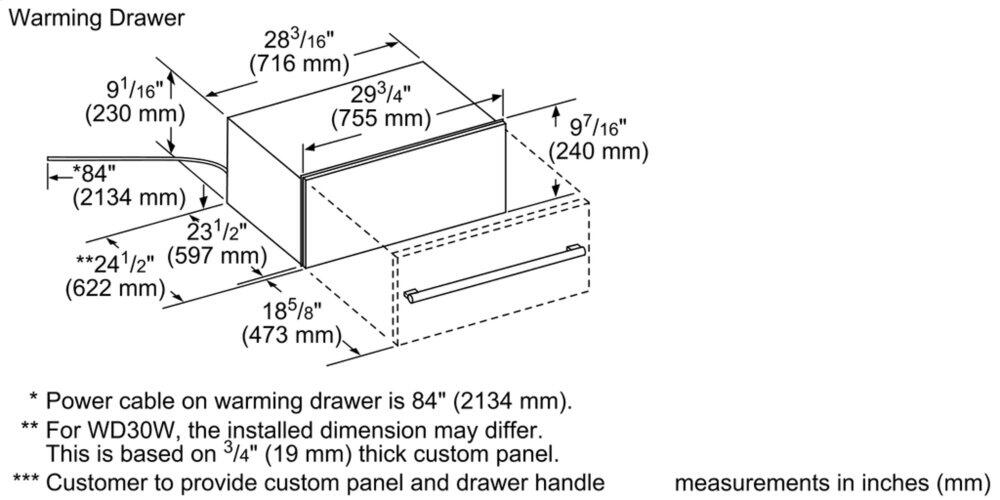

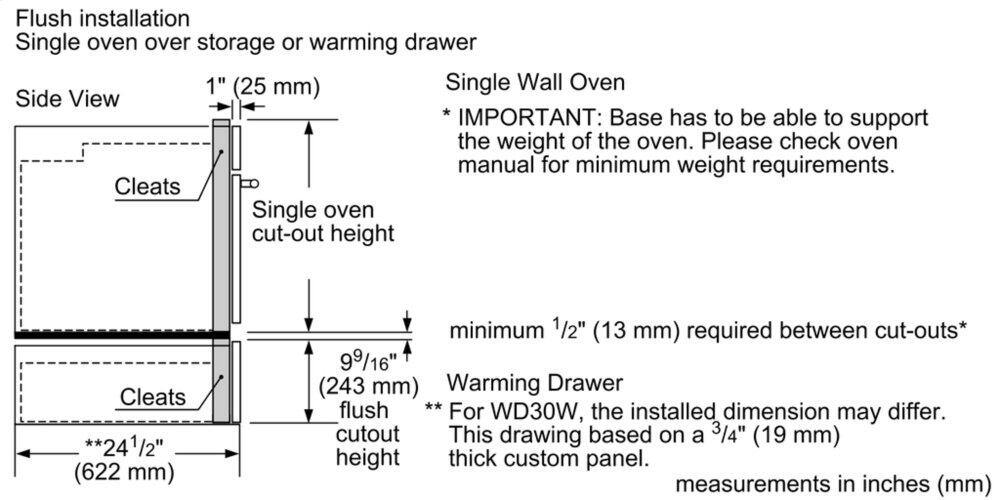

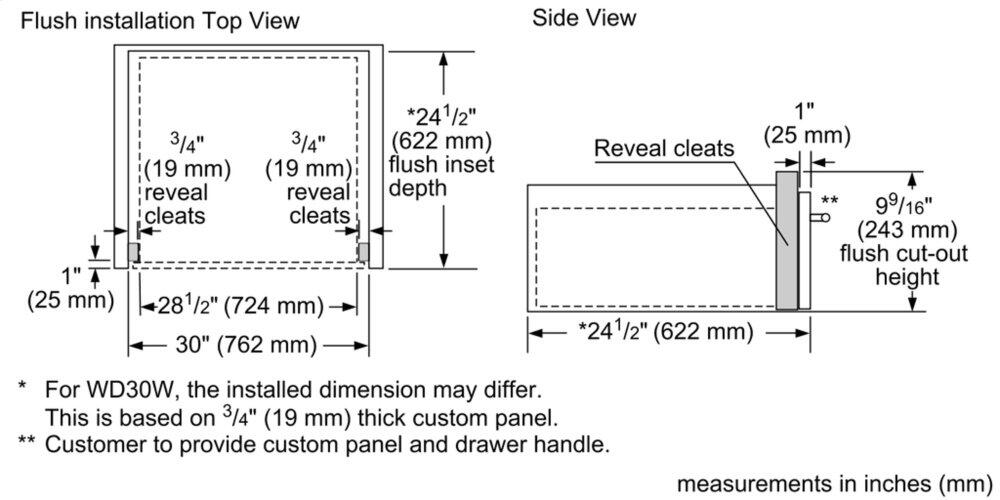

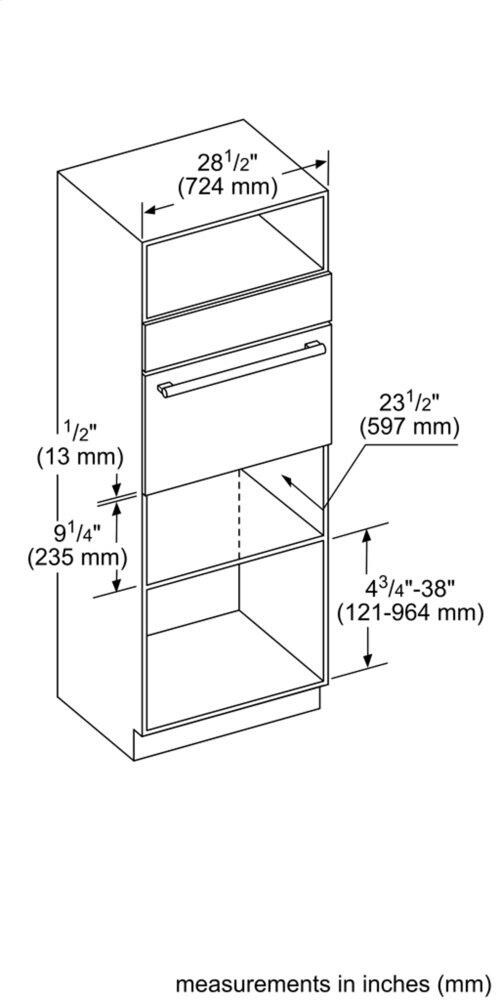

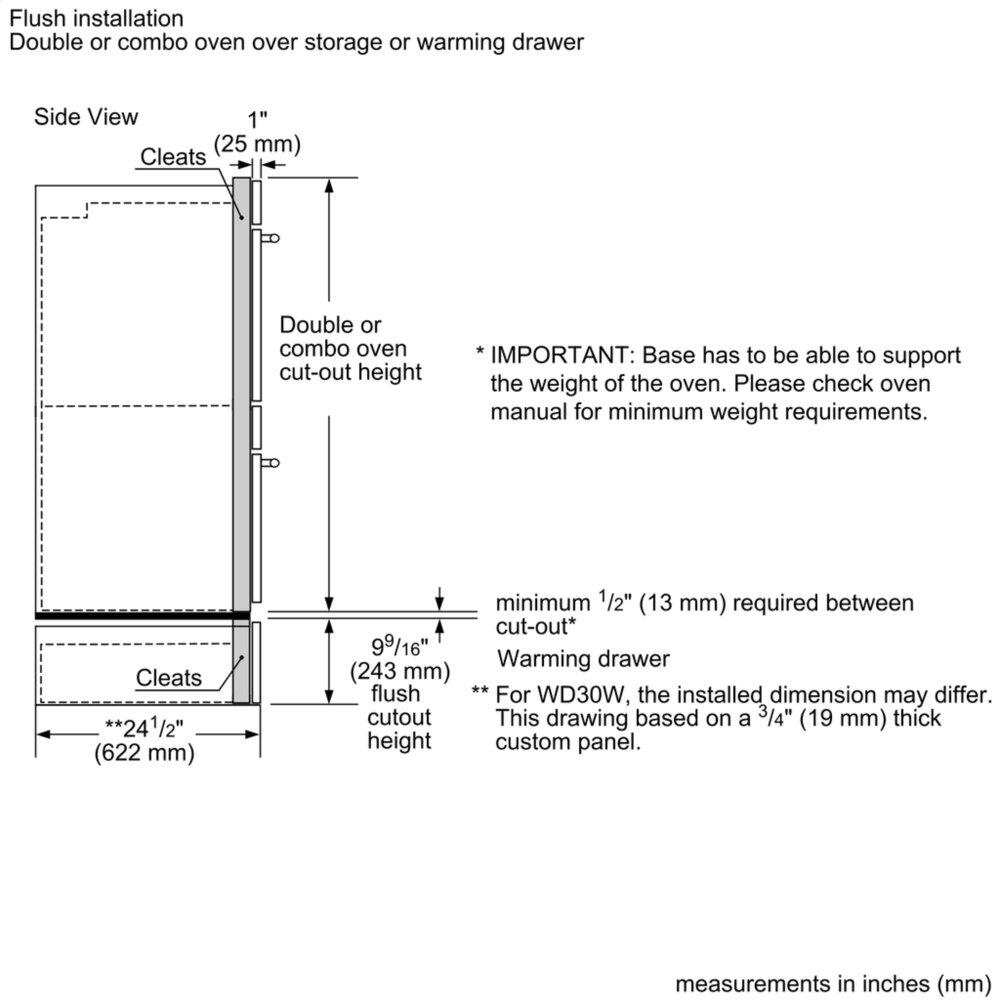

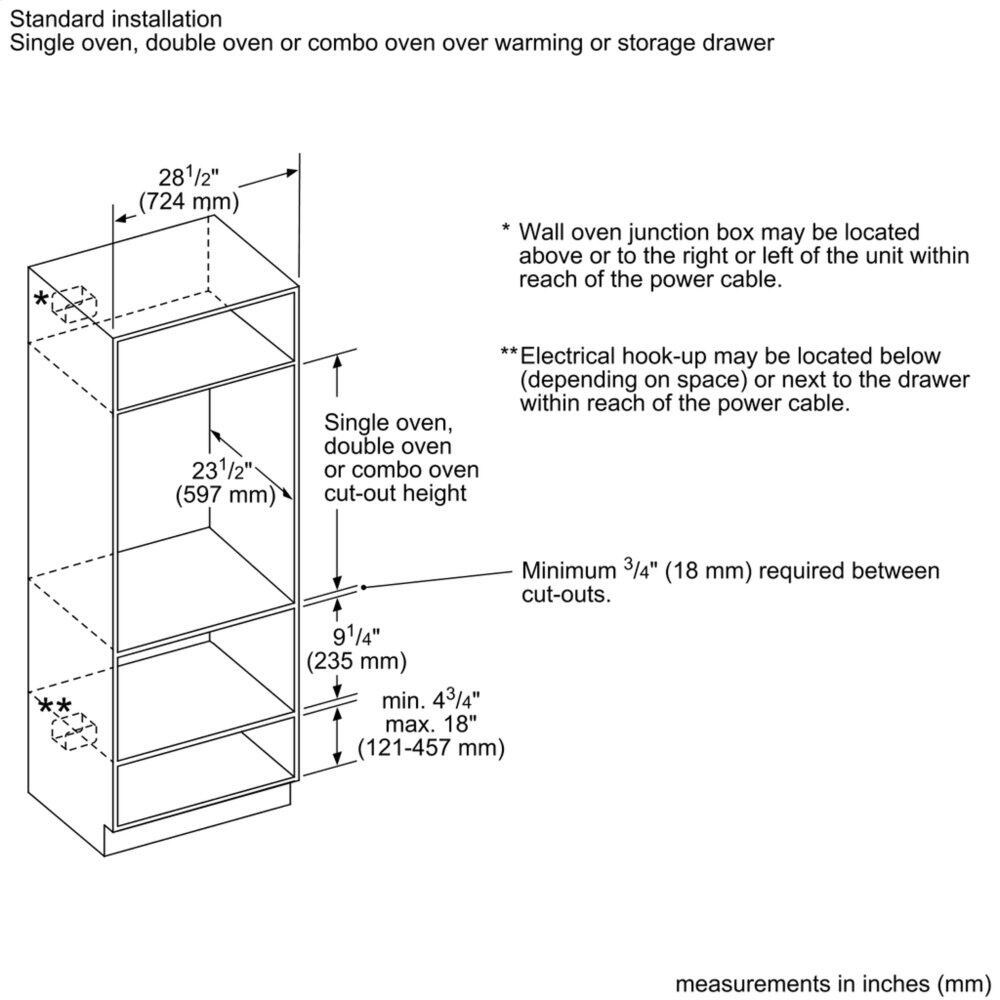

| Additional Dimensions Required Cutout Size (HxWxD) – Standard: 9 1/4" x 28 1/2" x 23 1/2" | Required Cutout Size (HxWxD) – Flush*: 9 9/16" x 30" x 24 1/2" | (*For WD30W, the installed dimensions may differ. This is based on 3/4" (19 mm) thick custom panel. Customer to provide custom panel and drawer handle) | |||||
