Description
About this Product

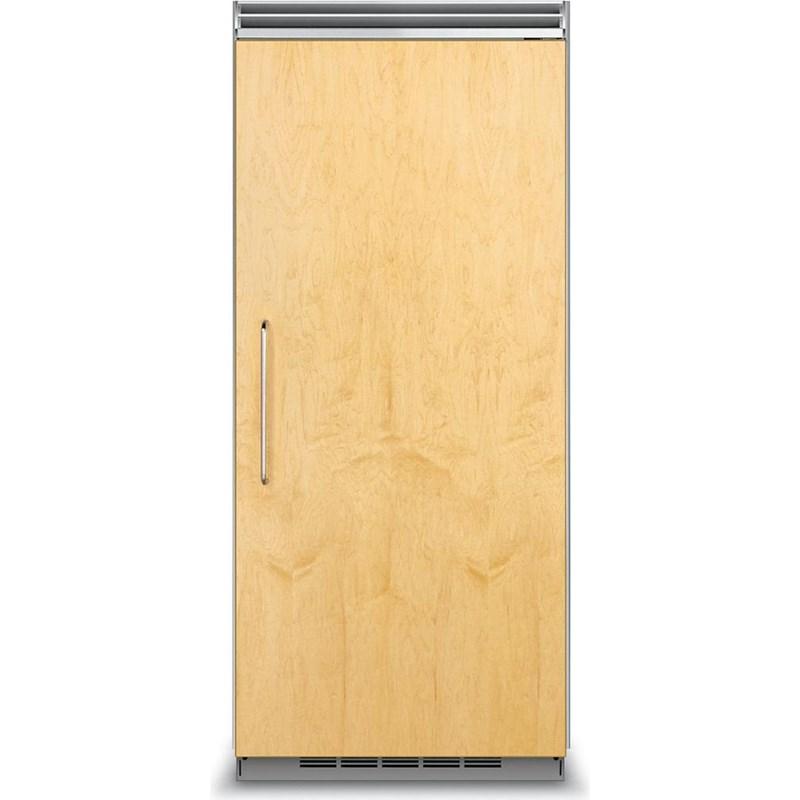

Viking 22 cu. ft. Built-in Panel-Ready All Refrigerator featuring an EXCLUSIVE Plasmacluster™ Ion Air Purifier and Variable Speed DC Overdrive™ Compressor, this refrigerator ensures superior freshness. * Panel Kit Sold Separately.
Features
- PROCHILL™ TEMPERATURE MANAGEMENT — ProChill™ Temperature Management System with variable speed DC Overdrive™ compressor. Single compressor system includes the quietest compressor available. Electronic controls provide precise temperature management with digital readout.
- MULTI-CHANNEL AIRFLOW. — Enjoy less humidity and less odor with our Multi-Channel Airflow.

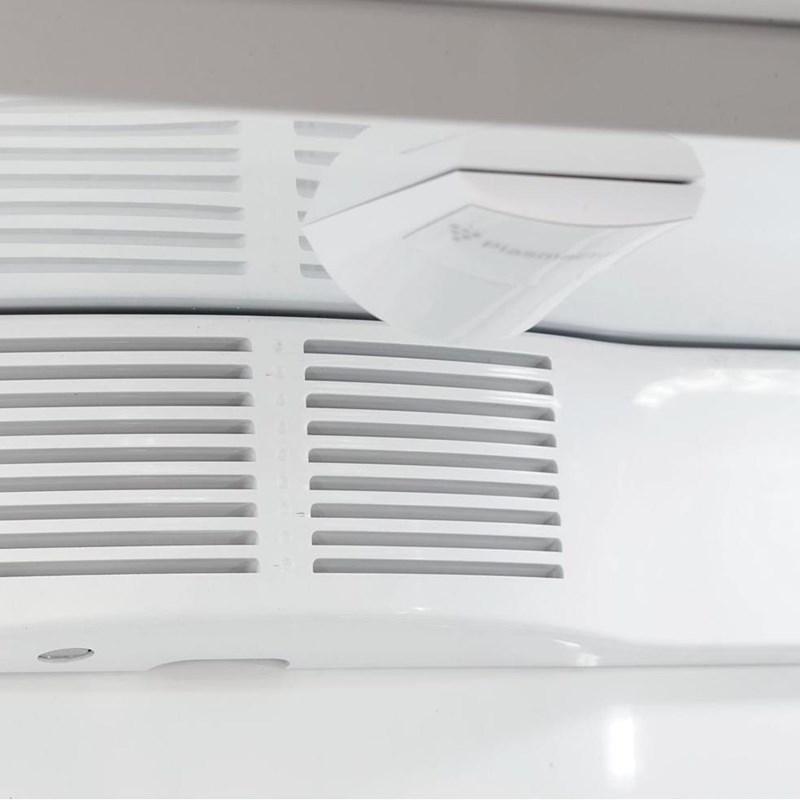

- FILTER-FREE FRESHNESS — The Plasmacluster™ Ion Air Purifier uses ions to eliminate airbourne bacteria and mold spores, remove odors and enhance food preservation. Plasmacluster™ is a trademark of Sharp Corporation.
- ADJUSTABLE HUMIDITY ZONE™ DRAWERS — Produce the freshest leafy vegetables and fruits in moisture-adjustable drawer(s) with soft-close feature.

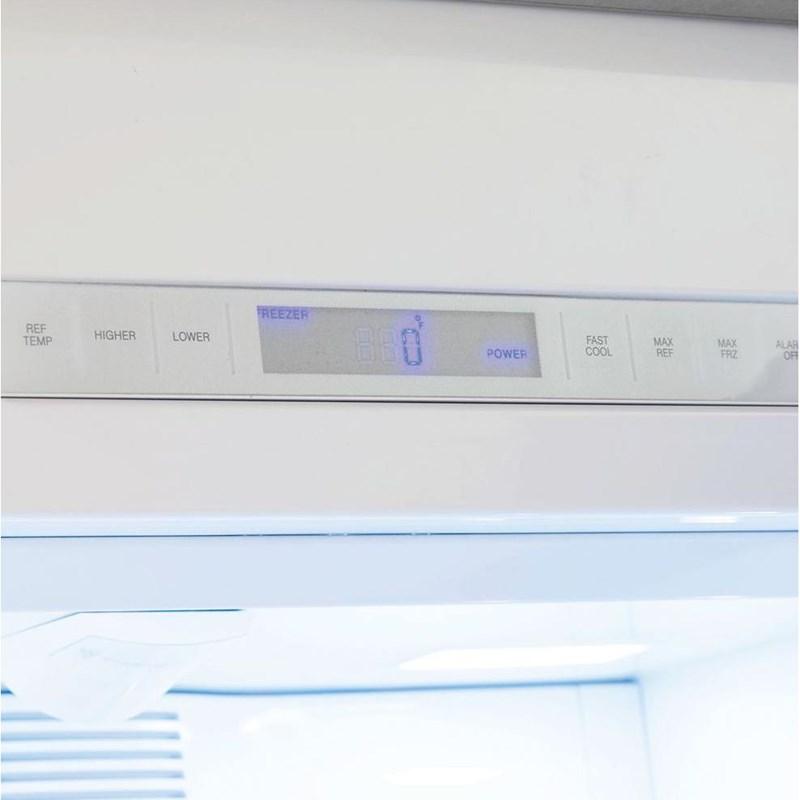

- ELECTRONIC TEMPERATURE CONTROL. — Electronic controls with digital temperature readout.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Energy Guide (en)
Specifications
| Manufacturer Color | Panel Ready | Door Hinge | Right | Color | Panel Ready |
| Series Name | 5 Series – FDRB | Installation Type | Built-In | Counter-Depth | N |
| Refrigerator Type | All Refrigerator | Interior Light | Y | Frost Free | Y |
| Digital Display | Y | Weight | 232.24 kg | Water System | None |
| Ice System | None | Overall Depth | 61.0 cm | Class Height | 70" and More |
| Class Width | 35" to 37.9" | Width | 91.5 cm | Height (With Hinge) | 210.2 cm |
| Refrigerator | 22.0 cu. ft. | Total | 22.0 cu. ft. | ||
| Technologies ProChill™ Temperature Management | Variable Speed DC Overdrive™ Compressor | Odor Eliminator™ Evaporator | Maintenance-free Super Clog Resistant™ Condenser | Plasmacluster Ion Air Purifier | Humidity Zone™ Drawers with Soft-Close Slides | |||||
| Additional Dimensions Overall Height (from bottom): 82-3/4" (210.2 cm) min. to 84-1/16" (213.5 cm) max. | Overall Depth from rear: - To front edge of side trim: 23-3/16" (58.9 cm), - To front of top grille: 24" (61.0 cm) | Cutout Width: 36" (91.5 cm) | Cutout Height: 82-7/8" (210.5 cm) min. to 84-1/16" (213.5 cm) max. | Cutout Depth: 24" (61.0 cm) min.* | *Custom panel models fit flush in 25" (63.5 cm) deep cabinet openings. They can be installed in standard | 24" (61.0 cm) deep openings. The door faces and top grille will protrude 3/4" (1.9 cm) into the room. | Maximum Panel Weight: 60 lb. (27.2 kg) | |||||
| Warranty 2-year full – covers complete unit | 6-year full – sealed refrigeration system | 90-day full – cosmetic parts such as glass, painted items, and decorative items | 12-year limited – sealed refrigeration system | |||||
| Optional | |||||
| Information 115 V | 60 Hz | 15 A | 3-wire cord with grounded 3-prong plug attached to product | Maximum Amp Usage: 6.5 amps | |||||
Accessories
• FDRB5364R – 36"W All Refrigerator – Custom Panel – right hinge
• FDRB5364L – 36"W All Refrigerator – Custom Panel – left hinge
• PHK28SS – Professional SS handle kit
• DDGK663SS – 66"W Grill Kit
• DDGK723SS – 72"W Grill Kit
• FCTKSS – Center trim kit
• FDRB5364L – 36"W All Refrigerator – Custom Panel – left hinge
• PHK28SS – Professional SS handle kit
• DDGK663SS – 66"W Grill Kit
• DDGK723SS – 72"W Grill Kit
• FCTKSS – Center trim kit
Door Hinge: Right
