Description
About this Product

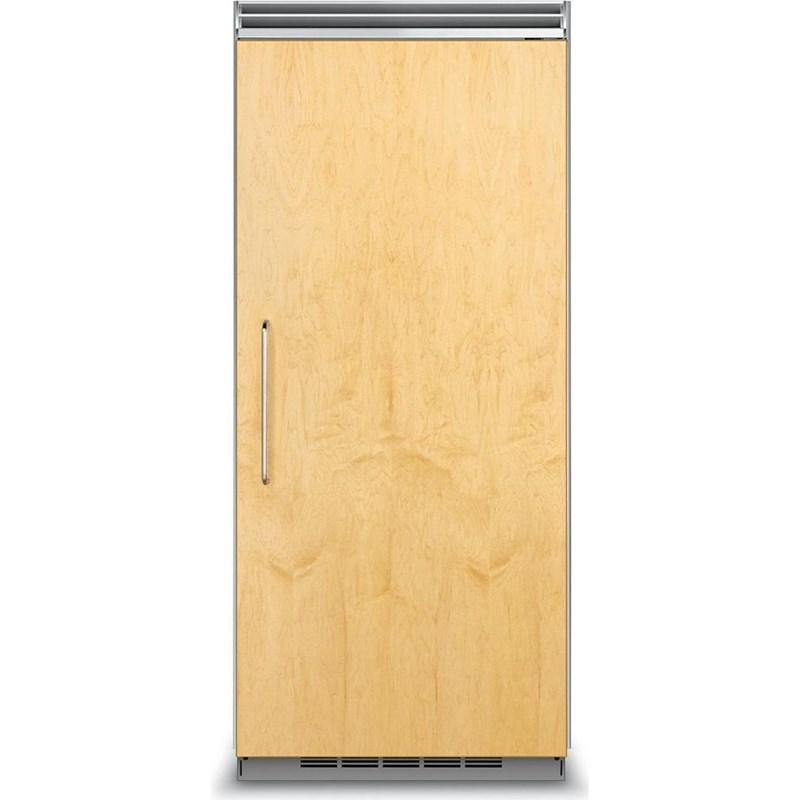

Viking 19.2 cu. ft. Custom Panel All Freezer offers LED lighting, a Variable Speed DC Overdrive™ Compressor, and a factory-installed automatic ice maker for reliable performance and sleek built-in design. *Panel Kit Sold Separately
Features
- PROCHILL™ TEMPERATURE MANAGEMENT — ProChill™ Temperature Management System with variable speed DC Overdrive™ compressor. Single compressor system includes the quietest compressor available. Electronic controls provide precise temperature management with digital readout.
- ELECTRONIC TEMPERATURE CONTROL — Electronic controls with digital temperature readout.
- MULTI-CHANNEL AIRFLOW — Enjoy less humidity and less odor with our Multi-Channel Airflow.
- ADAPTIVE DEFROST — Defrost time adjusts to the usage of the freezer and extends up to 96 hours.

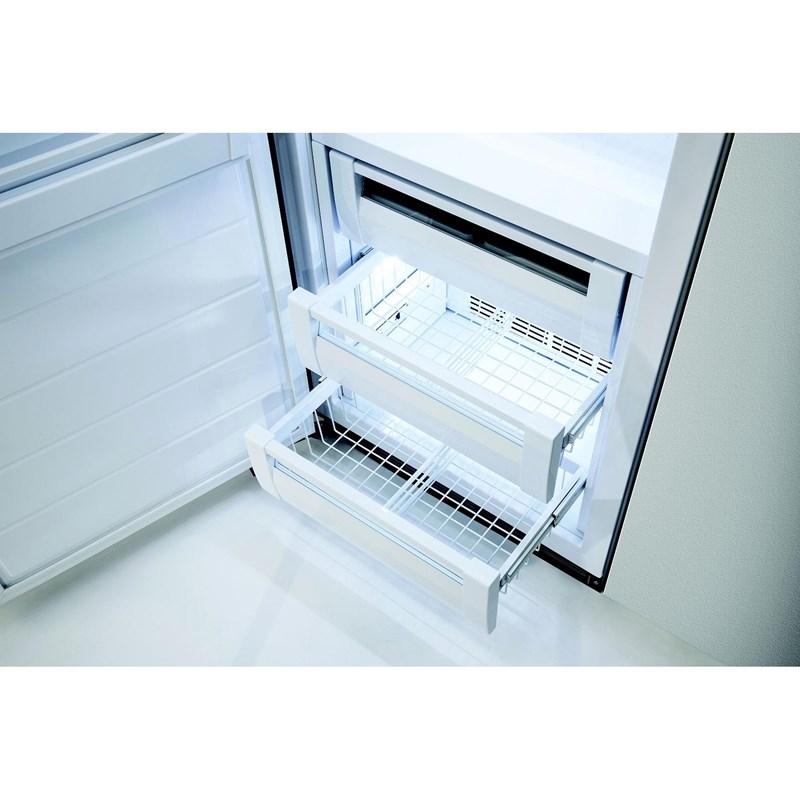

- TWO WIRE BASKETS WITH DIVIDERS — Frozen storage comes to you with our two slide-out, full-width wire baskets with adjustable dividers.

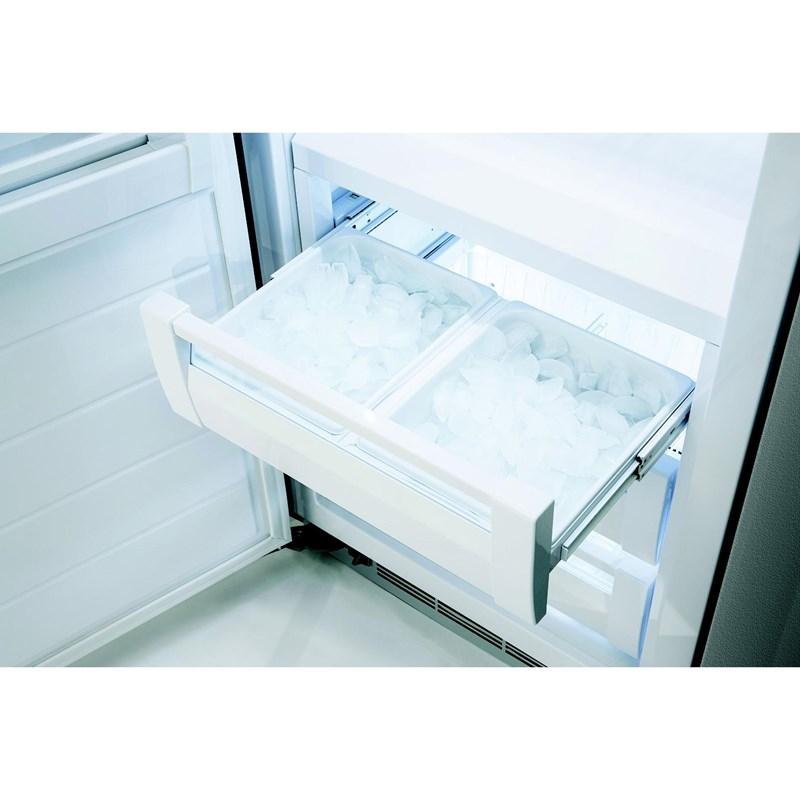

- TWO SEPARATE ICE BINS — Have twice the ice or extra frozen storage with Viking's two separate ice pans.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Energy Guide (en)
Highlights
Variable Speed DC Overdrive™ Compressor is one of the quietest, most technologically advanced compressors available | Electronic controls maintain even temperatures within one degree °F to keep food fresher longer | Multi-channel airflow system and Odor Eliminator™ Evaporator removes odors and excess humidity | Maintenance-free Super Clog Resistant™ Condenser provides expense-free peace of mind | Adaptive defrost on All Freezer models controls the timing of the defrost periods, instead of an electromechanical defrost timer | All items are in clear view with bright energy-efficient LED lighting from top and sidewalls | Ramp-on theater lighting provides better visibility | Adjustable full-width wire shelves, one full-width metal shelf, and two full-width slide-out wire baskets with tempered glass fronts allow for increased storage options | Adjustable metal door bins securely store heavy items | Full-extension precision ball-bearing slides on all baskets and drawers allow drawers to easily glide open and close for access
Specifications
| Lighting | Y | Digital Temperature Display | Y | Defrost System / Frost Free | Y |
| Series Name | 5 Series – FDFB | Color | Panel Ready | Door Hinge | Right |
| Style | Built-In | Total Capacity | 19.2 cu. ft. | Size Range | 19 Cu.Ft. - 20 Cu.Ft. |
| Type | Upright | Manufacturer Color | Panel Ready | Ice Machine | Y |
| Additional Ice and Water Information | Factory-installed automatic ice maker with full-width large-capacity ice drawer includes two separate ice pans for maximum ice production and storage | Width | 91.5 cm | Height (With Hinge) | 210.2 cm |
| Depth (Without Handles) | 61.0 cm | Weight | 247.66 kg | ||
| Technologies ProChill Temperature Management System | Variable Speed DC Overdrive™ Compressor | Odor Eliminator™ Evaporator | Multi-Channel Airflow System | Maintenance-Free Super Clog Resistant™ Condenser | |||||
| Warranty 2-year full – covers complete unit | 6-year full – sealed refrigeration system | 12-year limited – sealed refrigeration system | |||||
| Additional Dimensions Overall Height (from bottom): 82-3/4" (210.2 cm) min. to 84-1/16" (213.5 cm) max. | Overall Depth from rear: - To front edge of side trim: 23-3/16" (58.9 cm), - To front of top grille: 24" (61.0 cm) | Cutout Width: 36" (91.5 cm) | Cutout Height: 82-7/8" (210.5 cm) min. to 84-1/16" (213.5 cm) max. | Cutout Depth: 24" (61.0 cm) min.* | *Custom panel models fit flush in 25" (63.5 cm) deep cabinet openings. They can be installed in standard | 24" (61.0 cm) deep openings. The door faces and top grille will protrude 3/4" (1.9 cm) into the room | Maximum Panel Weight: 60 lb. (27.2 kg) | |||||
| Optional | |||||
| Information 115 V | 60 Hz | 15 A | 3-wire cord with grounded 3-prong plug attached to product | Maximum Amp Usage: 9.5 amps V | |||||
Accessories
• FDFB5364L – 36"W. All Freezer – Custom Panel – left hinge
• PHK28SS – Professional SS handle kit
• DDGK663SS – 66"W. Grill Kit
• DDGK723SS – 72"W. Grill Kit
• FCTKSS – Center trim kit
Door Hinge: Right
