Description
About this Product

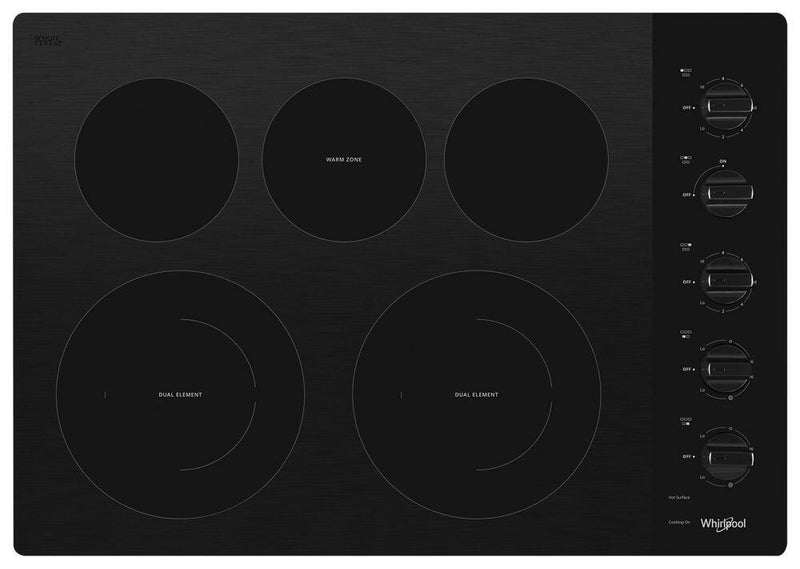

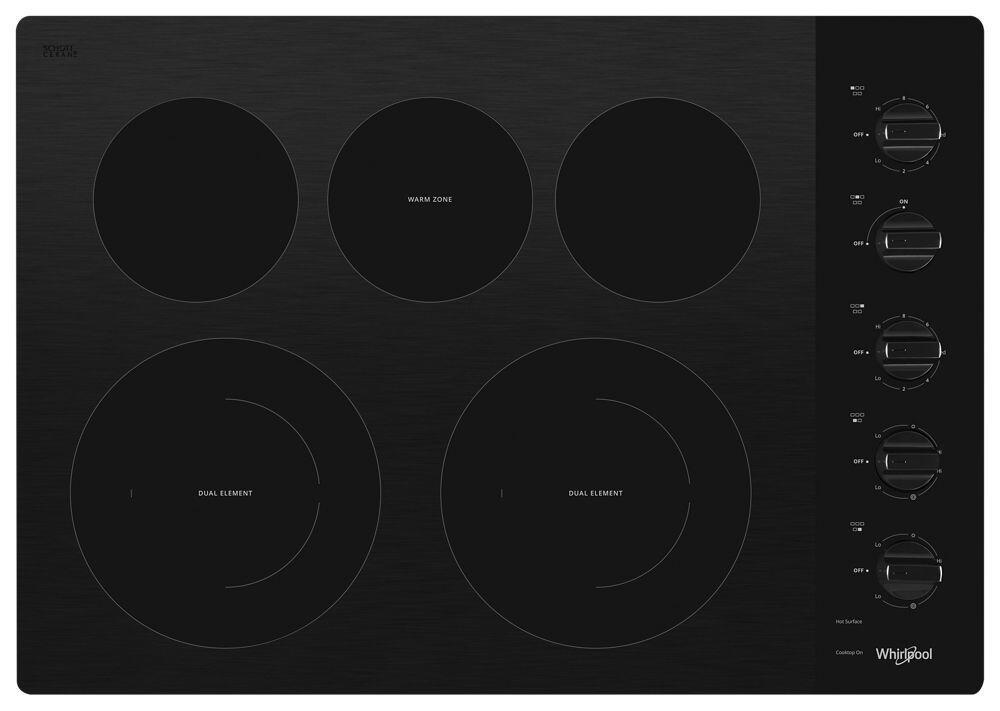

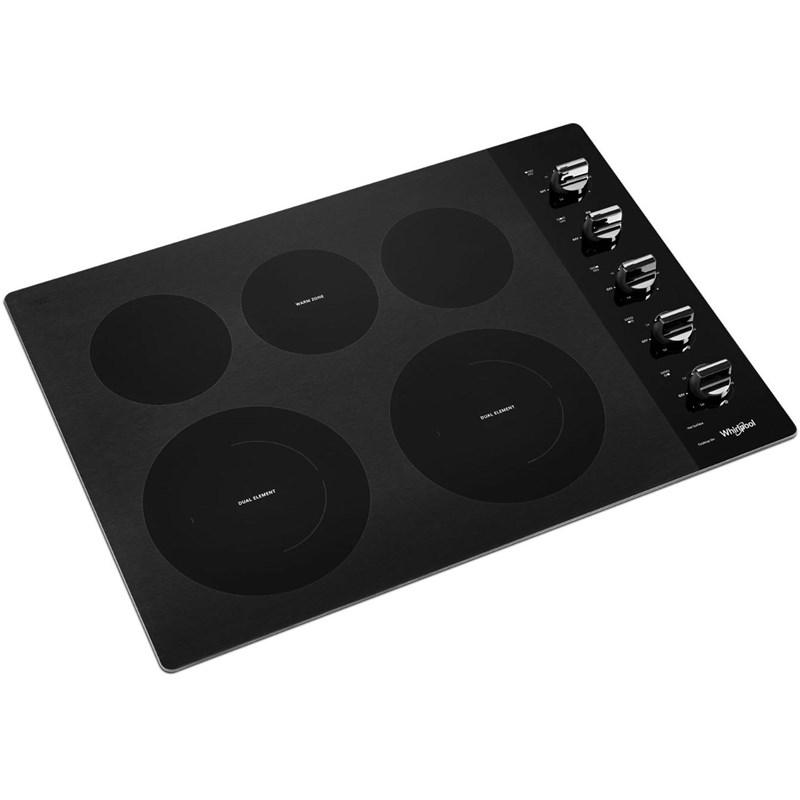

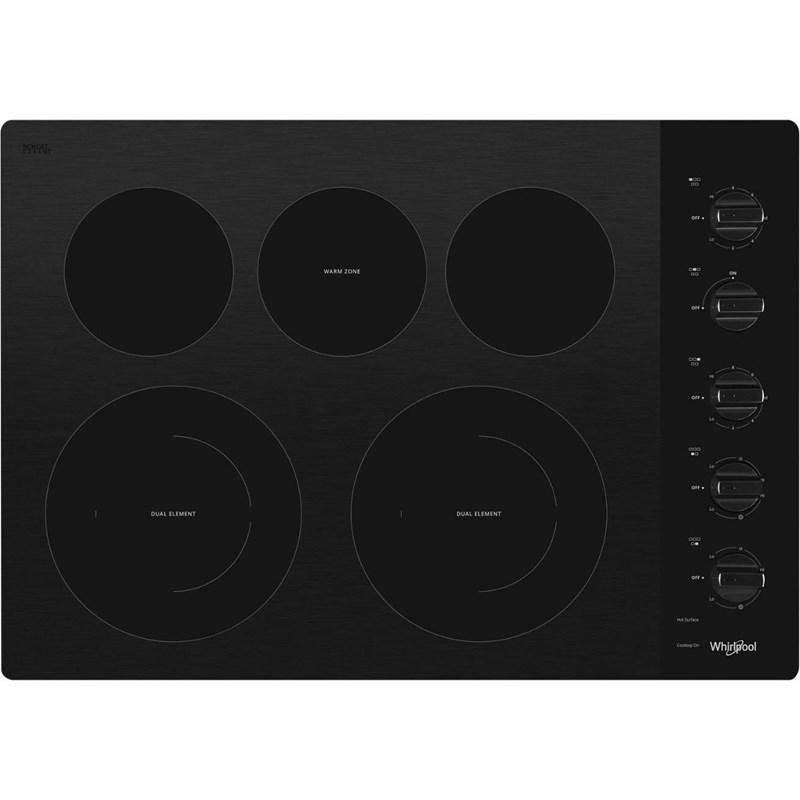

Cook all your family’s favorites at once and clean up quick with a 5-burner cooktop designed to make the most of your mealtime routine. Two FlexHeat™ Dual Radiant Elements give you more flexibility and the Warm Zone Element keeps food warm while you’re finishing the rest of the meal. Then, easily wipe messes off the ceramic glass surface.
Features
- FLEXHEAT™ DUAL RADIANT ELEMENT — Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
- EASY-WIPE CERAMIC GLASS COOKTOP — The ceramic glass cooktop provides an ideal space for cooking and easy cleanup.
- WARM ZONE ELEMENT — Keep food warm while you're finishing the rest of the meal using this low-powered element.

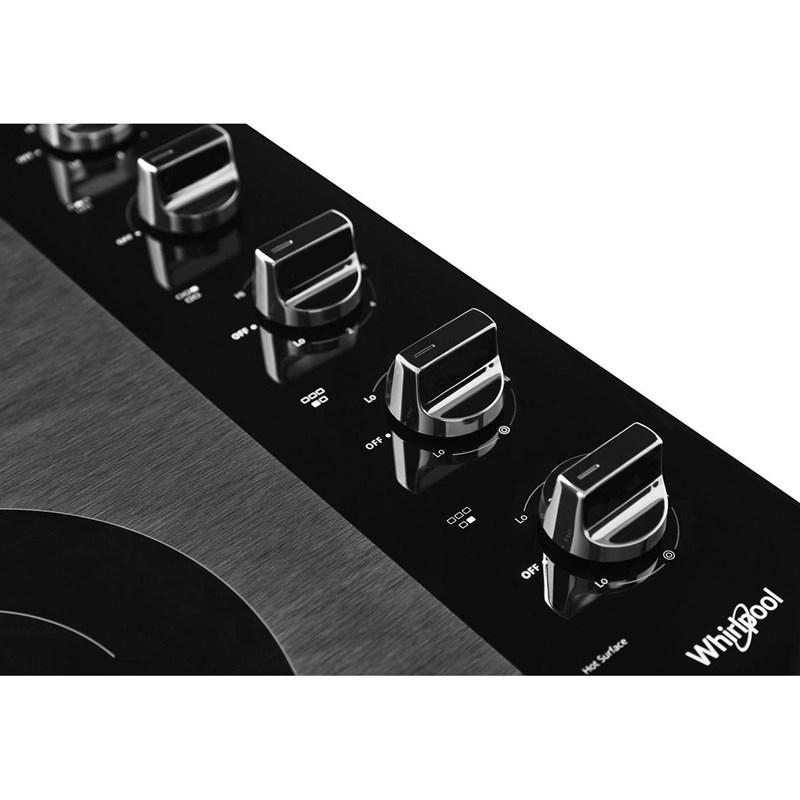

- DISHWASHER-SAFE KNOBS — Whirlpool's cooktops feature easy-to-clean knobs that are dishwasher-safe to keep your cooktop looking like new.
- HOT SURFACE INDICATOR LIGHT — A hot surface indicator light illuminates when the cooktop surface is still hot to the touch even after the heating element has been turned off.

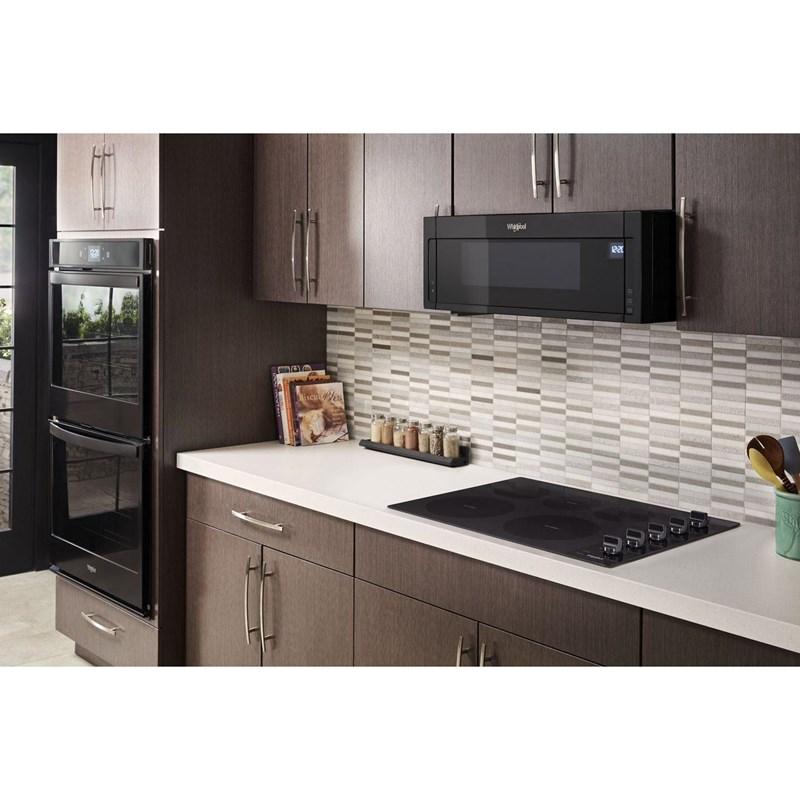

- WALL OVEN COMPATIBLE — Install this cooktop to work with a wall oven or on its own for added flexibility.* *See Oven/Cooktop Compatibility in specifications for more information.
Documents
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Videos
WCE77US0HB WCE77US0HB WCE77US0HB
Highlights
Infinite heat controls | Heating element on indicator light | Hot surface indicator light | Warm zone element | Dishwasher-safe knobs | Wall oven compatible: can be installed over built-in oven
Specifications
| Surface Features | Easy-Wipe ceramic glass cooktop | Elements | Smoothtop | Burners/Elements | 5 |
| Wi-Fi | N | Downdraft Ventilation | N | Height | 13.34 cm |
| Width | 78.26 cm | Class Width | 30" | Weight | 18.6 kg |
| Depth | 55.25 cm | Type | Built-In | Fuel Type | Electric |
| Manufacturer Color | Black | Color | Black | ADA Compliant | Y |
| Warranty | Limited 1 Year Parts and Labor | UPC# | 883049472706 | ||
| Burner/Element Size Left rear: 6" | Right rear: 6" | Center rear: 6" (Warming) | Left front: 6" / 10" (Dual) | Right front: 6" / 10" (Dual) | |||||
| Power Output Left front: 3000W/1900W | Left rear: 1200W | Center rear: 100W | Right front: 3000W/1900W | Right rear: 1200W | |||||
| Technologies FlexHeat™ dual radiant element | |||||
| Information 208/240 V | 40 A | 60 Hz | |||||
| Additional Dimensions Cutout Depth: 20-3/8" | Cutout Width: 29-1/16" | |||||
| Optional Power cord not included | |||||
Accessories
Power cord not included
